Specifications
1. block brick making machine;2. ISO Certificate;
3. Good reputation;
4. Excellent quality & price;
5. Swift service.
QTJ5-20 block brick making machine , Your best tools go to Success and Prosperity!
1.Characteristics :
1 |
Full mechanical transmission with feature of compact structure and reasonable design, stable running, lower malfunction rate, easy operation and maintenance; |
2 |
Adopt Japan Mitsubishi PLC program control, produce the cement brick automatically, Electrical parts ate provided by the famous brand manufacturer, the operation is more safety and reliable; |
3 |
The main making machine utilize the pressing and high frequency vibration to mold the brick, the finished product is more dense and solid; |
4 |
The high speed arch breaking device can consumedly shorten the material distributing time |
5 |
By changing difference mould, the block making machine can produce either load-bearing brick or non-load-bearing brick, and multitude shape wall brick; |
6 |
Machine frame adopt super strong profile steel to weld to provide the stability and reliability intervening the long working life |
2.The Detail of QTJ5-20 block brick making machine
3.Main Specification of QTJ5-20 block brick making machine :
Outside Dimension (mm) |
3400x2040x4300 |
Operation Cycle (s) |
20~25 |
Main Machine Weight (Ton) |
8 |
Vibration Frequency (rpm) |
4300 |
Power Consumption (Kw) |
44 |
Vibration Force (Kn) |
55 |
Pallet Dimension (mm) |
1050x550x30 |
Vibration Power (kW) |
15 |
Operator quantity |
4 people |
Land required |
3500M2 |
4. Main Productivity of QTJ5-20 block brick making machine :
Brick Size |
Blocks/Mould |
Blocks/Hour |
Blocks/Shift |
Remark |
Hollow Brick (400x200x200mm) |
4 |
580~720 |
4,600~5,700 |
|
Hollow Brick (400x150x200mm) |
6 |
860~1,080 |
6,900~8,600 |
|
Hollow Brick (400x100x200mm) |
9 |
1,300~1,620 |
10,400~13,000 |
|
Hollow Brick (390x190x190mm) |
5 |
720~900 |
5800~7,200 |
|
Porous Brick (240x115x90mm) |
16 |
2,300~2,880 |
18,400~23,000 |
|
Remark: The production capacity data are theoretical and are dependent on machine settings, mix design, aggregates used and other environmental conditions.

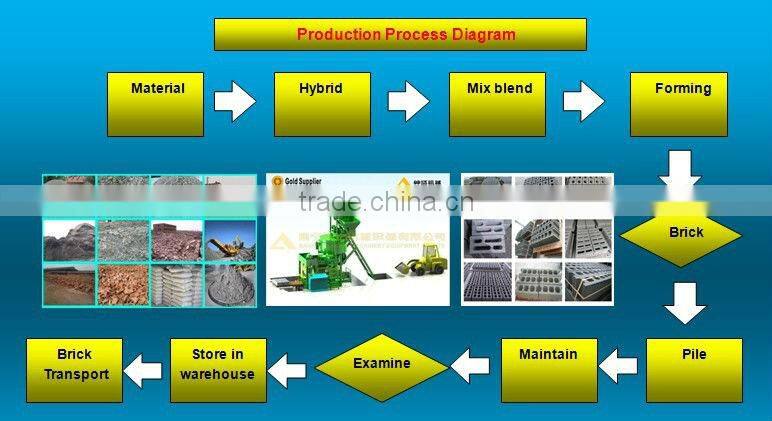

5.Production Line Layout and production Process Diagram:
6. Brick Raw Material
MU10.0 Strength Brick Material Rate:
1.Cement-12%; 2. Fine Stone Powder or Fine Sand-40%; 3. Crushed Stone (<8mm)-40%; 4. Fly Ash or Additive-8%
7. Brick Sample:
Shenta machine can produce: various types of concrete brick and block, cement brick and block, standard bricks,perforated bricks and paving bricks, solid/hollow/cellular masonry brick and block, paving stones with or without face mix, garden and landscaping products. slab, edger, kerbstone, grass blocks, solpe blocks, interlocking blocks. These products are of good quality, high compression strength and accurate dimension. Besides,more kinds can be produced such as paving bricks, color grassland bricks and curb bricks if the second raw materials feeding system is added to the line. Widely used in building, road paving, squares, gardens, landscaping. city constructions etc.
8.Our Customer's Brick Factory:
9.Exhibition of Shentamachine:
10. About SHENTA Machine:
Shenta Machinery Equipment Co.,Ltd. (short for Shenta machine), we are specialized in concrete brick and block making machine in China, as the most earliest and professional in cement brick and block making machine since1973, we can offer you the brick & block making machine and production line with reliable quality, professional technology, and sincere service. We have exported to Southeast asia, Africa, and Ocenaia, etc.
11.Our Advantages
→ We are brick and block making machine manufacturer with 40 years professional experience.
→ We can offer large scale, millde scale and small scale brick and block making machine.
→ We have more than 40,000 square meters production area with over 200 workers.
→ Welcome to visit Shenta factory.
Welcome Contact Maky (Skype: Shenta_maky, Mobile: +86.13788113588) for more information
and specification of the QTJ5-20 block brick making machine
