Specifications
Block making machine suppliersMax. Productivity 70,000 bricks/day
Good reputation
Excellent quality
Swift service

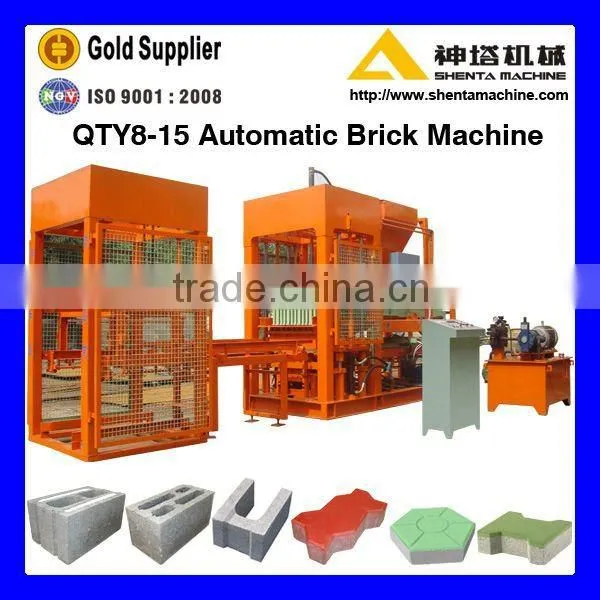

QTY8-15 block making machine suppliers , your successful & prosperous partner!
1.Characteristic:
- Adopt Taiwan import PLC controller, HMI operates and brick produce are full automatic, has the function of automatic reset, lack material and lack pallet alarm, the operations are more humanity, the electric parts are provided by well-known company to ensure the safety and stable performance, the malfunction rate is more lower.
- The main machine utilized the advanced pressure and vibration technology to form the block, the strength and density of brick is higher.
- The hydraulic system parts adopt high quality production import from Taiwan or Japan, the working life is longer.
- Swift speed arch breaking device can consumedly shorten the concrete material distributing time.
- The control system has the data setting device, the distributing time and vibration time is resettable to meet various material.
- Adopt the four guide pillar and super long-life wearable materials to ensure the high precision press of forming mould and press head.
- Multi-purpose and strong adaptability, change different mould can produce various wall brick, porous brick, color paver brick, grass brick and shielding-slope brick.
- Super strong welded profile steel frame structure provides the long term stable and reliable operation.

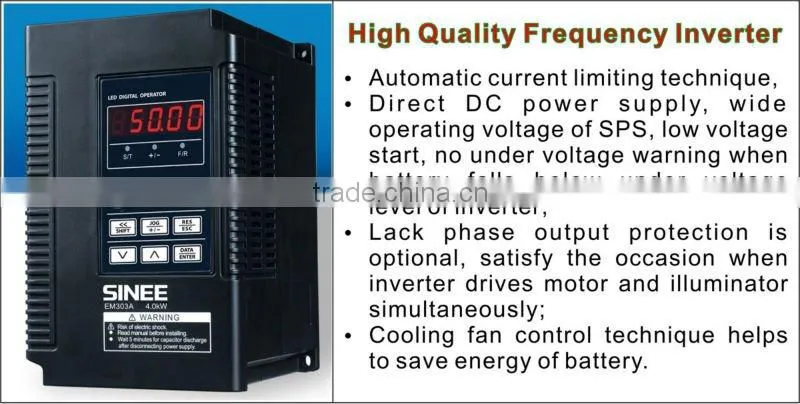

- The high quality frequency converter can protect the electric motor and extend the working life, as well as reduce the power consumption.
2.Main Specification:
Outside Dimension (mm) |
5200x1900x2800 |
Operation Cycle (s) |
15 - 25 |
Main Machine Weight (T) |
9 |
Vibration Frequency (Hz) |
0 - 60 |
Power Capacity (Kw) |
44 | Exciting Force (kN) | 100 |
Pallet Dimension (mm) |
900*900*25 | Vibration Power (Kw) |
25 |
Molding Method |
Automatic charging, vibrating & pressing | Control Mode |
Full Automatic PLC Control |
3.Theoretical Productivity:
Brick Size |
Blocks/Mould |
Blocks/Hour |
Blocks/Shift |
Remark |
Hollow Brick (390x190x190mm) |
08 | 1,920 | 15,360 | |
|
Porous Brick (240x115x90mm) |
18 | 4,320 | 34,560 | |
|
Pavers Brick
(200x100x60mm)
|
21 | 5,040 | 40,320 | |
|
Solid Brick (240x53x115mm) |
36 | 8,640 | 69,120 | |

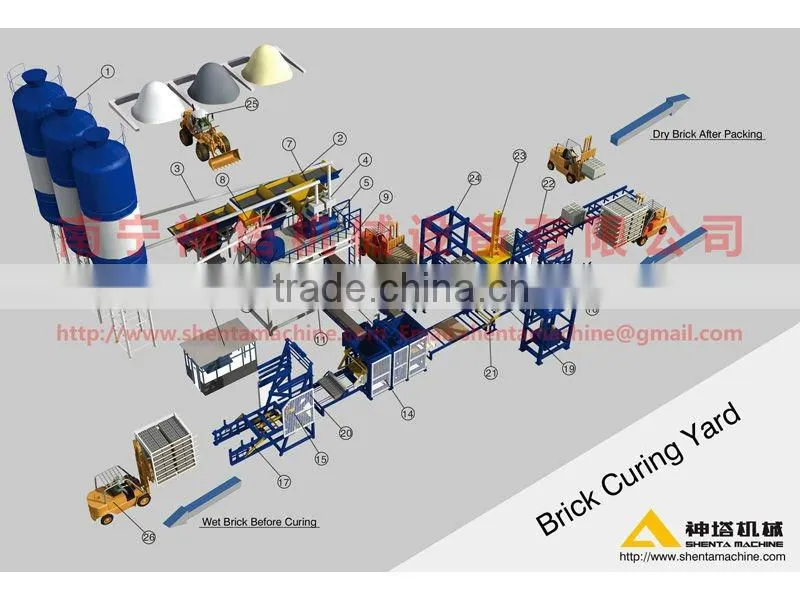

4.Full automatic production line layout:
5.Equipment Name:
1 |
Cement Silo |
2 |
Aggregate Batcher |
3 |
Cement Screw Conveyor |
4 |
Cement Scale |
5 |
Concrete Mixer |
6 |
Pigment Mixer |
7 |
Aggregate Hopper |
8 |
Pigment Hopper |
9 |
Mixing Platform |
10 |
Concrete Belt Conveyor |
11 |
Pigment Belt Conveyor |
12 |
Block Making Machine |
13 |
Control Room |
14 |
Facemix Device |
15 |
Brick Lifter |
16 |
Brick Lowerator |
17 |
Brick Discharge Table |
18 |
Cured Brick Table |
19 |
Cured Brick Conveyor |
20 |
Brick Stacker |
21 |
Pallet Turnover |
22 |
Packing Brick Conveyor |
23 |
Brick Cuber |
24 |
Tray Bin |
25 |
Wheel Loader |
26 |
Forklift |
|
|
|
|

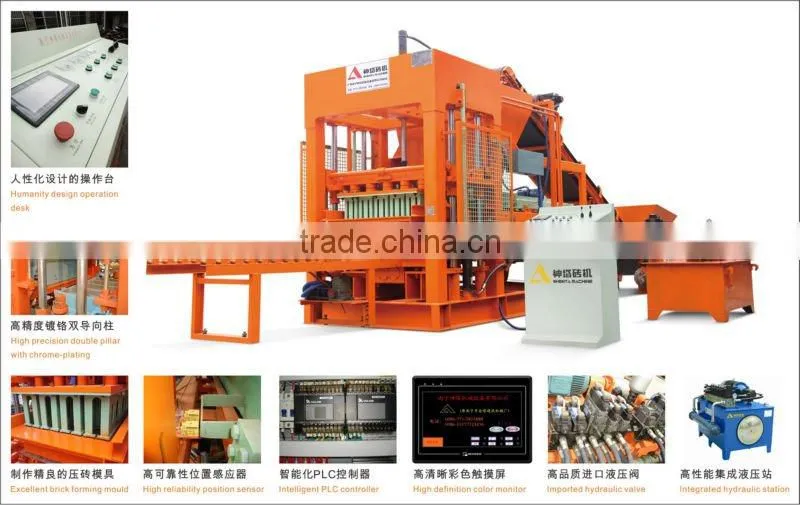

6.Advantage:

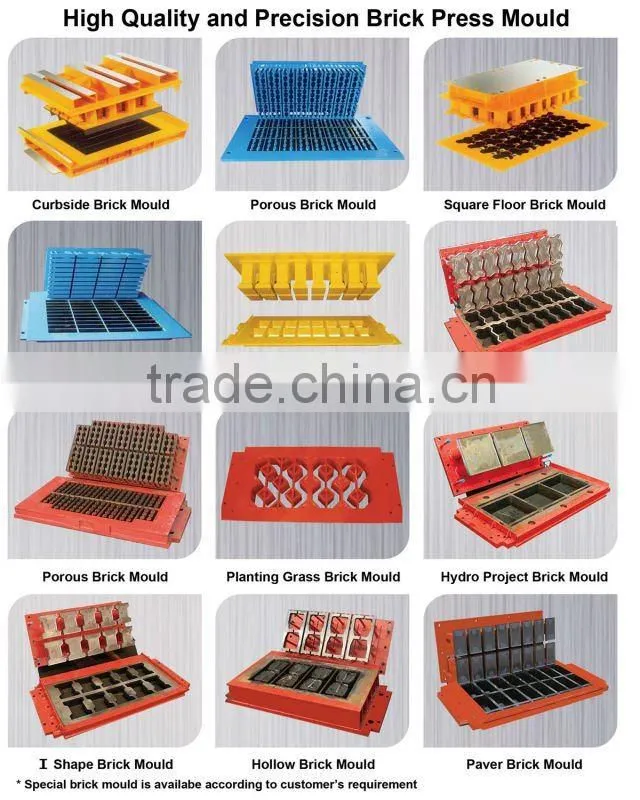

7.Brick Press Mould:

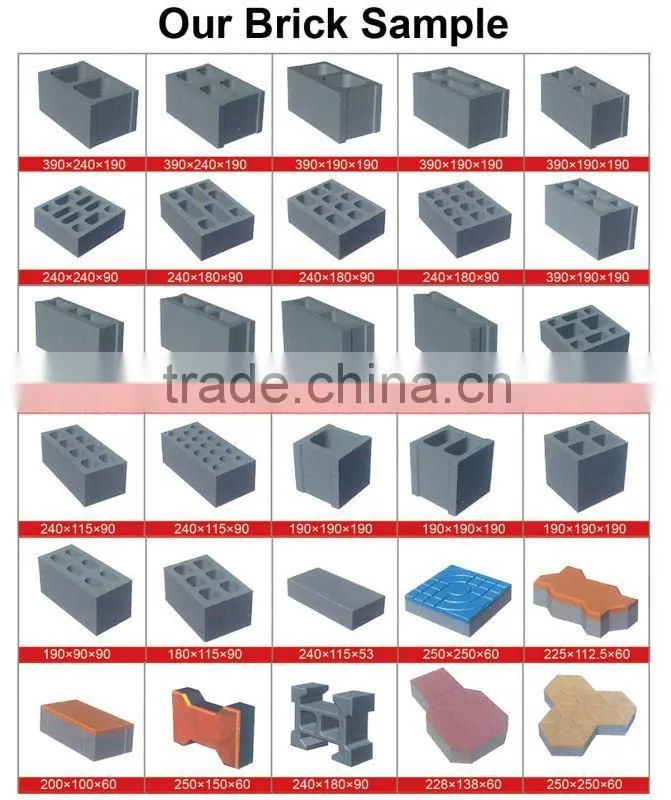

8.Brick Model:
9.Our Customer's Brick Factory:

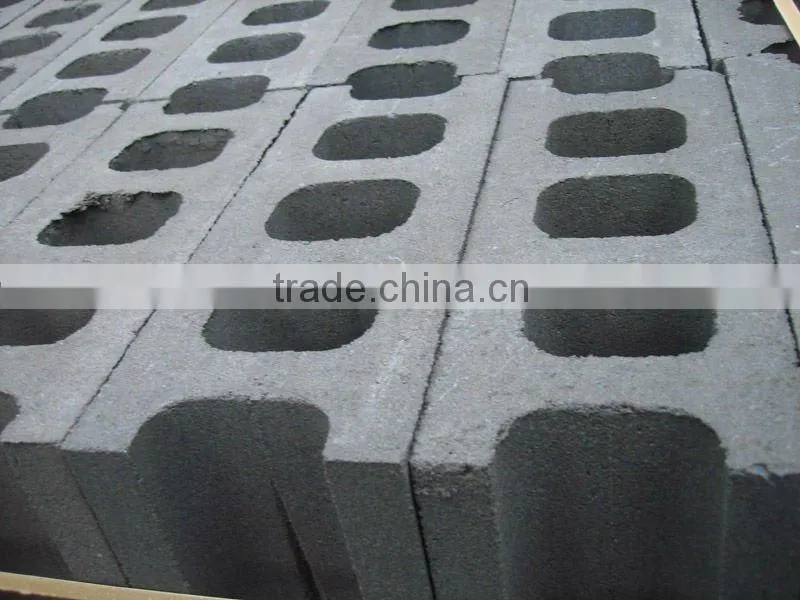

10.Brick Production:

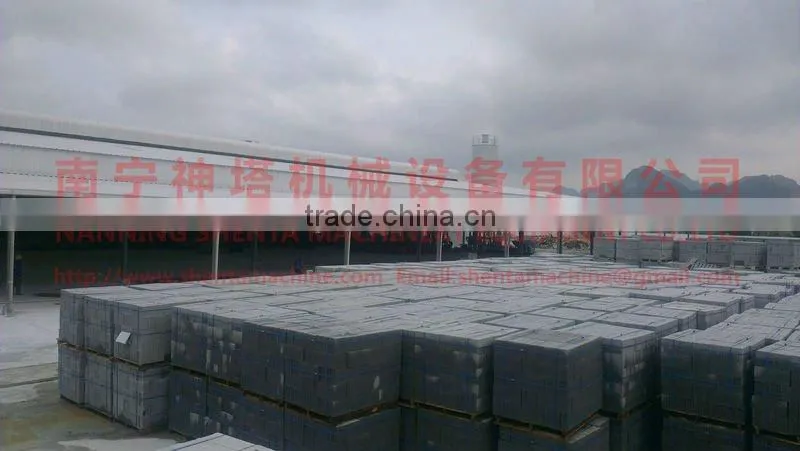

Brick of Our Customer Production (After Water Curing)

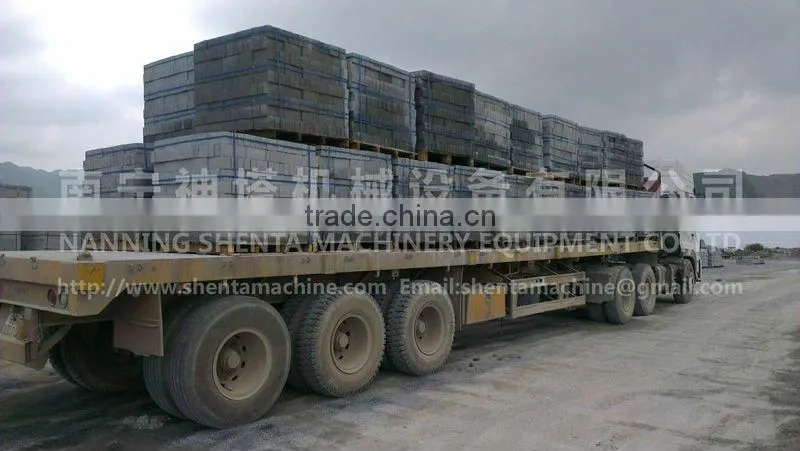

Brick of Our Customer Production (Truck Transit)
11.Exhibition of Shentamachine:

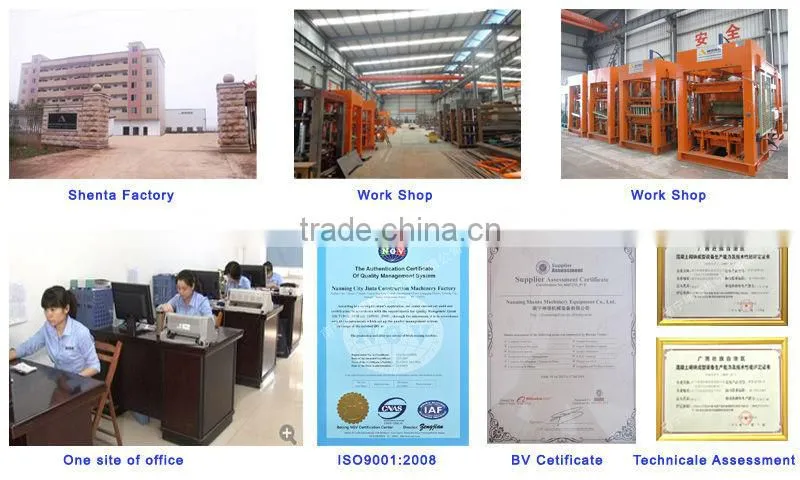

12. About SHENTA Machine:
Shenta Machinery Equipment Co.,Ltd. (short for Shenta machine), we are specialized in concrete brick and block making machine in China, as the most earliest and professional in cement brick and block making machine since1973, we can offer you the brick & block making machine and production line with reliable quality, professional technology, and sincere service. We have exported to Southeast asia, Africa, and Ocenaia, etc.
Welcome Contact Maky (Skype: Shenta_maky, Mobile: +86.13788113588) for more information
and specification of the QTY8-15 block making machine suppliers
