SHENTA QTY6-15 automatic interlocking brick machine price
- 100 Set / Sets per Month
- Fangchenggang Shenzhen Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- Full Automatic Building Construction Material Brick Machine
- QTY5-15 most profitable products intelligent competitive price block machine
- QTY5-15 automatic intelligent brick making machine
- Automatic concrete building construction tools and equipment
- Fully automatic concrete building hollow block machine
- Fully automatic construction machine concrete burning-free brick machine
Product Details
Condition: | New | Type: | Interlock Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Molding Machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 11520 pieces per day | Place of Origin: | Guangxi, China | Brand Name: | SHENTA MACHINE |
Model Number: | QTY6-15 | Voltage: | 3phase, 380V/50Hz | Power: | 44kw |
Dimension(L*W*H): | 4`100x2200x3000mm | Certification: | SGS, CE, BV, IAF, ISO9001 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard packing
Product Description

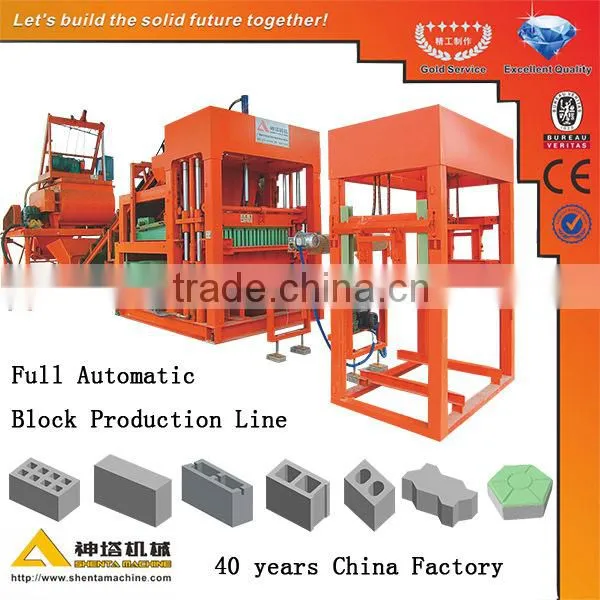

SHENTA QTY6-15 full automatic interlocking brick machine price
Specifications of QTY6-15 interlocking brick machine
Operation Cycle(s) | 20-25 |
Vibration Force (Kn)
| 55 |
Brick Height(mm) | 60~200 | MainPower Capacity(Kw) | 44 |
Vibration Frequency (rpm) | 4300 |
Pallet Dimension (mm)
|
1050x550x30
|
Net Weight (Ton) | 8 | Main Machine Dimension(mm) | 5600*3000*4300 |
Power Source | 3Phase, 380V/50Hz (Special voltage & frequency is available according to your local power source.) |

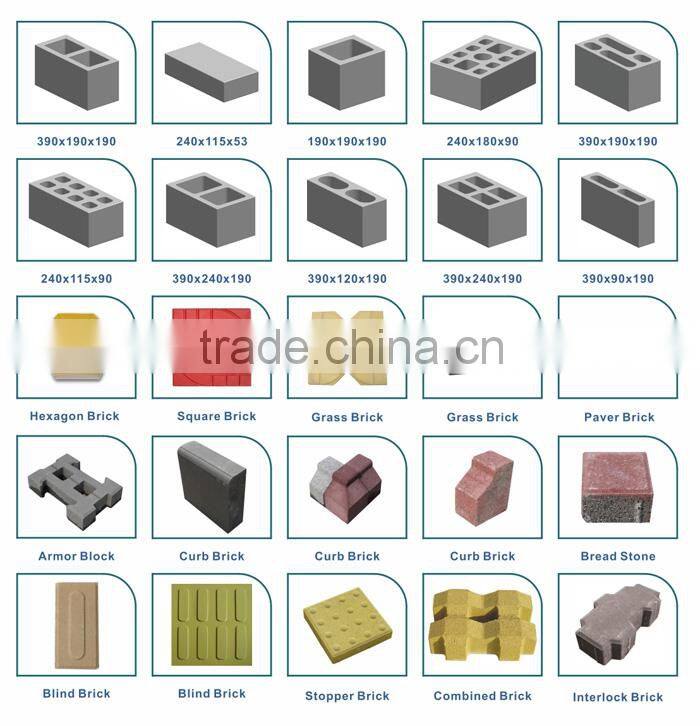

Brick Type | Dimension | Blocks/Mold | Blocks/Hour | Blocks/Shift | Brick Image |
Hollow Brick | 390*190*190mm | 10 | 2400 | 19200 | |
Porous Brick | 240*115*90mm | 21 | 5040 | 40320 | |
Paver Brick | 200*100*60mm | 36 | 8640 | 61920 | |
Solid Brick | 240*115*53mm | 48 | 11520 | 92160 |
Special brick molds can be developed according to customers' request.
1.Sand: 30~40%; 2.Fly Ash or Additive: 0 ~10%;
3.Cement: 10~20%; 4.Crushed Stone (<5cm): 30~40%;
5.Construction Refuse or Mineral Slag.
Packaging and Shipping for interlocking brick machine
Package: Standard packing, good wooden boxes for electric parts.
Shipping: 20FT, 40FT, 40HC containers by sea, by truck or by railway; or as your request.
Company Profile
Guangxi SHENTA Machinery Equipment Co.,Ltd. was established in 1973. The factory covers an area of 40,000 square metres, with more than 200 staff.
With more than 40 years professional experience in brick machine manufacturing, we have built a good reputation in China domestic and exporting markets.
Our main products include hydroform interlocking brick machine, automatic interlocking brick machine, semi automatic interlocking brick machine with concrete mixer, concrete mixers, full auto brick production line, brick stakers, pallet loaders, screw conveyor, cement silo and other brick making assistant equipments etc.
The main exporting markets are India, Vietnam, Indonesia, Parkistan, Thailand, Bangladesh, Nepal, Burma, Laos, Sri Lanka, Saudi Arabia, South Africa and so on.
We will keep the corporate value of "Providing first-class products and service" and build a solid future with you.
Our services
1. Pre-sale:
Provide brick making factory setting solution, brick equipment fitting choice and confirm scale of operation based on customer’s need, factory layout design.
2. Sales:
1)Free service of auto brick machine installation and commissioning;
2)Training for auto brick making machine operator and maintenance person.
3. After-sale:
1)Help customers to establish brick production craft formula;
2)Provide the auto brick making machine consultation all the time;
3)Supply auto brick machine moulds and parts all the time.
4. Brick block machine OEM and ODM service
If any further information needed, please don't hesitate to contact me. ^_^
Company Profile
Nanning SHENTA Machinery Equipment Co., Ltd, established in 1973, is the earliest professional and leading manufacturer of concrete block making machinery. After decades of hard working, we have developed into the high-tech enterprises which integrate the research & development, manufacturing, sales and service. SHENTA factory covers an area of 40,000 square meter, with senior engineers more than 20 people and all kinds of technician more than 200 staff. With an annual production capacity of 500 sets.
SHENTA devoted great care to market planning and development, we have earned ISO9001-2008 Quality Management Certificate in 2008, and awarded the title of "valuing contract and keeping promise" for many years. With the advanced technique, sophisticated technology, strict supervision and perfect service, SHENTA has become the high quality supplier in new building material field.
SHENTA not only distributed in all around China, but also exported to Southeast Asia, Africa, and Oceania etc.
Adhering to the philosophy of "Credit & Honest, dedication & devotion, pragmatism & practice, Innovation & Creation", SHENTA stride forward to construction equipment enterprise of specialization, scale and internationalization, provide strong support of equipment for the new building material, building the solid future for you.
