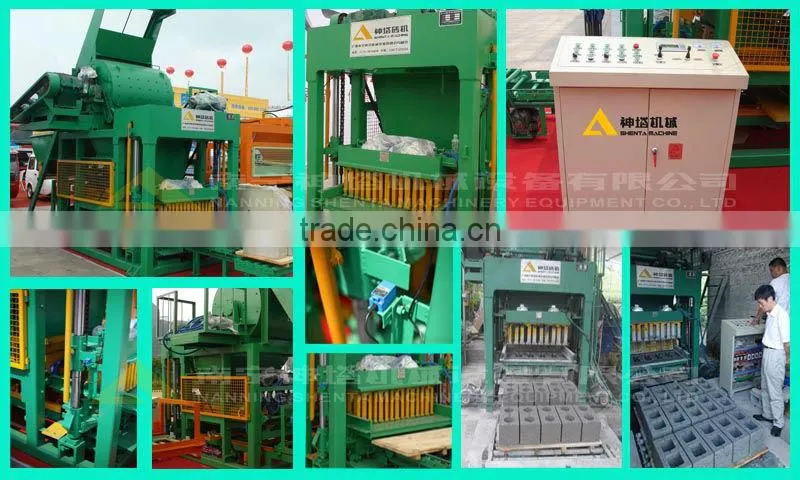

SHENTA QTJ5-20 tanzania interlocking brick making machine for sale
1.Characteristics of QTJ5-20 interlocking brick making machine
1 | Full mechanical transmission with feature of compact structure and reasonable design, stable running, lower malfunction rate, easy operation and maintenance; |
2 | Adopt Japan Mitsubishi PLC program control, produce the cement brick automatically, Electrical parts ate provided by the famous brand manufacturer, the operation is more safety and reliable; |
3 | The main making machine utilize the pressing and high frequency vibration to mold the brick, the finished product is more dense and solid; |
4 | The high speed arch breaking device can consumedly shorten the material distributing time |
5 | By changing difference mould, the block making machine can produce either load-bearing brick or non-load-bearing brick, and multitude shape wall brick; |
6 | Machine frame adopt super strong profile steel to weld to provide the stability and reliability intervening the long working life |
2. Production flow for QTJ5-20 interlocking brick making machine

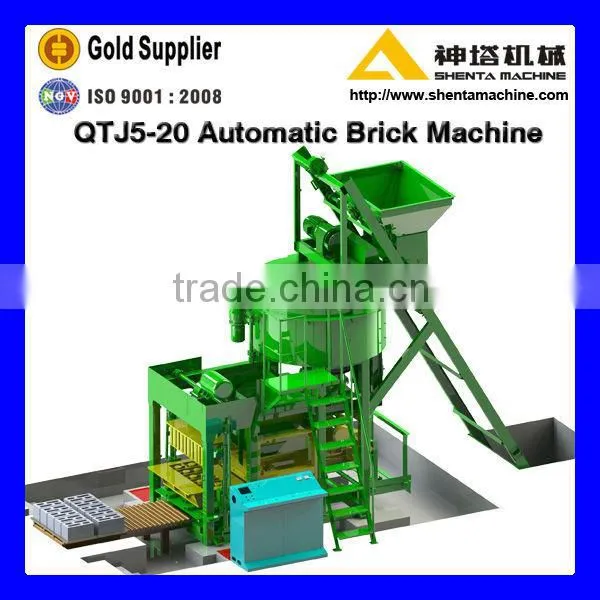

Main machine
3.Main Specifications of QTJ5-20 interlocking brick making machine
Outside Dimension (mm) | 3400x2040x4300 | Operation Cycle (s) | 20~25 |
Main Machine Weight (Ton) | 8 | Vibration Frequency (rpm) | 4300 |
Power Consumption (Kw) | 44 | Vibration Force (Kn) | 55 |
Pallet Dimension (mm) | 1050x550x30 | Vibration Power (kW) | 15 |
Operator quantity | 4 people | Land required | 3500M2 |
4. Main Productivity of QTJ5-20 interlocking brick making machine
Brick Size | Blocks/Mould | Blocks/Hour | Blocks/Shift | Remark |
Hollow Brick (400x200x200mm) | 4 | 580~720 | 4,600~5,700 |
|
Hollow Brick (400x150x200mm) | 6 | 860~1,080 | 6,900~8,600 | |
Hollow Brick (400x100x200mm) | 9 | 1,300~1,620 | 10,400~13,000 | |
Hollow Brick (390x190x190mm) | 5 | 720~900 | 5800~7,200 | |
Porous Brick (240x115x90mm) | 16 | 2,300~2,880 | 18,400~23,000 | |
Remark:The production capacity data are theoretical and are dependent on machine settings, mix design,
aggregates used and other environmental conditions.

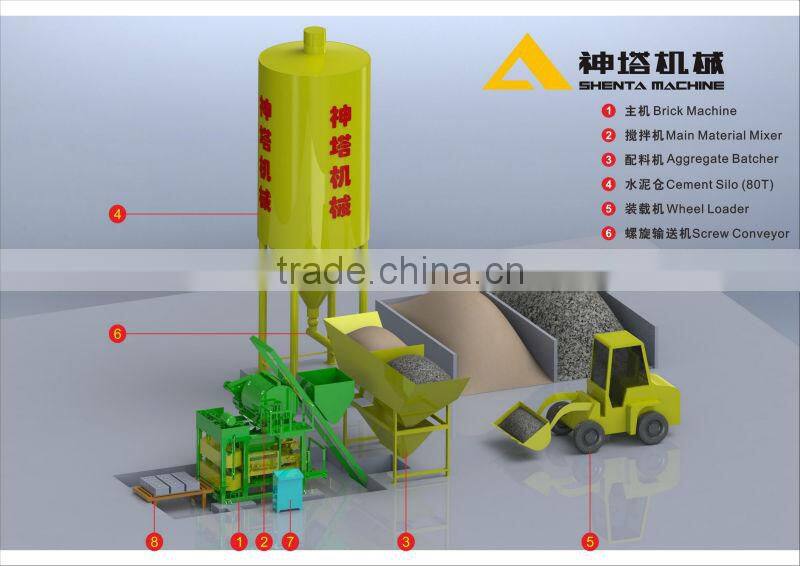

5. Brick production Line of QTJ5-20 interlocking brick making machine

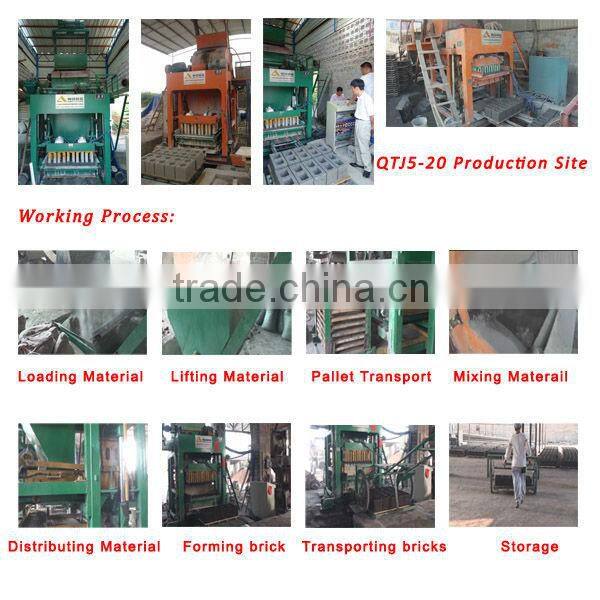

Brick production flow for QTJ5-20 interlocking brick making machine
6. Brick Raw Material for QTJ5-20 interlocking brick making machine
Many kinds of materials such as concrete, cement, sand, crushed stone, dust and fly coal ash, cinder,
gravel, perlite, construction refuse, etc. can be used to make brick.
MU10.0 Strength Brick Material Rate:
1.Cement-12%; 2. Fine Stone Powder or Fine Sand-40%; 3. Crushed Stone (<8mm)-40%; 4. Fly Ash or Additive-8%

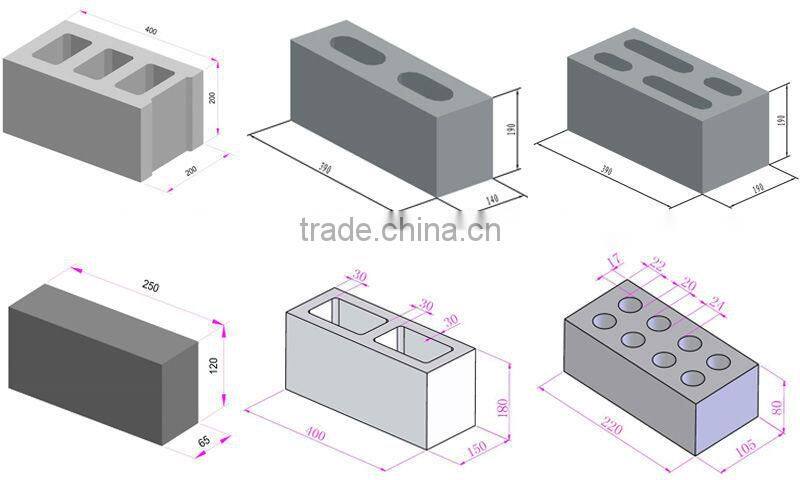

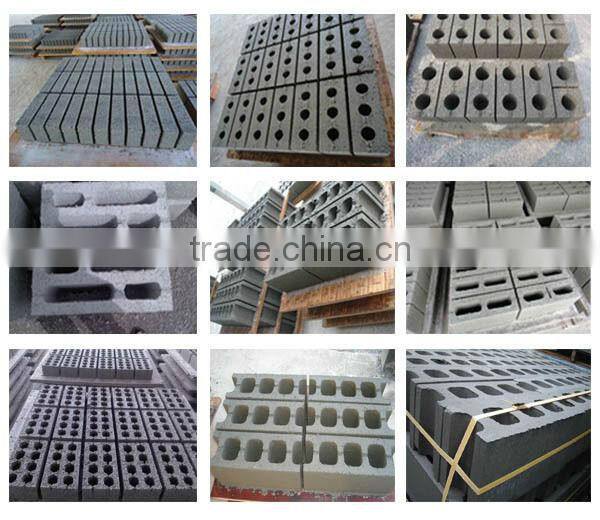

7. Brick Samples for QTJ5-20 interlocking brick making machine
Various types of concrete block, cement brick, solid brick, hollow block, perforated brick, paving brick,
interlocking block, building brick, garden and landscaping block, grass block, slope block, etc. can be made.

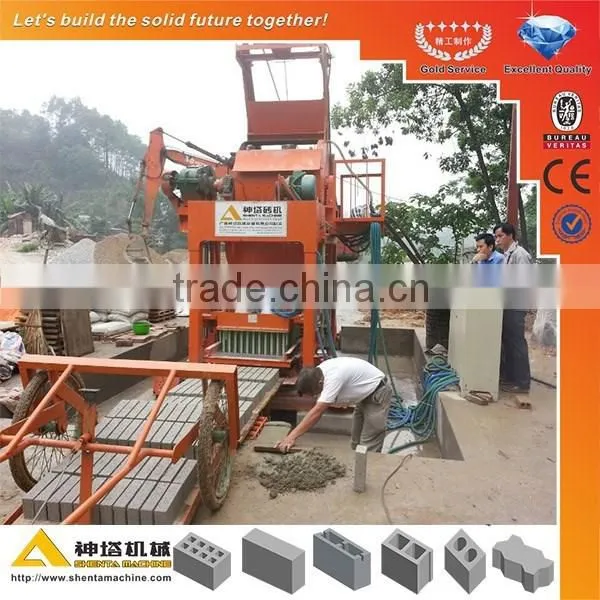

8.Our Customer's Brick Factory
9. Exhibitions of SHENTA MACHINE
10. About SHENTA Machine
Our Advantages
→ We are brick and block making machine manufacturer with 40 years professional experience.
→ We can offer large scale, millde scale and small scale brick and block making machine.
→ We have more than 40,000 square meters production area with over 200 workers.
→ Welcome to visit Shenta factory.
Our Service
Pre-sale:
Analyze the customer’s need and factory layout design, confirm scale of operation;
Select the fitting choice;
Provide perfect solution to set up a factory.
Sales:
Help to set up the factory;
Provide free service of installation and commissioning;
Provide training for operator and maintenance person.
After-sale:
Help customers to establish production craft formula;
Provide the consultation all the time;
Supply moulds and parts all the time.
Thank you for your attention to SHENTA MACHINE.
Welcome to inquire more information of QTJ5-20 interlocking brick making machine
Your inquiry will be highly appreciated.
