Guangxi Shenta Machinery Equipment Co., Ltd.: 5Yrs

Nanning, Guangxi, China; Main products: Block Making Machine, Assistant Equipment

Home > Products > Automatic brick machine > QTY8-15 Hot Sale Concrete Block Machine

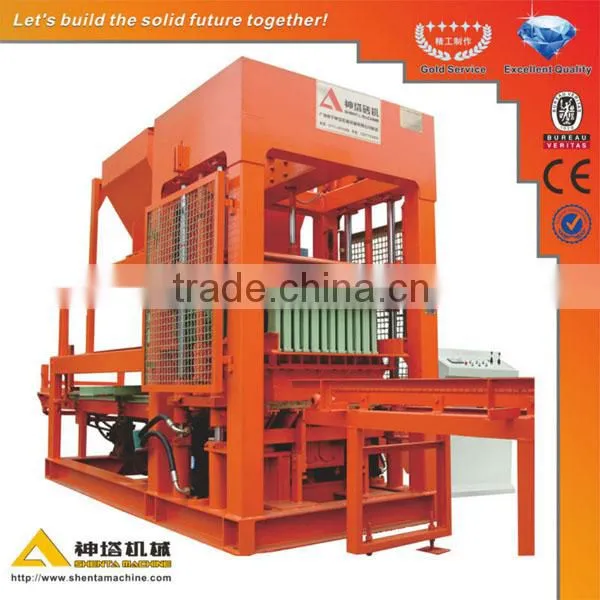

QTY8-15 Hot Sale Concrete Block Machine

FOB Price

US$ 40,000 - 60,000 / Set

1 Set(Min. Order)

Port Guangzhou or Fangcheng Port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, block making machine
Brick Raw Material	Concrete	Processing	Other, terminal block making
Method	Hydraulic Pressure	Automatic	Yes
Capacity	15,000~69,000 blocks/hour	Place of Origin	Guangxi, China
Brand Name	SHENTA brick making machine	Model Number	QTY8-15 hot sale concrete block machine
Voltage	380V	Power	45kW
Dimension(LWH)	5200x1800x2800mm	Certification	CE, ISO 9001:2008, BV
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Package is suitable for container load and ocean shipping.
QTY8-15 terminal block making machine will need 01x40HQ container

Product Description

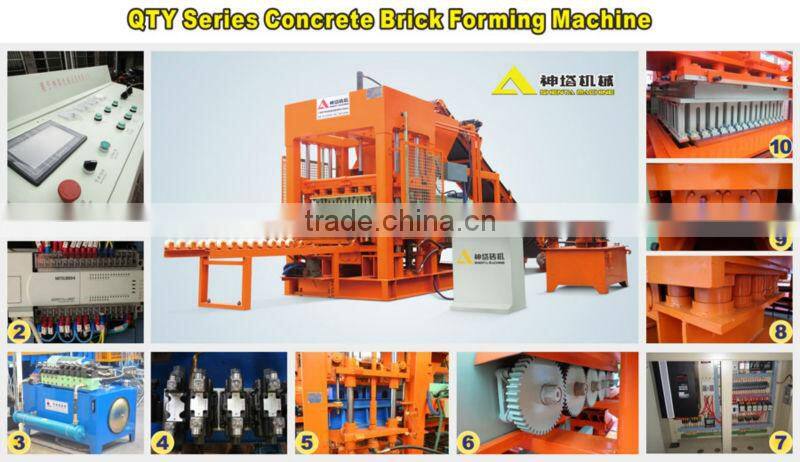

QTY8-15 hot sale concrete block machine :

I. Advantages of QTY8-15 concrete block machine :

1. Long service life:

--- Built with high quality steel, good quality welding and quality finishes;

--- Japan or Taiwan good quality hydraulic system components.

2. High precision, Low malfunction rate:

--- Japan or Taiwan PLC full automatic control system, all hydraulic transmission;

--- Interlocking functions, data auto-collecting contactors, alarms for lack of pallet and material.

--- Four pillars guidance mold, forced type synchronized gear device, complete safety protection

3. Fully automatic operations:

--- Automatic material conveyor

--- Automatic material and color pigment distributing

--- Automatic brick forming

--- Automatic pallet feeder

--- Automatic brick discharging.

4. Fast brick forming speed, ensured brick density:

--- Brick formed by high hydraulic press and high frequency synchronous vibration, ensure the brick airtight and solid.

--- Drops 8 blocks per mould, only 15 seconds per cycle. (Calculated based on brick size 390x190x190mm)

5. Cost saving:

--- High qualified rate, low cement consumption.

6. Multi-function:

--- Suitable for different kinds of brick types and materials.

7. High quality finished brick:

--- Good looking, accurate size, durable, long service life.

SHENTA MACHINE offer good presale and after sale service.

II. Theoretic Productivity block machine QTY8-15:

Brick Type	Dimension	Blocks/Cycle	Blocks/Hour	Blocks/Shift	Remark
Hollow Brick	390190190mm	10	2400	19200
Porous Brick	24011590mm	21	5040	40320
Paver Brick	20010060mm	36	8640	61920
Solid Brick	24011553mm	48	11520	92160

Note: Special brick model is available according to customer demand.

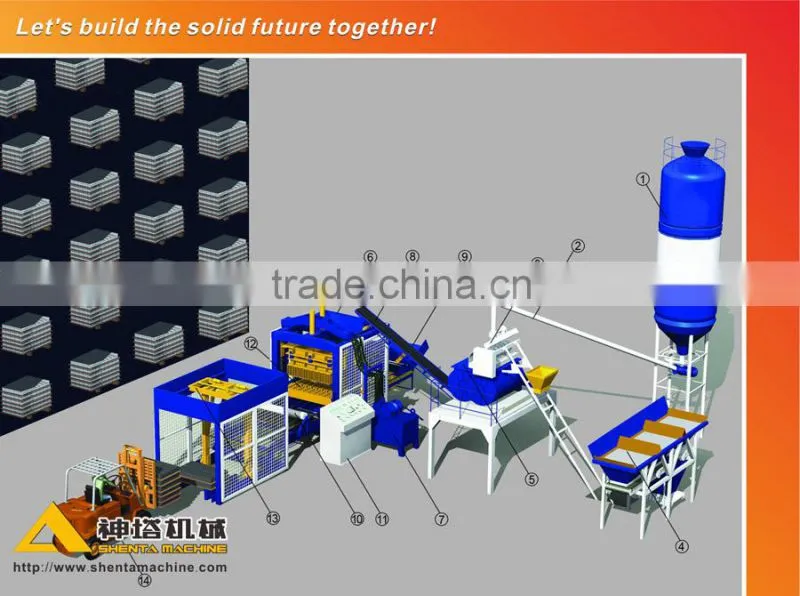

IV. Process Flow of block machine:

Our factory has passed the ISO9001:2008 and BV certificate, adopt high quality material and strict process technical, ensure the excellent performance of machine and good brick produce.

V. Raw Material:

Our block machine can adopt the following raw materials to make the good quality hollow brick, solid brick and paver brick.

1.Cement: 10%~20%;

2.Sand: 30~40%;

3.Crushed Stone (<5cm): 30~40%;

4.Fly Ash or Additive: ~10%

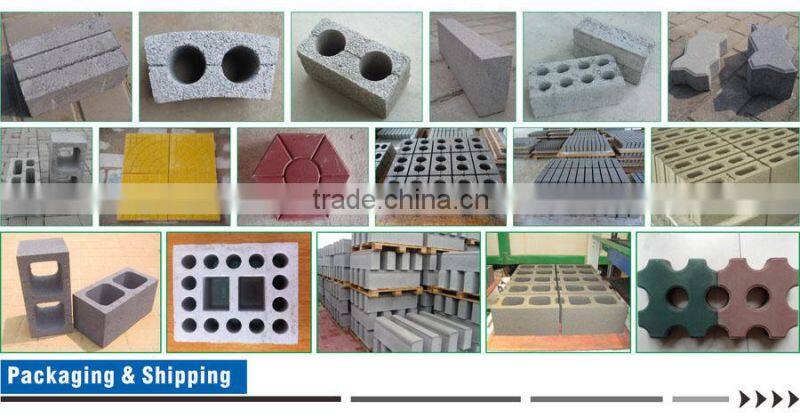

VI. Brick Sample of block machine:

Our machine can produce the concrete hollow brick, solid brick, porous brick, paver brick, interlock brick, road traffic stone and so on.

Experienced in selling concrete brick machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protected by wooden boxes.

I. Factory Ability:

1. Workshop Area: 40,000 square meter;

2. Facility:

CNC Lathe	06 sets	Boring Lathe	02 sets	Shaper	02 sets
Milling Machine	04 sets	Press Brake	02 sets	CNC Flame Cutter	01 set
Crane	10 sets	Shot Blast Machine	01 set	X-ray Inspection Instrument	01 set

II. Quality Control & Certificate of block machine:

We adopt the high quality steel materials, and every process will have the strict inspection and test comply with the ISO-9001or CE standard to ensure the machine has perfect performance.

III. Our Achievement:

Until now we have successfully export and handover our block machine and production line to customers in Vietnam, Indonesia, Angola, India and Papua New Guinea, and acquire the good reputation of user.

IV. Exhibitions:

We take parts in many exhibitions every year, such as Canton Fair in Guangzhou; Bauma China in Shanghai, India international engineering machinery, building materials machinery, mining machinery, engineering vehicles and parts exhibition; International concrete technology and equipment exhibition in India; The ASEAN-China Exposition in Nanning, etc.

FAQ

Q1: What kinds of brick the hydraform block making machine can make?
A1: Our QTY series hydraulic automatic concrete brick machine adopt the table vibration and high pressure to form the concrete block, just need to change the forming mold, the machine can make various of hollow brick, solid brick, paver brick, curve brick, interlocking brick, curb stone and other pre-cast brick.

Q2: If OEM and ODM services available?
A2: Yes. We can make the machines with customers’ brand and logo. With professional engineers, we also can design and produce the machines according to customers’ requests.

Q3: What is the production lead time?
A3: Normally, if the brick machine are standard, it will be 35 to 40days. If not, the production lead time will be longer.

Q4: How to contact SHENTA Machine's business manager?

Welcome contact us as below:

Company Profile

Guangxi Shenta Machinery Equipment Co., Ltd.

Nanning SHENTA Machinery Equipment Co., Ltd, established in 1973, is the earliest professional and leading manufacturer of concrete block making machinery. After decades of hard working, we have developed into the high-tech enterprises which integrate the research & development, manufacturing, sales and service. SHENTA factory covers an area of 40,000 square meter, with senior engineers more than 20 people and all kinds of technician more than 200 staff. With an annual production capacity of 500 sets. SHENTA devoted great care to market planning and development, we have earned ISO9001-2008 Quality Management Certificate in 2008, and awarded the title of "valuing contract and keeping promise" for many years. With the advanced technique, sophisticated technology, strict supervision and perfect service, SHENTA has become the high quality supplier in new building material field. SHENTA not only distributed in all around China, but also exported to Southeast Asia, Africa, and Oceania etc. Adhering to the philosophy of "Credit & Honest, dedication & devotion, pragmatism & practice, Innovation & Creation", SHENTA stride forward to construction equipment enterprise of specialization, scale and internationalization, provide strong support of equipment for the new building material, building the solid future for you.
