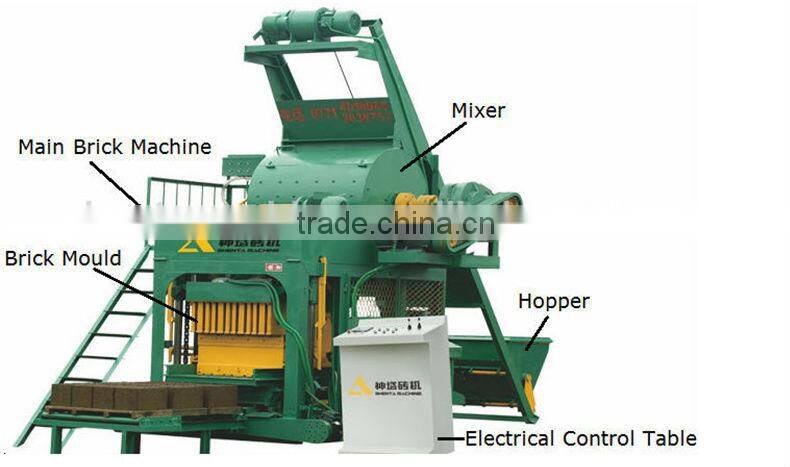

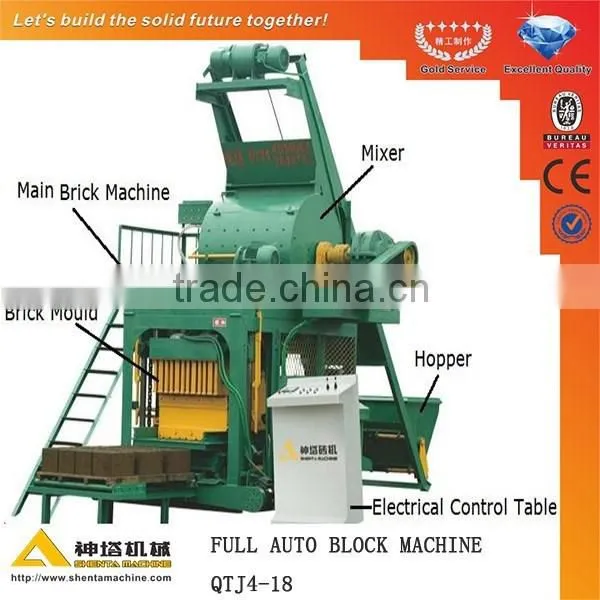

I. Characteristics of QTJ4-18 automatic cement block moulding machine

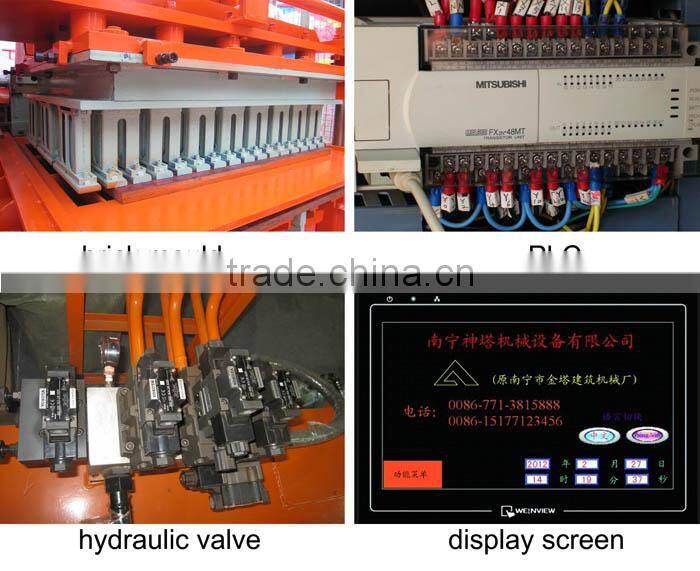

1.Control system: Adopted with Taiwan intelligent programmable logic controller (PLC) and high performance LCD, our brick machines can realize the man-machine conversation and fully automatic intelligent operation.
2.High efficient vibration system: Adopt intelligent control and synchronous vertical vibration techniques. Bricks formed by synchronous vibrations of press head and mould table, which makes the forming speed faster and the bricks denser.
3.Machinery Manufacturing: Made of high strength steels according to the national standard. Special welding techniques and advanced mechanical working processes bring high precision, durable and a long service life.
4.Transmission system: Adopted with mechanical transmission and two pillars ori ented. Simple and compact structure brings it stable and consecutive actions and easy to be maintained.
5.Feeding system: Adopt the forced advanced rotating arch breaker. It is suitable for various materials, and the process is uniform and quick.
II. Advantages of QTJ4-18 automatic cement block moulding machine
Operation Cycle | 18-25 | Pallet Size | 840*450*30mm |
Brick Height | 60~200mm | MainPower Capacity | 37Kw |
Mixer Model | JS350 | Vibration Force | 45kN |
Net Weight | 7Ton | Main Machine Dimension | 5600*3000*4300mm |
Power Source | 3Phase, 380V/50Hz (Special voltage & frequency is available according to your local power source.) | ||
Brick Type | Dimension | Blocks/Cycle | Blocks/Hour | Blocks/Shift | Remark |
Hollow Brick | 390*190*190mm | 4 | 800 | 6,400 | |
Porous Brick | 240*115*90mm | 9 | 1,800 | 14,400 | |
Paver Brick (Non-color) | 200*100*60mm | 12 | 2,400 | 19,200 | |
Solid Brick | 240*115*53mm | 21 | 4,200 | 33,600 | |
Note: Special brick model is available according to customer demand.

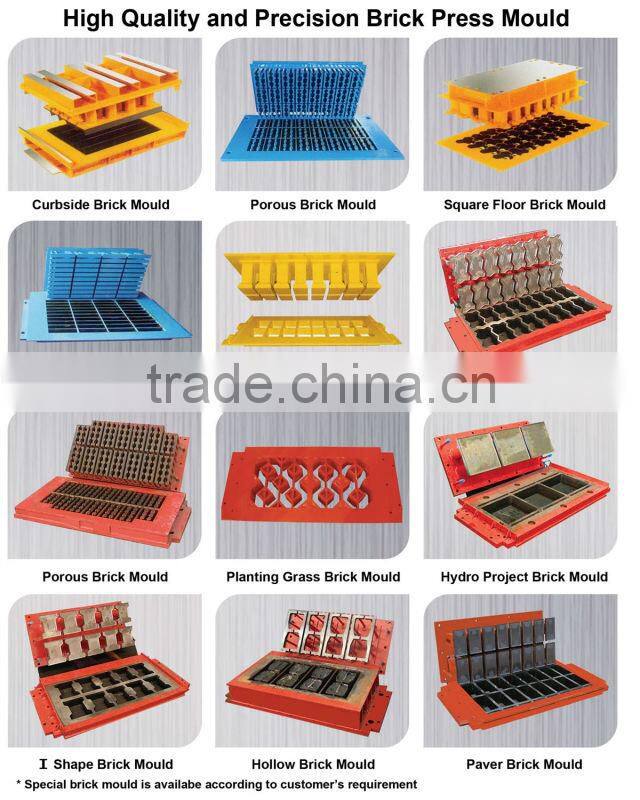

IIV. Block Press Mould of QTJ4-18 automatic cement block moulding machine
IIIV. Block raw material of QTJ4-18 automatic cement block moulding machine

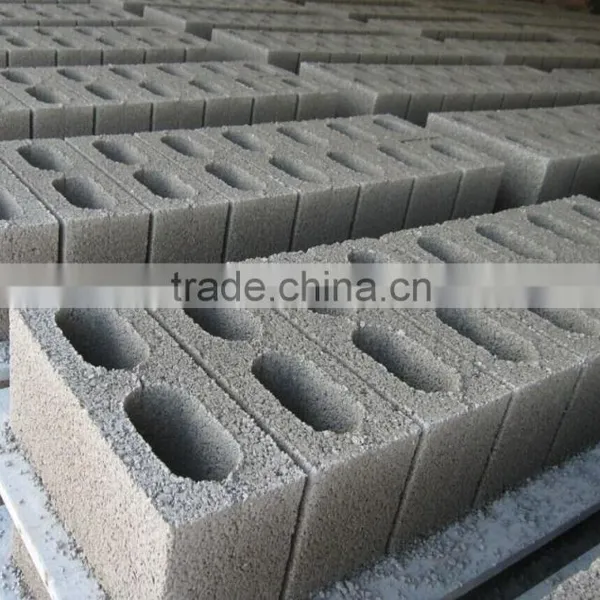

Our block machine can adopt the following raw materials to make the good quality hollow brick, solid brick and paver brick.
Experienced in selling concrete block machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protected by wooden boxes.

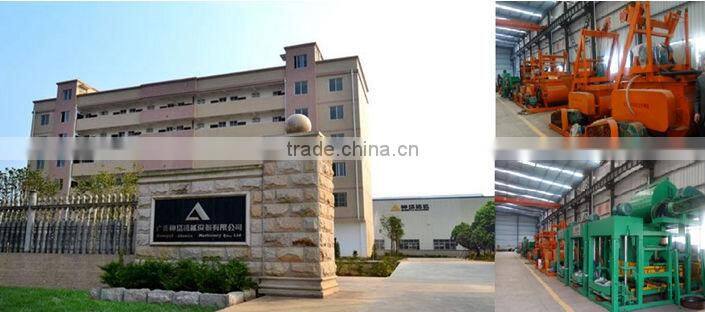

I.About us:
1.SHENTA Machinery Equiment Co.,Ltd, established in 1973, is the earliest professional manufacturer of concrete block making machine. We are capable of manufacturing and supplying machineries and equipments either in manual, semi automatic and automatic operations.
2.After 40 years of hard working , SHENTA equipments have not only a big market in the Southwest china, our equipments are also exported to SouthEast Asia, Mid-East , Africa and Oceania etc. Accurate market positioning target at fine service which makes the company highly trusted by the customers.
3.SHENTA is the manufacturer of cement brick making machines, fly ash brick making machines, concrete block machines, hollow block machines, interlocking paver machines and curbing block machines that produce various sizes and designs of cement bricks, fly ash bricks, coloured bricks, concrete blocks, hollow blocks, interlocking pavers and curbing blocks, either by manual,semi automatic or automatic operations.Mould for various sizes and designs of bricks/block can be supplied according to customers specifications and requirements,
We adopt the high quality steel materials, and every process will have the strict inspection and test comply with the ISO-9001or CE standard to ensure the machine has perfect performance.
III. Exhibitions:
We take parts in many exhibitions every year, such as Canton Fair in Guangzhou; India international engineering machinery, building materials machinery, mining machinery, engineering vehicles and parts exhibition; International concrete technology and equipment exhibition in India; The ASEAN-China Exposition in Nanning, etc.
V. Contact Information:
Welcome contact lynn via below:
T: 00.86.156.7821.9259.
Whats.app:00.86.156.7821.9259.
