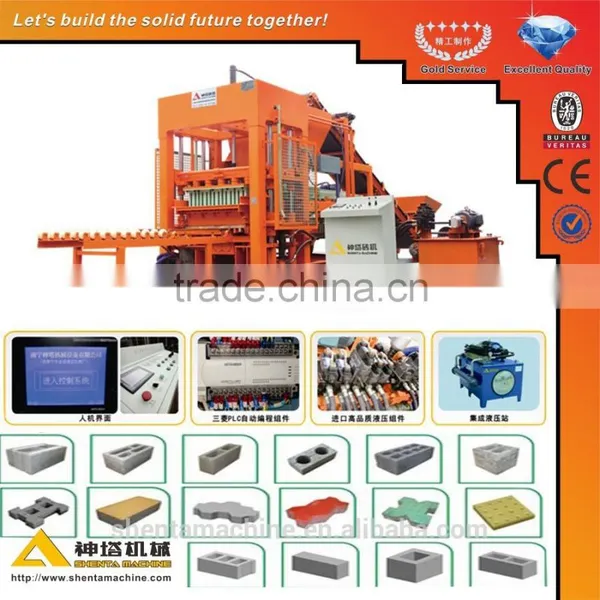

QTY10-15 high qualityhigh capacity cement block making machine
1. Characteristic of QTY10-15 cement block making machine
(1) Control system: Adopt intelligent programmable logic controller (PLC) and high performance touch screen. Realize the man-machine conversation and fully automatic intelligent operation.
(2) High efficient vibration system: Adopt intelligent control technique in the frequency conversion vibration system, distribute materials in low frequency and form the bricks in high frequency. Moreover, with the synchronous vertical vibration technology, the brick forming speed becomes faster and the bricks are more compacted.
(3) Machinery Manufacturing: Made of high strength steels according to the national standard. Special welding techniques and advanced mechanical working processes bring high precision, durable and a long service life.
(4) Transmission system: Adopt fully hydraulic transmission, four pillars oriented and synchronous mechanism. Machine operation is stable, precise and less malfunctions.
(5) Feeding system: Adopt the forced advanced rotating arch breaker. It is suitable for various materials, and the process is uniform and quick.

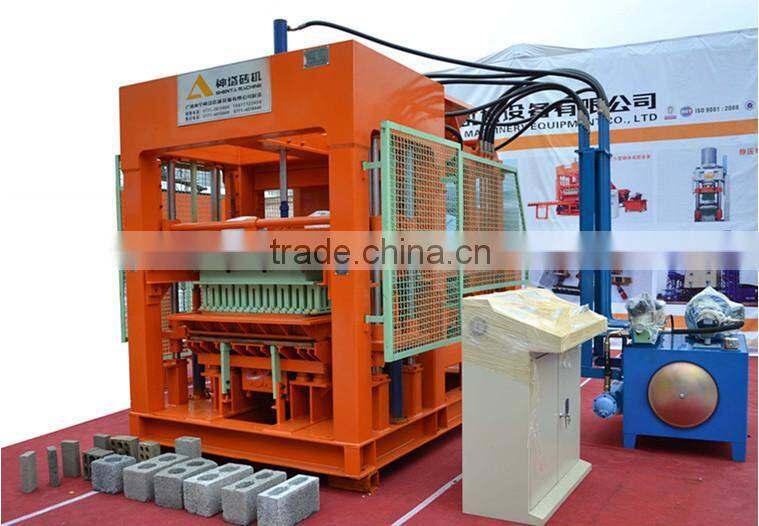

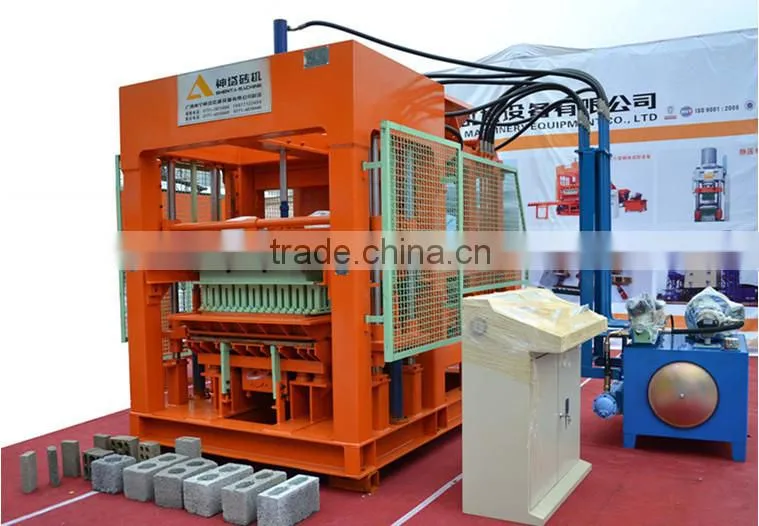

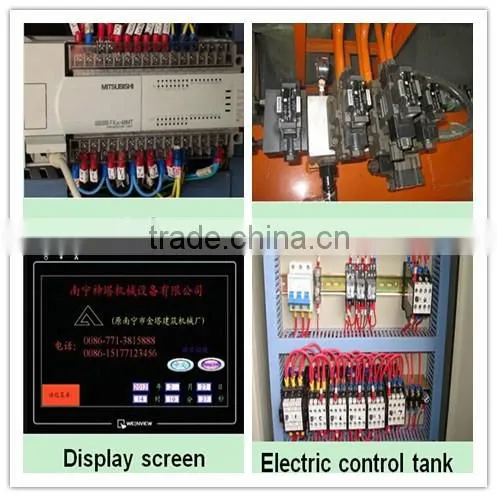

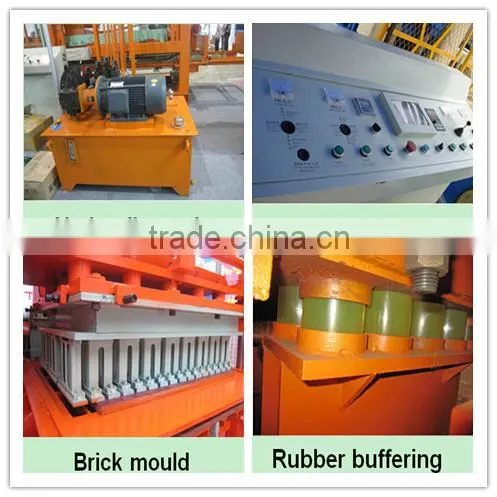

2. Detail pictures of QTY10-15 cement block making machine
3. Main specification of QTY10-15 high capacity block machine
| Operation Cycle(s) | 15-25 | Dimension(mm) | 4900*2100*3000 |
| Brick Height(mm) | 60-200 | Power Capacity(kw) | 51 |
| Net Weight(ton) | 10 | Vibration Force(kn) | 86 |
| Pallet Size(mm) | 1100*900*30 | Vibration Frequency(r/min) | 430-5130 |

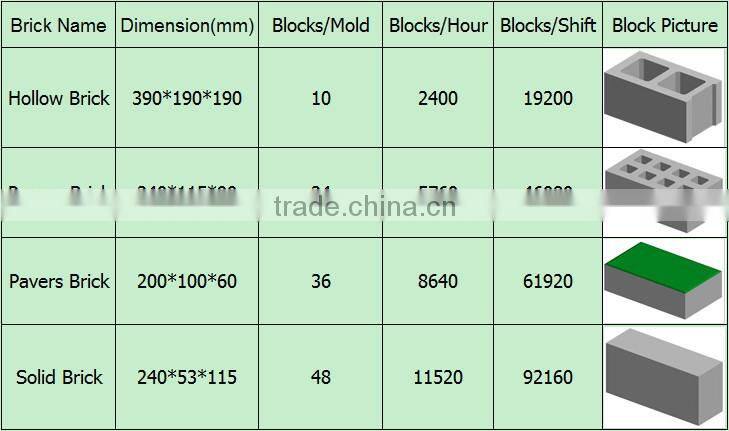

4. Theoretic Productivity Capacity of QTY10-15 high capacity block machine

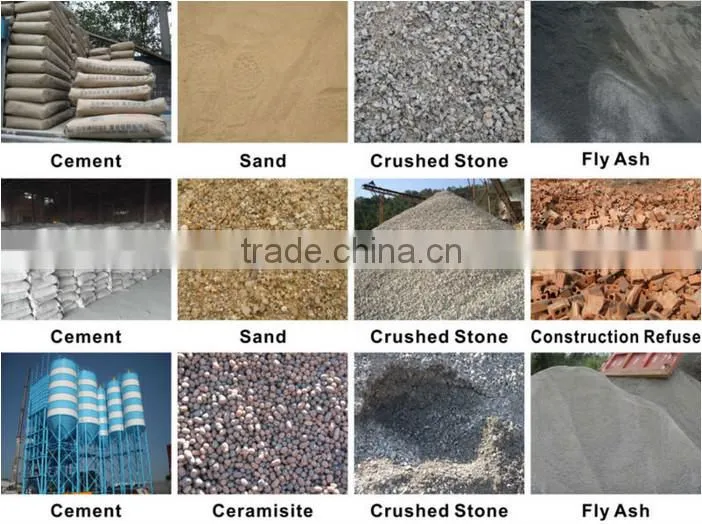

5. Brick raw materials of QTY10-15 high quality block machine
Materials such as concrete, cement, sand, crushed stone, dust and fly coal ash, cinder,
gravel, perlite, construction refuse, etc. can be used to make brick.
(1)Sand: 30~40%; (2)Fly Ash or Additive: 0 ~10%;
(3)Cement: 10~20%; (4)Crushed Stone (<5cm): 30~40%;
(5)Construction Refuse or Mineral Slag.

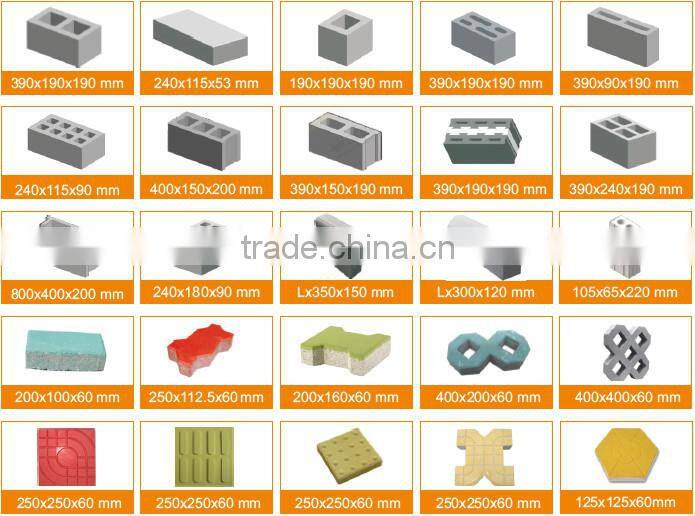

6. Brick samples of QTY10-15 high quality block machine

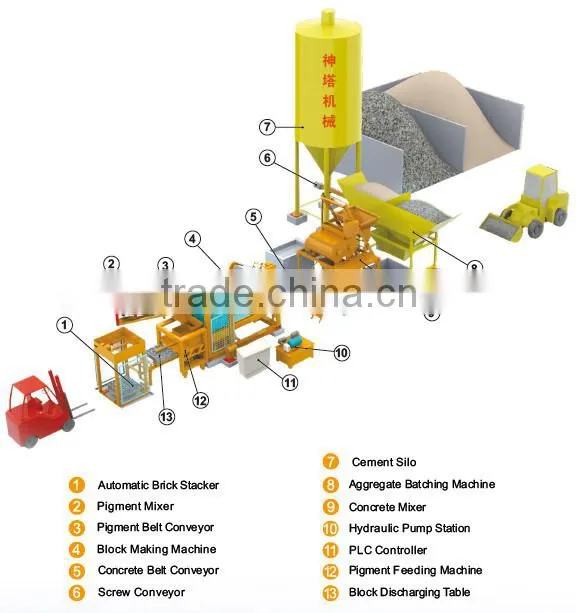

7. Production line of QTY10-15 high qualityhigh capacity cement block making machine
Plant occupation areas: 4000-7000m2
operators required: 4 persons
Productivity: it is subject to the brick types and materials.
Our company can provide the whole production line machines to meet customers' need.
Our service
1. Pre-sale service:
(1) Recommend relative models machine according to the customer needs, factory layout design, confirm scale of operation.
(2) Customize equipments according to the customer's special requirements.
(3) Our engineers will supply the site and equipment drawing.
2. Sales:
(1) Provide perfect solution to set up a factory.
(2) Provide free service of installation and commissioning.
(3) Provide training for operator and maintenance person.
3. After-sale service :
(1) Help customers to establish production craft formula.
(2) The quality guarantee is lasting 1 year.
(3) Provide the consultation all the time.
(4) Supply moulds and parts all the time.

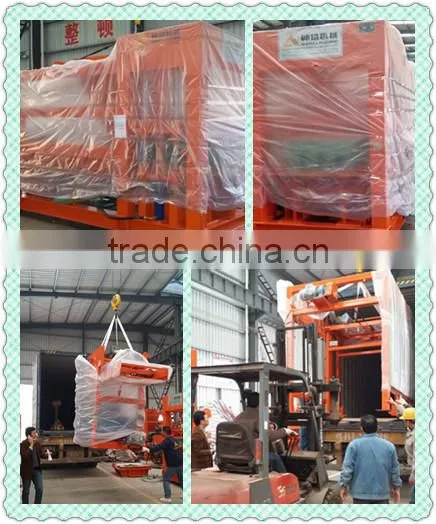

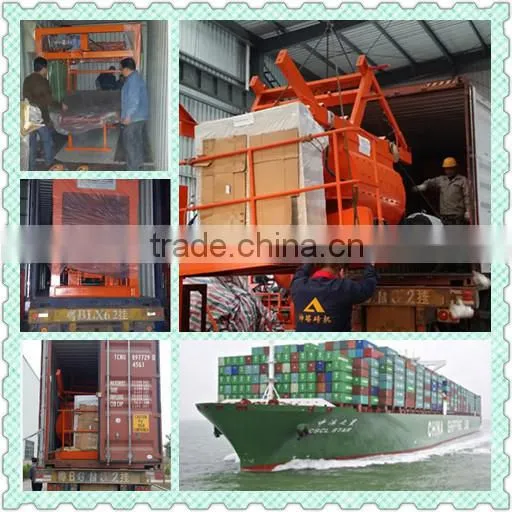

Our Packing and Shiping
Experienced in selling concrete brick machine to more than 30 different countries, we pack and load the machines well and prevent any damages during transportation, all the key parts are protected by wooden boxes.

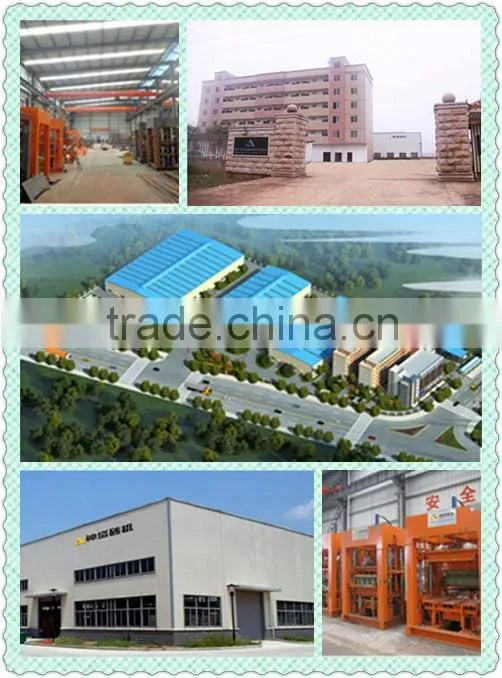

1. Company Information
(1) Guangxi SHENTA Machinery Equipment Co.,LTD, is the largest manufacturer of block making equipment established in 1973.
(2) SHENTA covers an area of 60 acres, with a total investment of 15 million US dollars and produces more then 500 sets of machines.
(3) SHENTA becoming a high-tech enterprise in research, development, production and sales, specializing in concrete block production lines, isostatic pressing block machine concrete batching plant and other construction machinery.
(4) SHENTA has more then 20 senior engineers specializing in mechanical, hydraulic and electrical engineering and more then 200 technical staff, which insure the excellent after-sale sevice to customers.
2. Certification
We adopt the high quality steel materials, and every process will have the strict inspection and test to ensure the machine has perfect performance.
3. Exhibition show
FAQ
Q1: What is the standard packing for the brick machine?
A1: It depends. If necessary, wooden cases with fumigation are available.
Q2: If OEM and ODM services available?
A2: Yes. We can make the machines with customers’ brand and logo. With professional engineers, we also can design and produce the machines according to customers’ requests.
Q3: What is the production lead time?
A3: Normally, if the brick machine are standard, it will be 35 to 40days. If not, the production lead time will be longer.
My dear friends, if you have any questions about the QTY10-15 high qualityhigh capacity cement block making machine, please feel free to contact Nancy.
