Technical Specification of QTY6-15 automatic concrete paver block machine
Outside Dimension (mm) | 3900x2100x2800 | Operation Cycle (s) | 15~25 |
Main Machine Weight (Ton) | 8 | Vibration Frequency (rpm) | 4300 |
Power Consumption (Kw) | 44 | Vibration Force (Kn) | 65 |
Pallet Dimension (mm) | 1280x550x30 | Vibration Power (kW) | 18 |
Operator quantity | 5 people | Land required | 4500m2 |
characteristics of QTY6-15 automatic concrete paver block machine
1. Control system:Adopt intelligent programmable logic controller (PLC) and high performance touch screen. Realize the man-machine conversation and fully automatic intelligent operation
2. High efficient vibration system:Adopt intelligent control technique in the frequency conversion vibration system, distribute materials in low frequency and form the bricks in high frequency. Moreover, with the synchronous vertical vibration technology, the brick forming speed becomes faster and the bricks are more compacted

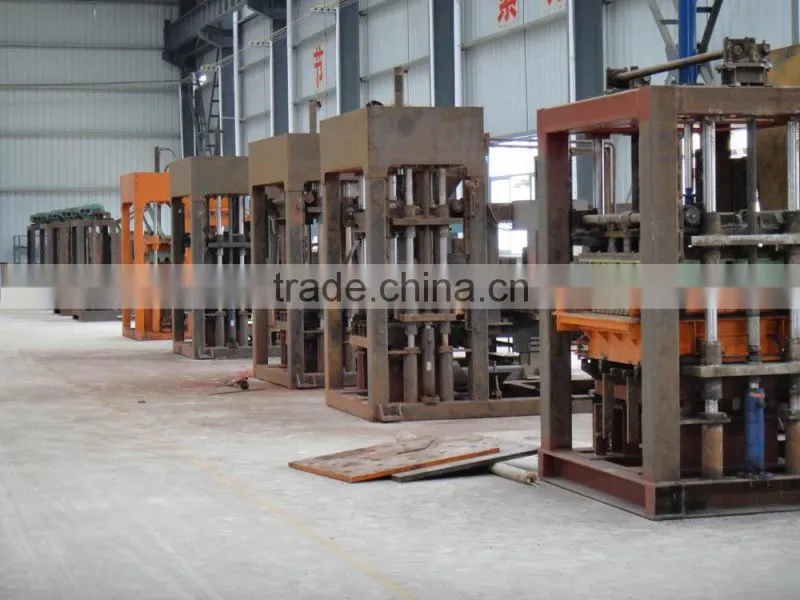

3. Machinery Manufacturing:Made of high strength steels according to the national standard. Special welding techniques and advanced mechanical working processes bring high precision, durable and a long service life.
4.Transmission system: Adopt fully hydraulic transmission, four pillars oriented and synchronous mechanism. Machine operation is stable, precise and less malfunctions
5. Feeding system :Adopt the forced advanced rotating arch breaker. It is suitable for various materials, and the process is uniform and quick.

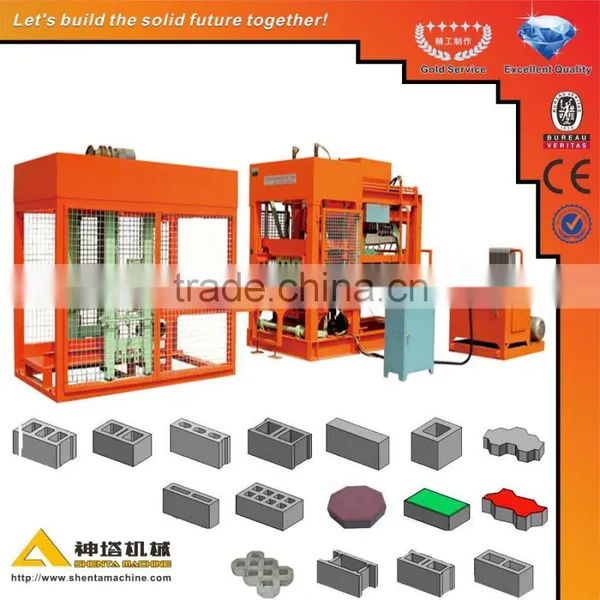

Details pictures of QTY6-15 automatic concrete paver block machine

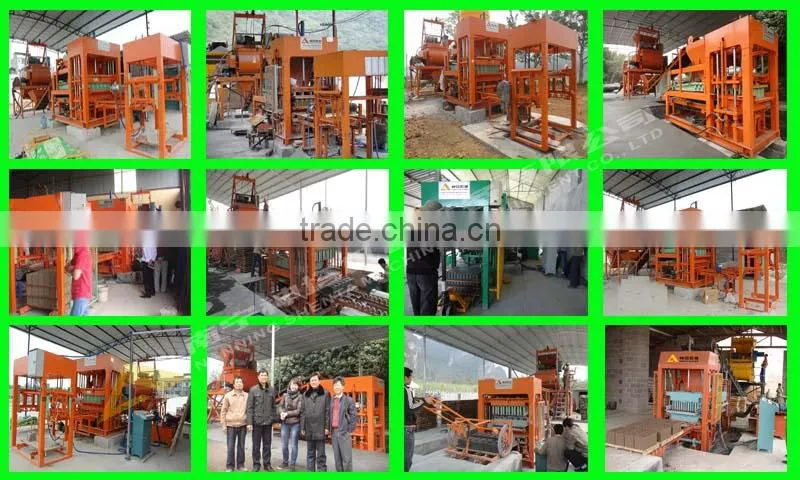

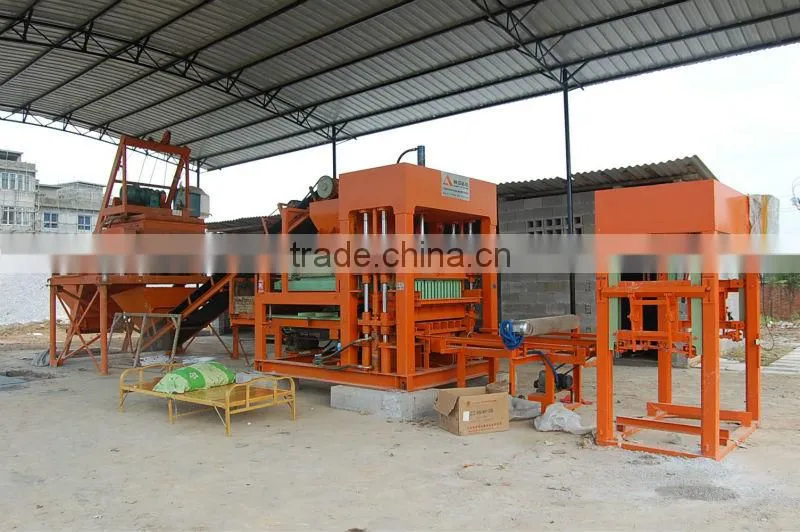

production line of QTY6-15 automatic concrete paver block machine

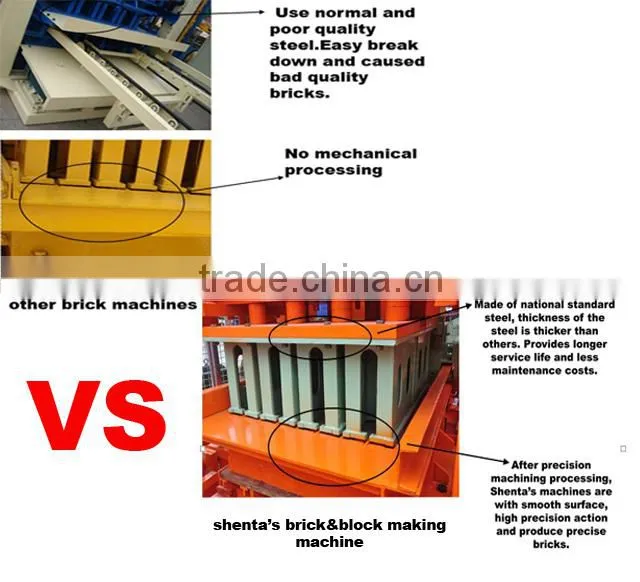

Difference between Shenta QTY6-15 automatic concrete paver block machine and other brick making machine
production capacity of QT6-15 automatic concrete paver block machine
Brick Size | Blocks/Mould | Blocks/Hour | Blocks/Shift |
Hollow Brick (400x200x200mm) | 5 | 1,200 | 9,600 |
Hollow Brick (400x150x200mm) | 7 | 1,680 | 13,400 |
Hollow Brick (400x100x200mm) | 11 | 2,460 | 21,100 |
Hollow Brick (390x190x190mm) | 6 | 1,440 | 11,500 |
Porous Brick (240x115x90mm) | 18 | 4,320 | 34,500 |
Solid Brick (240x53x115mm) | 36 | 8,640 | 69,000 |
Interlock Brick (225x112x60mm) | 20 | 4,800 | 38,400 |
Pavers Brick (200x100x60mm) | 20 | 4,800 | 38,400 |
Remark: The production capacity data are theoretical and depends on machine settings, mix design, aggregates used and other environmental conditions.

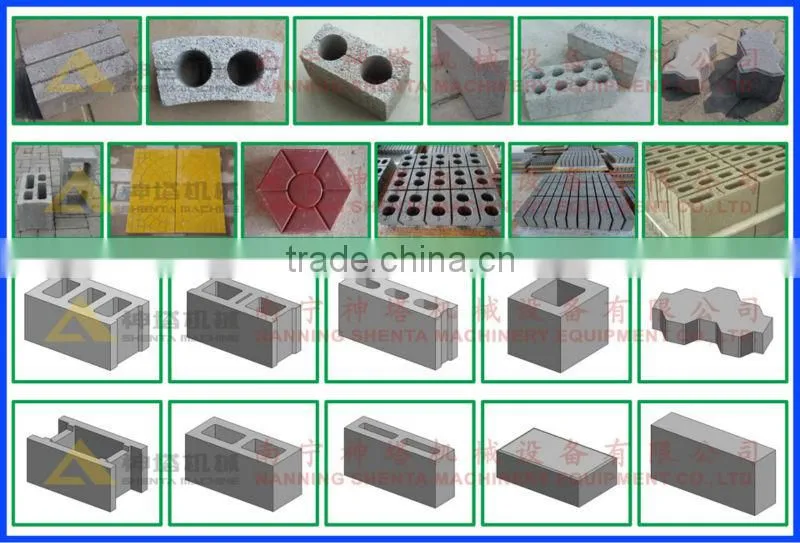

Brick sample of QTY6-15 automatic concrete paver block machine
Raw materials of QTY6-15 automatic concrete paver block machine
1.Sand: 30~40%
2.Fly Ash or Additive: 0 ~10%
3.Cement: 10~20%
4.Crushed Stone (<5cm): 30~40%
5.Construction Refuse or Mineral Slag
Packaging&Shipping of QTY6-15 automatic concrete paver block machine
Our services of QTY6-15 automatic concrete paver block machine
Pre-sale
Analyze the customer's need
Select the fitting choice
Provide perfect solution
Sales
Provide free service of installation and commissioning
Provide training for operator and maintenance person
After-sale
Help to establish production craft formula
Provide the consultation all the time
Supply moulds and parts all the time
Company information

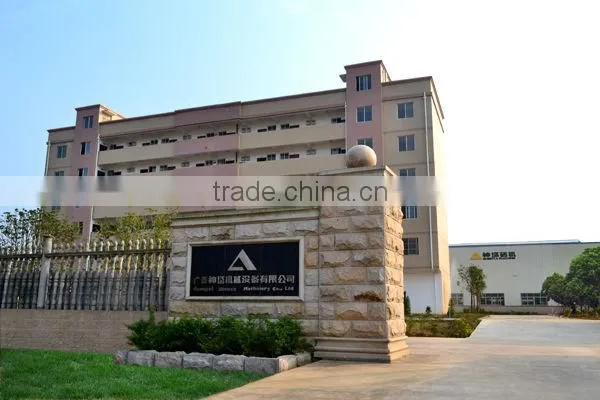

Nanning SHENTA Machinery Equipment Co., Ltd, established in 1973, is the earliest professional and leading manufacturer of concrete block making machinery. After decades of hard working, SHENTA has developed into the high-tech enterprises which integrate the research & development, manufacturing, sales and service
Besides, We take parts in many exhibitions every year, such as Canton Fair in Guangzhou; India international engineering machinery, building materials machinery, mining machinery, engineering vehicles and parts exhibition; International concrete technology and equipment exhibition in India; The ASEAN-China Exposition in Nanning, etc
