Super LinkVietnam Market 75 Ohm Cap Dong Truc QR540 With Messenger

Super LinkVietnam Market 75 Ohm Cap Dong Truc QR540 With Messenger thumbnail-1
Super LinkVietnam Market 75 Ohm Cap Dong Truc QR540 With Messenger photo-1
Negotiable MOQ: 10 Boxes (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SUPER LINK Vietnam Cap Dong Truc QR540 With Messenger
Model Number:
Vietnam Cap Dong Truc QR540 With Messenger
Contact Supplier Request Quote Chat Now
Hangzhou Super Link Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai/NingBo Vietnam Cap Dong Truc QR540 With Messenger
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SUPER LINK Vietnam Cap Dong Truc QR540 With Messenger
Model Number Vietnam Cap Dong Truc QR540 With Messenger
Type Coaxial
Number of Conductors 1



Product Description

 Specifications

1) Vietnam Market 75 ohm Cap Dong Truc RG540 With Messenger
2) Since 1990 year
3) Application forCCTV/CATV
4) ISO9001 CE ROHS2.0 ETL

Vietnam Market 75 ohm Cap Dong Truc RG540 With Messenger



Product specification:



Coaxial Cable-CATV/MATV

TYPE:

QR540-JCA RG540

Construction

Item

Material

Diameter(mm)

Center Conductor

Copper Clad Aluminum

3.15

Dielectric

Foam PE

13.05

Outer Shield

RF Welded,Solid Aluminum Tube 0.343 Thickness

13.72

Jacket

Medium Density PE

15.49

Electrical Charateristics



Impedance(Ω)

75±3

Capacitance(pF/m)

50±3

Velocity of Propagation(%)

88.0

DC Loop Resistance(Ω/km)

5.28

Maximum Pulling Tension(kgf)

100

Return Loss



5-1000MHZ(dB)

≥22



@Frequency(Mhz)

Max Attenuation(dB/100m)

5

0.46

55

1.54

83

1.90

211

3.12

250

3.38

300

3.71

350

4.03

400

4.33

550

5.12

600

5.38

750

6.07

865

6.56

1000

2.17



Packaging: 1) 500m/wooden reel 2)750m/wooden reel 3)1000m/wooden reel



Applications



(1) CATV-community antenna television.



(2) CCTV-closed-circuit television.



(3) DBS-direct broadcasting satellite.



Coaxial Cable RG6 RG59 RG11



1)  75 ohm cable coaxial rg59
0.81mm CCS /CU+3.66mm FPE+Bonded Al Foil+64*0.12mm Al +6.0mmPVC


2) 75 ohm cable coaxial rg6
1.02mmCCS /CU+4.57mmFPE+Bonded Al Foil+64*0.16mmAl+6.9mmPVC+1.3 Messenger steel

3)  75 ohm cable coaxial rg11

1.63mmCCS/ CU+7.11mmFPE+Bonded Al Foil+128*0.15mmAl+10.03mmPVC+1.83mm Messenger Steel

Packing: 100m/Roll, 200m/Roll, 305m/Wooden drum, 500m/wooden drum

Super linkVietnam Market 75 ohm Cap Dong Truc QR540 With MessengerSuper linkVietnam Market 75 ohm Cap Dong Truc QR540 With Messenger

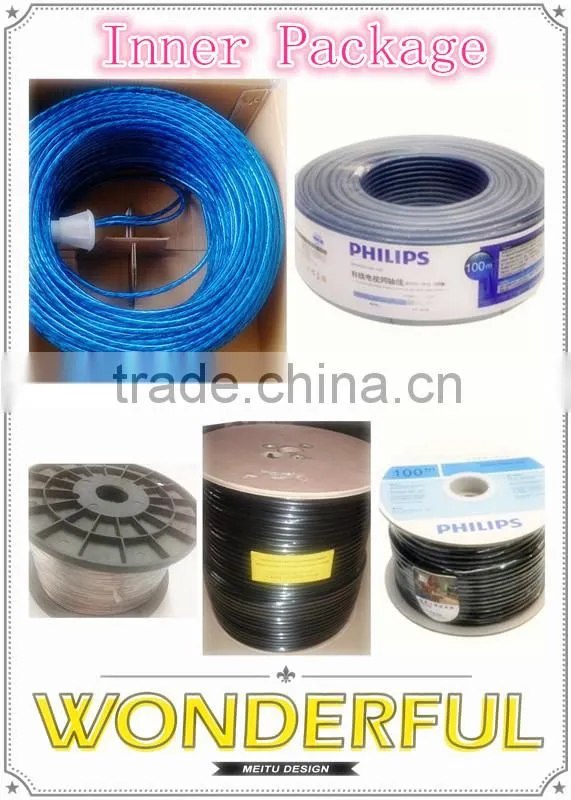

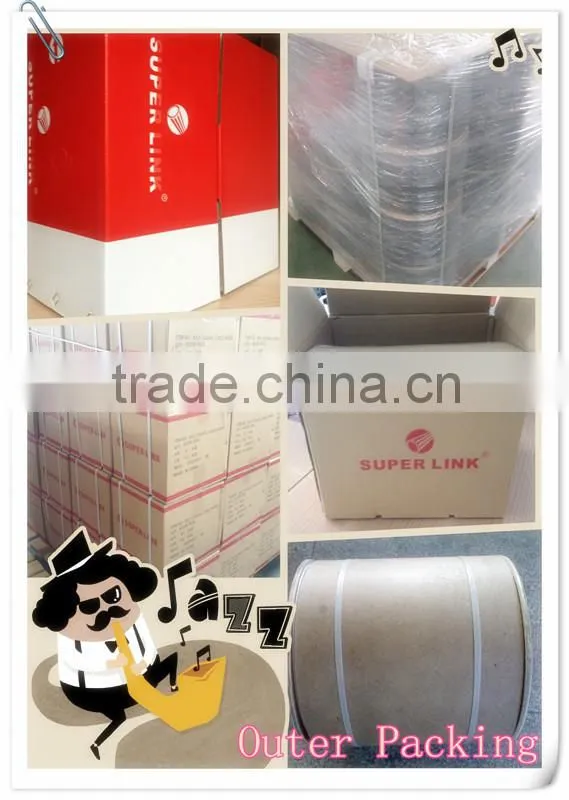

Packaging & Shipping

 Super linkVietnam Market 75 ohm Cap Dong Truc QR540 With MessengerSuper linkVietnam Market 75 ohm Cap Dong Truc QR540 With Messenger

Other Packing Available According To Client's Request Of QR540 Coaxial Cable







Company Information

 We can offer some cables like below:

Super linkVietnam Market 75 ohm Cap Dong Truc QR540 With Messenger

#Power cable
YJV22 0.6/1KV2,VV22 0.6/1KV3,VJV 0.6/1KV4,VV 0.6/1KV5,VLV22 0.6/1KV6,YJV327,VLV 0.6/1KV8,VLV32 0.6/1KV
#Fire-resistant wires and cables
NH—VV 0.6/1KV2,NH—VV22 0.6/1KV3,NH-YJV4,NH-YJV225,BH-BV6,NH-BVR7,NH-KVV,NH-KVV228,NH-BVV,NH-BVV22
#High voltage cable
YJV222,YJLV223,YJV4,YJLV5,YJV32
#Coaxial Cables: OEM CATV CCTV cable
1) RG series Coaxial Cable:Rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316,BT3002 etc.
2) JIS series Coaxial Cable:1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
3) Vatc series Coaxial Cable:17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8
4) TRUNK Cable:412, 500, 540
5) LMR SERIES:LMR200, LMR400, LMR600
#Network Cables: OEM from 1-100 pair
LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7
#Alarm Cables:
Alarm cable 4*0.22  Alarm cable 3*0.5   Alarm cable 8*0.22  Alarm cable 14*0.22
unshield and shield
#POWER CABLE SPEAKER CABLE:
2*0.75MM     2*1.5MM      2*2.5MM     3*2MM
