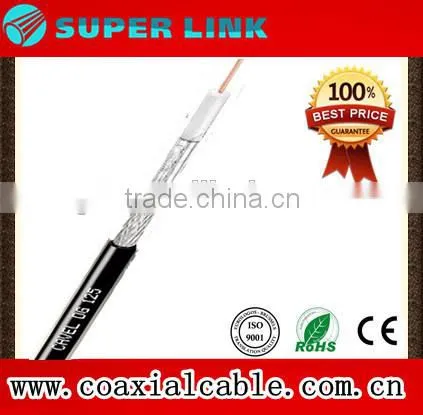

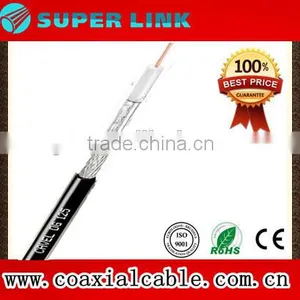

Help CenterSuper LinkDG125 COAXIAL CABLE 75 OHM ITALY Europe Market
Related Products
-
Super Link 1/2'' Radiation Leaky Cable Communication Cable of MineNegotiableMOQ: 30 Boxes -
Super Link H05V-K 300/500V Flexible/soft Cable RVV CE 0.75/1.0mm2NegotiableMOQ: 30 Boxes
-
Super VDE APPROVED H05VV-F Copper Flexible Cable 5*0.75/1.0/1.5/2.5 MM2 300/500VNegotiableMOQ: 30 Boxes
-
Super Link H05VVH6-FLEXIBLE ELEVATOR CABLE 300/500V POWER FLAT CABLE,use on Hoistingequipment, Handling SystemsNegotiableMOQ: 50 Boxes
-
Super Link Factory Feeder Cable 1/2" Super Flex COPPER/Copper Coating Aluminum Conductor PE JacketNegotiableMOQ: 20 Boxes

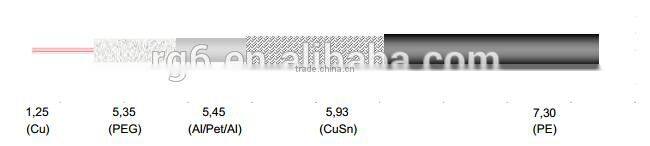

Constructive data
Inner conductor of plain copper (Cu) 1,25 ± 0,03 mm
Dielectric of physical foam polyethylene (PEG) 5,35 ± 0,10 mm
Water repellent sealing (dielectric) (Jelly1)
Aluminium/Polyester/Aluminium tape longitudinally overlapped (Al/Pet/Al)
Braid of tinned copper wires CuSn)
Braid optical coverage (IEC 96-1) 63 %
Diameter under Sheath 5,93 mm
Outer sheath of Polyethylene - black - with carbonblack (Q4) (PE) 7,30 ± 0,10 mm
Electrical data
Characteristic impedance (@ 200 MHz) 75 ± 3 Ohm
Capacitance (@1kHz) 52 ± 2 pF/m
Velocity factor 85 %
Inner conductor resistance 14 Ohm/km
Outer conductor resistance 12 Ohm/km
Loop resistance 26 Ohm/km
Insulation voltage of the sheath (spark test) 5 kV
Maximum current (Ieff) 10,00 A
Structural return loss (SRL)
5 - 470 MHz >30 dB
470 - 1000 MHz >28 dB
1000 - 2000 MHz >26 dB
2000 - 3000 MHz >22 dB
Screening attenuation (SA) Transfer impedance
30 - 1000 MHz >90 dB 5 - 30 MHz < 0,5 mOhm/m
1000 - 2000 MHz >90 dB
2000 - 3000 MHz >90 dB
Mechanical data
Connector
