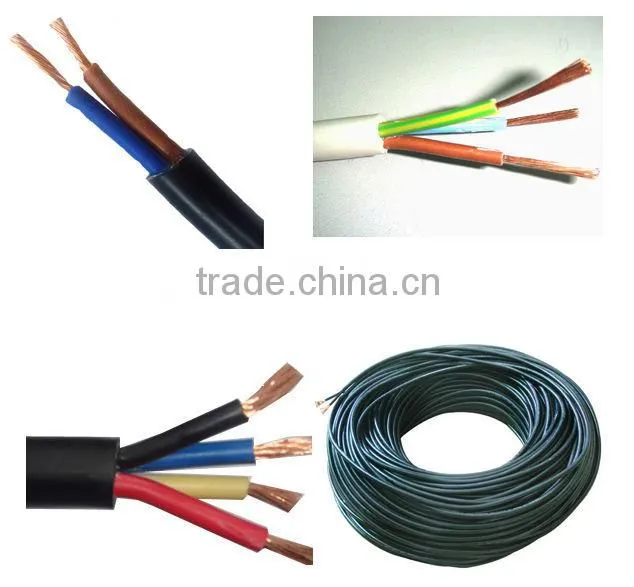

Help CenterSuper Link H05V2V2-F/H05V2V2H2-F 300/500V Copper PVC Insulation Wire Electrical/industrial Wires
Related Products
-
Super LinkDG125 COAXIAL CABLE 75 OHM ITALY Europe MarketNegotiableMOQ: 30 Boxes -
Super Link 1/2'' Radiation Leaky Cable Communication Cable of MineNegotiableMOQ: 30 Boxes
-
Super Link H05V-K 300/500V Flexible/soft Cable RVV CE 0.75/1.0mm2NegotiableMOQ: 30 Boxes
-
Super VDE APPROVED H05VV-F Copper Flexible Cable 5*0.75/1.0/1.5/2.5 MM2 300/500VNegotiableMOQ: 30 Boxes
-
Super Link H05VVH6-FLEXIBLE ELEVATOR CABLE 300/500V POWER FLAT CABLE,use on Hoistingequipment, Handling SystemsNegotiableMOQ: 50 Boxes
Application and Description
These cables are suitable for domestic premises, kitchen, office for light service or light portable
apparatuses. With their special insulation and sheath compounds these cables are adapt for apparatus in
kitchen and heating and for use in zones with high temperature (like lighting system apparatuses) without
contact with warm parts and radiations. Unsuitable for outdoor use, in industrial and agricultural buildings
or non-domestic portable tools. The maximum conductor temperature in normal use: 90C.While high
temperature use, skin contact must be avoided.

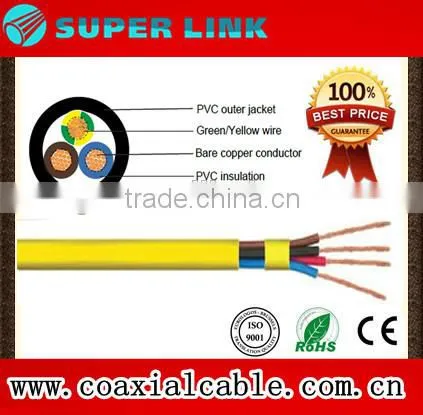

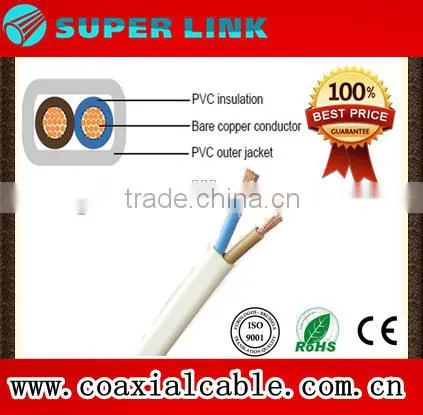

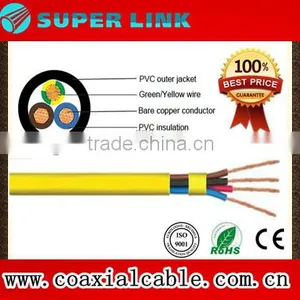

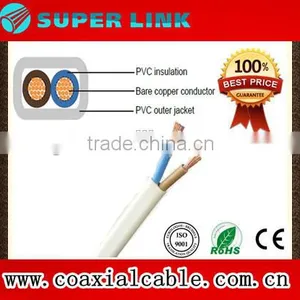

Cable Construction
- Bare copper fine wire conductor
- Stranded to DIN VDE 0295 cl. 5, IEC 60228 cl. 5 and HD 383
- PVC core insulation T13 to VDE-0281 Part 1
- Green-yellow grounding (3 conductors and above)
- Color coded to VDE-0293-308
- PVC outer jacket TM3
Technical Characteristics
- Working voltage: 300/500 volts
- Test voltage: 2000 volts
- Flexing bending radius: 15 x Ø
- Static bending radius: 4 x Ø
- Flexing temperature: +5º C to +90º C
- Static temperature: -40º C to +90º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km
Cable Parameter
Welcome to contact us!!!!
