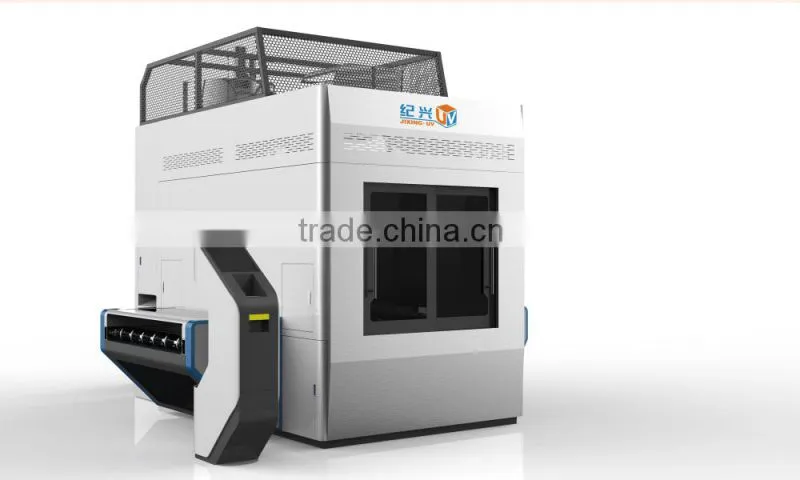

Wood /Furniture /MDF Automatic Spray Painting Machine
Specification:
|
Transport system: 1, Equipment fixed on the solid steel frame, conveying system configuration a imported PE conveying belt, antistatic, wear resistance, easy to change and convenient cleaning. 2, The cleaning system of conveyor belt is divided into two independent stages, the first stage is to scratch the surface of mechanical conveyor belt (paint recovery system), the second stage is to soak conveyor belt, and at the same time cleaning the surface, then to dry and air dry. 3, The paint from the conveyer belt surface scrape down can automatic recovery to the collection, if its chemical properties can be recovery, can all recycling. 4, Precision cleaning system design and operating criteria the solvent daily consumption to a minimum. 5, The conveyor speed use inverter control for different speed painting requirements.
| |
Technical parameters | |
Model: |
JXLV-SAS-1300 |
Overall dimensions(mm): |
4370 × 5250 ×3160 |
Total power(kw): |
4.64 |
Effective working width(mm): |
150-1300 |
Effective processing length(mm): |
300-3000 |
Effective processing thickness(mm): |
3-50 |
Oil drive: |
Kremlin plunger pump |
Air pressure(Mpa): |
0.4-0.6 |
Servo system(kw): |
1.5 Yaskawa |
PLC: |
C6OR FP – X Panasonic |
Gun brand: |
Kremlin KREMLIN high pressure spray gun |
Gun caliber(mm): |
0.37 |
Number of blast gun: |
4 |
Import and export fan powerkw): |
5.5 Import: Y132M2-6 7.5 Export: Y132S 2-2 |
Import and export fan brand: |
HP(Hewlett Packard) |
Delivery(finish)speed(m/min): |
0 ~ 5 |
Delivery ways: |
Belt type |
Paint types: |
PU, UV, NC, AC, water-based paint,etc |
Control system: |
Optical sensors |
Tounch screen: |
MT - 610i (exterior: 280 x 210 x 50) |
Light curtain: |
1.5 m measuring light wheelbase 10mm |
Guide rail: |
Taiwan HGW45HC - 2300 2strip |
Machine weight(kg): |
5500 |
We are in Shanghai fair :
Package
wooden standard carton is suitable for the export and long transportation,free fumigation.
Payment
We usually accept T/T, payment terms : 30% TT deposit, the balance before shipping.
Shipment
Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can
help you to handle the export ,we can accept the factory price(EXW.),
We arrange the local shipment,which’s easy for you to control the transportation cost.
Warranty
- 1 years warranty for the machines.
- Any warranty shipping cost to us is responsible by buyer
FAQ
What is the curtain coating machine for wood floor ,Furniture warranty?
Warranty: Warranty is valid for 12 months in the hypothesis of machinery use for an 8-hour
working shift. Warranty does not cover parts subject to normal wear or damaged by improper
use, incident or negligence of the Buyer or by reasons external to normal use (i.e. change in the
power net, caused by thunderstorm, etc.) Transport costs and labour are excluded.
What about the UV coating machine for wood floor working size?
Usually 300mm . Also It can produce as clients requests.
What is the minimum quantity for order?
One set for order.
Do you have stock product to sell?
Maybe , It’s depend on which machine ,you like?
Do you inspect the finished products?
Yes, Each step of production products will be camed out inspection by QC department
before shipping.
How do you ship the finished products?
As the machines is too big , so usually it is shipping by Sea
What’s the Payment term?
Payment term: 30% TT deposit , the balance before shipment.
What’s the delivery time?
Within 25 days after get the payment
Why choose LINZE?
1,Professional:We are professional in woodworking machinery field for more than 10 years.
2,Excellent:Our machines get great reputation and produce nice quality product for customers all over the world.
3,Economial:We offer the good price with great quality because we do high-volume production manufacturer.
How to contact me?
More details please contact : Alice Xia
Skype ID: alicexia568
email : alice (at )
Company name : Jixingyuan Technology Joint-stock Co., Ltd.
Add.: No.18, Yongxing North Road, Luohe Economic and Technological
Development Zone , Huai Nan city, AnHui Province,China
TEL.: 0086 554 2915218 | F: 0086 554 2915218
Mobile:0086 13309641539(whatsapp and wechat are available)
