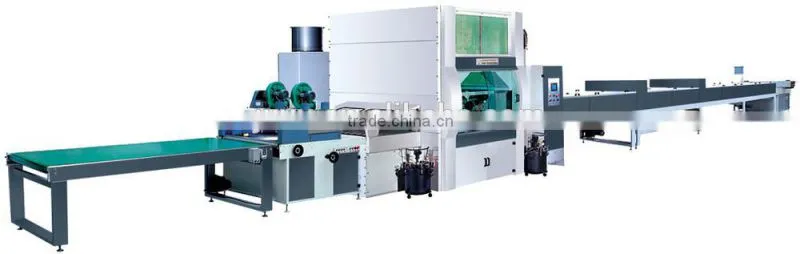

Wooden panel or plate material Spray Paint Machine
MDF /Plywood/timber pieces Kitchen door Spraying Machine
Electric Spray Paint Machine
JXLV-SAS-1300
Suit for continuing surface UV/PU/NC/AC/water-based paint spraying according to panel work piece, such as pannel funiture, timber door, cabinet door, art work, decor board and glass.
Profile Spraying machine
1. It has high automatization;
2. Symmetrical spraying surface; accurate control; high producing efficiency and high cost performance.
3. It is suitable for UV, PU, PE, NC, etc.
4. It has UV lacquer reclaiming equipment to reduce waste. The filtering of air outlet system can avoide environmental pollution.
5. It can be used alone and also can be equipped with line drier to make the work piece dried as soon as spraying finished
Technical Parameter:
Model: |
JXLV-SAS-1300 |
Overall dimensions(mm): |
4370 × 5250 ×3160 |
Total power(kw): |
4.64 |
Effective working width(mm): |
150-1300 |
Effective processing length(mm): |
300-3000 |
Effective processing thickness(mm): |
3-50 |
Oil drive: |
Kremlin plunger pump |
Air pressure(Mpa): |
0.4-0.6 |
Servo system(kw): |
1.5 Yaskawa |
PLC: |
C6OR FP – X Panasonic |
Gun brand: |
Kremlin KREMLIN high pressure spray gun |
Gun caliber(mm): |
0.37 |
Number of blast gun: |
8 |
Import and export fan powerkw): |
5.5 Import: Y132M2-6 7.5 Export: Y132S 2-2 |
Import and export fan brand: |
HP(Hewlett Packard) |
Delivery(finish)speed(m/min): |
0 ~ 7 |
Delivery ways: |
Belt type |
Paint types: |
PU, UV, NC, AC, water-based paint,etc |
Control system: |
Optical sensors |
Tounch screen: |
MT - 610i (exterior: 280 x 210 x 50) |
Light curtain: |
1.5 m measuring light wheelbase 10mm |
Guide rail: |
Taiwan HGW45HC - 2300 2strip |
Machine weight(kg): |
5500 |
1. Wooden standard carton is suitable for the export and long transportation,free fumigation.
2. Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.), We arrange the local shipment,which’s easy for you to control the transportation cost.
Service:
1,Professional in woodworking machinery Especially in Paint Finishing System and Sanding Machines Series.
2,Supply single set machine as well as whole production lines.
3, Solve all kinds of technical problems and provide professional service.
4,12 Hours online service
Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd
Established in 2003, Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd. is engaged in the production, sale and service of UV surface&edge coating equipments, such as Roller coaters, UV curing equipments, Curtain coaters, Spraying equipments, Robot series and so on.
Jixingyuan is currently the fastest growing painting equipmet company in China market. it has a good reputation and ambitious development goals. Also own an excellent team, keep learning experience of domestic and oversea. Struggle for becoming the leading enterprise in the field of painting equipment.
Our Team:
1. What is the UV coating machine MDF warranty?
Warranty: Warranty is valid for 12 months in the hypothesis of machinery use for an 8-hour
working shift. Warranty does not cover parts subject to normal wear or damaged by improper
use, incident or negligence of the Buyer or by reasons external to normal use (i.e. change in the
power net, caused by thunderstorm, etc.) Transport costs and labour are excluded.
