High Quality Robot Painting Machine
- 50 Piece / Pieces per Month
- Shenzhen
- T/T
- electrostatic flocking machine
- powder coating lab test machine electrostatic powder experiment spray machine optiflex 2 type
- electrostatic powder coating machine experiment lab powder spray machine optiflex 2 type
- It is suitable for high pressure cascade of spray gun of various types of spray machine
- Zinc Ash Recovery Furnace zinc ash recovery machine Zinc Ash Separator zinc ash regeneration unit
- Electric adjustment multi - mode liquid crystal intelligent electrostatic powder spraying machine
Product Details
Condition: | New | Type: | Coating Spray Gun | Substrate: | wood |
Coating: | Other, spraying machine | Place of Origin: | Guangdong, China | Brand Name: | JXY |
Model Number: | JX2050-A | Voltage: | 380v | Power(W): | 3Phase:AC200V(+10%-15%)5060HZ(-2%- +2%) |
Dimension(L*W*H): | 1500*1600*2000MM | Weight: | 370KG | Certification: | CE, ISO9001-2000 |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

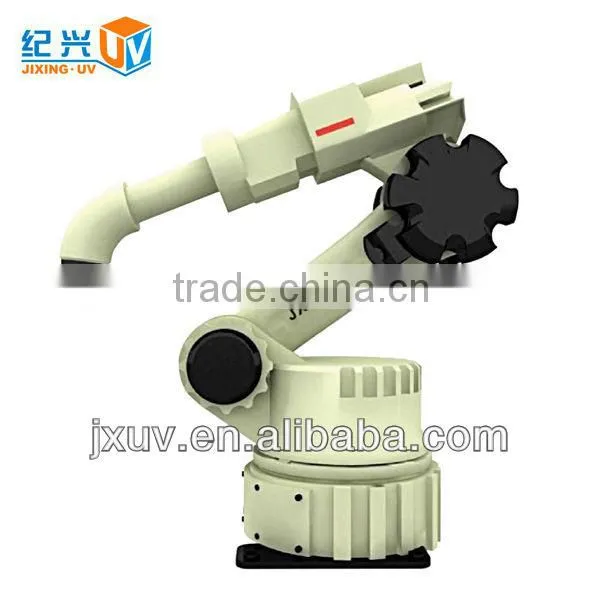

Spraying robot arm for any kinds of material / Wood door/ furniture robotic machine JX2050-A
Features:
1.The entire series including the Robot Arm, Rotating Supply Platform,
Spraying and Control System and Oil Supply System.
2.Adopted Japan ASAHI-AGB40 automatic spraying guns.
3.Display Panel can be translated in English or as per your request
language.
4.Different kinds of installation, such as vertical, inclined and
hanging saves the spraying space and cut the cost.
5.Can be widely equipped with exterior equipment.
6.Action Radius=2050mm, Max Speed=2500m/s.
7.Integrated equipment guarantee: 1year (except spraying guns and
diaphragm pump!)
Items | Specifications | ||||
Model | JX2050-A | ||||
Freedom of motion | 6Shaft | ||||
Drive style | Holoaxial AC Servormotor +Absolute value coder | ||||
Placement style | Standing or hoisting | ||||
Max Action Range | Arm | J1 | Involution | 360° | |
J2 | Nether Action Angle | 180° | |||
J3 | Upper Action Angle | +5°-163° | |||
Wrist | J4 | Rotation 1 | ±260° | ||
J5 | Action Angle | ±140° | |||
J6 | Rotation 2 | ±260° | |||
Accepted Inertia Moment | Arm | J1 | Involution | 34.1/N.M | |
J2 | Nether Action Moment | 34.1/N.M | |||
J3 | Upper Action Moment | 9.8/N.M | |||
Wrist | J4 | Rotation 1 | 0.97/kg. m² | ||
J5 | Action Moment | 0.4/kg. m² | |||
J6 | Rotation 2 | 0.1/kg. m² | |||
Max Speed | 2.0M/S | ||||
Place overlap precision | ±0.5mm | ||||
Max Vertical Distance | 2767mm | ||||
Max Vertical Distance | 2035mm | ||||
Rated Load | 10KG(spraying guns included) | ||||
Temperature Application | 0°-45° | ||||
Humidity | 20-85%RH without Frost | ||||
Display Panel | 40Words,12Rows,4.7″No Backlight LCD | ||||
Power | 3Phase:AC200V(+10%-15%)5060HZ(-2%- +2%) | ||||
Weight | 370KG |
Robot arm for any kinds of materials:
1. Wooden standard carton is suitable for the export and long transportation,free fumigation.
2. Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.), We arrange the local shipment,which’s easy for you to control the transportation cost.
Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd
Established in 2003, Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd. is engaged in the production, sale and service of UV surface&edge coating equipments, such as Roller coaters, UV curing equipments, Curtain coaters, Spraying equipments, Robot series and so on.
Jixingyuan is currently the fastest growing painting equipmet company in China market. it has a good reputation and ambitious development goals. Also own an excellent team, keep learning experience of domestic and oversea. Struggle for becoming the leading enterprise in the field of painting equipment.
