Help CenterAutomatic Robot Arm Spraying System
Related Products
-
Robot Arm/Transfer RobotUS$ 35,000 - 40,000MOQ: 1 Piece -
Door Automatic Spraying Machine for Kitchen Cabinet/floorUS$ 30,000 - 36,000MOQ: 1 Set
-
MDF / Plywood Panels Automatic Spray Machine/Spraying Production LineUS$ 74,000 - 95,000MOQ: 1 Set
-
High Quality Robot Painting MachineUS$ 35,000 - 40,000MOQ: 1 Piece
-
Door Automatic Spray MachineUS$ 28,000 - 35,000MOQ: 1 Set

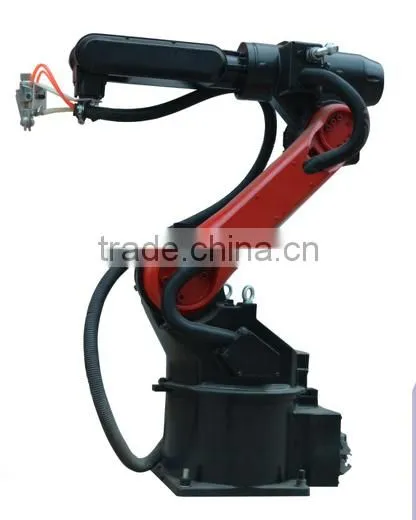

Spraying Robot Arm
JX2050-A
Features:
1.The entire series including the Robot Arm, Rotating Supply Platform,
Spraying and Control System and Oil Supply System.
2.Adopted Japan ASAHI-AGB40 automatic spraying guns.
3.Display Panel can be translated in English or as for your request
language.
4.Different kinds of installation, such as vertical, inclined and
hanging saves the spraying space and cut the cost.
5.Can be widely equipped with exterior equipment.
6.Action Radius=2050mm, Max Speed=2500m/s.
7.Integrated equipment guarantee: 1year (except spraying guns and
diaphragm pump!)
Items |
Specifications |
||||
Model |
JX2050-A |
||||
Freedom of motion |
6Shaft |
||||
Drive style |
Holoaxial AC Servormotor +Absolute value coder |
||||
Placement style |
Standing or hoisting |
||||
Max Action Range |
Arm |
J1 |
Involution |
360° |
|
J2 |
Nether Action Angle |
180° |
|||
J3 |
Upper Action Angle |
+5°-163° |
|||
Wrist |
J4 |
Rotation 1 |
±260° |
||
J5 |
Action Angle |
±140° |
|||
J6 |
Rotation 2 |
±260° |
|||
Accepted Inertia Moment |
Arm |
J1 |
Involution |
34.1/N.M |
|
J2 |
Nether Action Moment |
34.1/N.M |
|||
J3 |
Upper Action Moment |
9.8/N.M |
|||
Wrist |
J4 |
Rotation 1 |
0.97/kg. m² |
||
J5 |
Action Moment |
0.4/kg. m² |
|||
J6 |
Rotation 2 |
0.1/kg. m² |
|||
Max Speed |
2.0M/S |
||||
Place overlap precision |
±0.5mm |
||||
Max Vertical Distance |
2767mm |
||||
Max Vertical Distance |
2035mm |
||||
Rated Load |
10KG(spraying guns included) |
||||
Temperature Application |
0°-45° |
||||
Humidity |
20-85%RH without Frost |
||||
Display Panel |
40Words,12Rows,4.7″No Backlight LCD |
||||
Power |
3Phase:AC200V(+10%-15%)5060HZ(-2%- +2%) |
||||
Weight |
370KG |
||||
Robot arm for any kinds of materials:
1. Wooden standard carton is suitable for the export and long transportation,free fumigation.
2. Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.), We arrange the local shipment,which’s easy for you to control the transportation cost.
Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd
Established in 2003, Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd. is engaged in the production, sale and service of UV surface&edge coating equipments, such as Roller coaters, UV curing equipments, Curtain coaters, Spraying equipments, Robot series and so on.
Jixingyuan is currently the fastest growing painting equipmet company in China market. it has a good reputation and ambitious development goals. Also own an excellent team, keep learning experience of domestic and oversea. Struggle for becoming the leading enterprise in the field of painting equipment.
Our Team:
1. What is the UV coating machine MDF warranty?
Warranty: Warranty is valid for 12 months in the hypothesis of machinery use for an 8-hour
working shift. Warranty does not cover parts subject to normal wear or damaged by improper
use, incident or negligence of the Buyer or by reasons external to normal use (i.e. change in the
power net, caused by thunderstorm, etc.) Transport costs and labour are excluded.
2. Why choose JXY?
1,Professional:We are professional in woodworking machinery field for more than 10 years.
2,Excellent:Our machines get great reputation and produce nice quality product for customers all over the world.
3,Economial:We offer the good price with great quality because we do high-volume production manufacturer.
3.How to contact me?
More details please contact with Jasmine
Skype ID:jasminelovesiki
Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd
Tel:86-755-27539937
Headquarter:19F, Zhongya R&D Building; Songgang Town; Baoan District; Shenzhen
Factory: 10 Block, Jinjiali Industry Zone, Bitou; Songgang Town; Baoan District; Shenzhen
