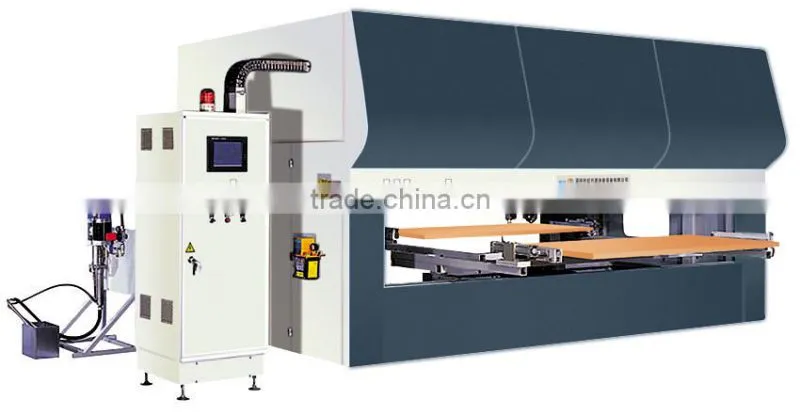

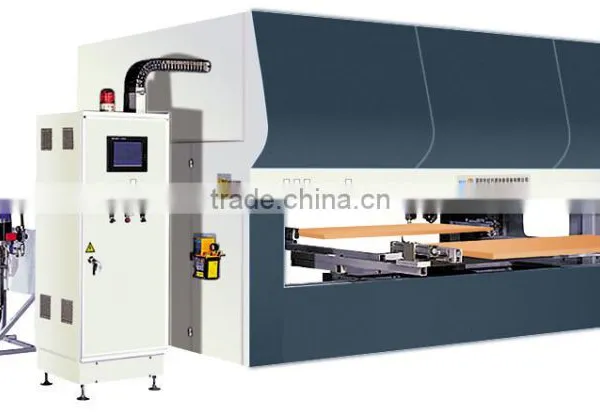

Door Automatic Spraying Machine for Interior Door / Kitchen Cabinet Door, Spray Painting Equipment with 1300mm, High Quality Made-in-China
JXUV-DAS-1300
Features:
- CNC automatic painting machine which consist by the operator (machine body), the controller and servo drive system.
- It is a kind of humanoid operation, automatic control, repeatable programming, can be perform a variety of spraying work in the three dimensional space.
- For many varieties flexible manufacturing. It has a important role for stability and improve product painting quality, production efficiency, improve the labor intensity and the rapid upgrading of the product.
- Door automatic spraying equipment is suit for continuing surface spraying according to the heteropmorphosis workpiece,such as plastic-steel door,aluminium alloy door,timber door, cabinet door and glass.
- Saving operation time, easy to operation.
| Model | JXUV-DAS-1300 |
| Working Width(mm) | 300-1000 |
| Working Height(mm) | 10-50 |
| Working Length(mm) | 600-2500 |
| Paint Drive | Diaphragm Pump |
| Air Pressure(Mpa) | 0.4~0.6 |
| Servo System(kw) | 0.85 0.75 0.37 Taiwan Delta Servo System |
| PLC | FP-X C6OR Panasonic |
| Spraying Gun Brand | Japan IWATA |
| Spraying Gun Caliber(mm) | 0.8 |
| Quantity of Spraying Gun | 2 |
| Feeding Speed(min/pic) | 1-5min/piece |
| Convey Method | Rotation Type |
| Total Power(kw) | 3.47 |
| Machine Weight(kg) | 2600 |
| Machine Size(mm) | 4200*2200*1800 |
1. Wooden standard carton is suitable for the export and long transportation,free fumigation.
2. Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.), We arrange the local shipment,which’s easy for you to control the transportation cost.
Service:
1,Professional in woodworking machinery Especially in Paint Finishing System and Sanding Machines Series.
2,Supply single set machine as well as whole production lines.
3, Solve all kinds of technical problems and provide professional service.
4,12 Hours online service
Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd
Established in 2003, Shenzhen Jixingyuan Technology Joint-Stock Co., Ltd. is engaged in the production, sale and service of UV surface&edge coating equipments, such as Roller coaters, UV curing equipments, Curtain coaters, Spraying equipments, Robot series and so on.
Jixingyuan is currently the fastest growing painting equipmet company in China market. it has a good reputation and ambitious development goals. Also own an excellent team, keep learning experience of domestic and oversea. Struggle for becoming the leading enterprise in the field of painting equipment.
