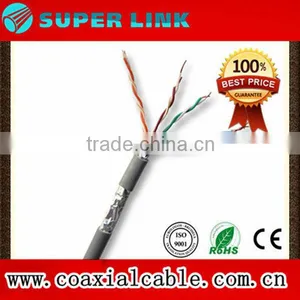

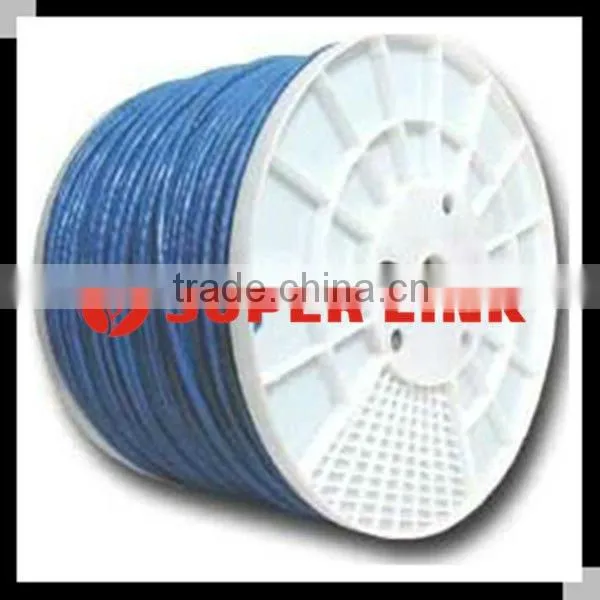

CAT5 Netwrking cable 24AWG FTP1)Conductor: CCAM 24AWG(0.51mm)
2)Insulation: 0.98mmHDPE
3)Jacket: LSZH / PVC
4)Rip cord: Ye
CAT5 Netwrking cable 24AWG FTP
1. Construction
1)Conductor: CCAM 24AWG(0.51mm)
2)Insulation: 0.98mmHDPE
3)Jacket: LSZH / PVC
4)Rip cord: Yes
5)Application: Data networking and communication, support 1000BASE-T Ethermt.
2.Electrical & Transmission characteristics
Frequency |
Attenuation |
Pr-Pr NEXT |
Power Sum NEXT |
ACR Min.dB |
Pr-Pr FEXT Min.dB/100m |
Power Sum FELEXT |
0.772 |
1.8 |
67.0 |
64.0 |
65.2 |
66.0 |
63.0 |
1 |
2.0 |
65.3 |
62.3 |
63.3 |
63.8 |
60.8 |
4 |
4.1 |
56.3 |
53.3 |
52.2 |
51.7 |
48.7 |
8 |
5.8 |
51.8 |
48.8 |
46.0 |
45.7 |
42.7 |
10 |
6.5 |
50.3 |
47.3 |
43.8 |
43.8 |
40.8 |
16 |
8.2 |
47.3 |
44.3 |
39.1 |
39.7 |
36.7 |
20 |
9.3 |
45.8 |
42.8 |
36.5 |
37.7 |
43.7 |
25 |
10.4 |
44.3 |
41.3 |
33.9 |
35.8 |
32.8 |
31.25 |
11.7 |
42.9 |
39.9 |
31.2 |
33.9 |
30.9 |
62.5 |
17.0 |
38.4 |
35.4 |
21.4 |
27.8 |
24.6 |
100 |
22.0 |
35.3 |
32.3 |
13.3 |
23.8 |
20.8 |
Electrical characteristics for Cat 5e UTPProperty |
Nominal Value |
Tolerance |
Unit |
ref |
Characteristic impedance @ 100 MHz |
100 |
± 15 |
Ω |
[10] |
Nominal characteristic impedance @ 100 MHz |
100 |
± 5 |
Ω |
[10] |
DC-Loop resistance |
≤ 0.188 |
|
Ω/m |
[10] |
Propagation speed |
0.64 |
|
c |
[10] |
Propagation delay |
4.80-5.30 |
|
ns/m |
[10] |
Delay skew < 100 MHz |
< 0.20 |
|
ns/m |
[10] |
Capacitance at 800 Hz |
52 |
|
pF/m |
[10] |
Inductance |
525 |
|
nH/m |
[11] |
Corner frequency |
≤ 57 |
|
kHz |
[11] |
Max tensile load, during installation |
100 |
|
N |
[10] |
Wire size |
AWG-24 (0.205 mm² ) |
|
|
[10][12] |
Insulation thickness |
0.245 |
|
mm |
[10] |
Maximum current per conductor |
0.577 |
|
A |
[12] |
Temperature operating |
-55 to +60 |
|
°C |
[10] |
