Factory CAT5e network Lan cable1.4pair 24AWG 0.5mm solid copper/CCA
2.Rohs CE Certification
3.OEM
4.Free Sample

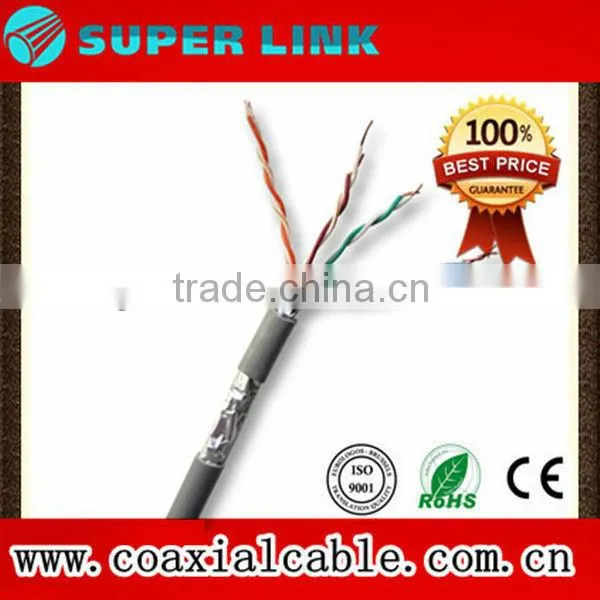

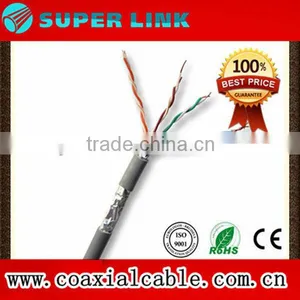

Factory CAT5e network Lan cable
1.4pair 24AWG 0.5mm solid copper/CCA
2.Rohs CE Certification
3.OEM
4.Free Sample
Construction | |
Conductor |
24AWG Copper 0.50±0.02mm |
Insulation |
HDPE 0.92±0.06mm |
Cores/Pairs |
8/4 |
Sheath |
5.2±0.1mm PVC/LSOH/PVC(UV)/PE |
Mechanical Properties | |
Elongation |
Min. 300% |
Temperature Range |
-20 up to +75°C |
Tensile strength |
Min.1.68Kg/mm2 |
Electrical Properties (at 20°C) | |
Conductor Resistance |
Max.9.38Ω/100m |
Resistance Unbalance |
Max.2% |
Insulation Resistance |
Max.150Ω/Km |
Mutual Capacitance |
Max.5600pF/100m |
Capacitance Unbalance |
Max.330pF/100m |
Impedance |
100±15 |
Spark Test |
2000v |
Velocity of Propagation |
67% |
frequency |
Attenuation |
RL |
Next |
PS Next |
(MHz) |
(db/100m) |
(dB) |
(dB) |
(db/100m) |
1MHz |
2.0 |
20 |
65.3 |
63.5 |
4MHz |
4.1 |
23 |
56.3 |
54.2 |
8MHz |
5.8 |
24.5 |
52.4 |
50.5 |
10MHz |
6.6 |
25 |
51.3 |
49.2 |
16MHz |
8.2 |
25 |
49.3 |
47.4 |
20MHz |
9.3 |
25 |
48.8 |
46.9 |
25MHz |
10.4 |
24 |
45.3 |
43.4 |
31.25MHz |
11.7 |
23 |
43.0 |
41.8 |
62.5MHz |
17.0 |
21 |
39.2 |
37.2 |
100MHz |
22.0 |
20 |
36.3 |
34.4 |
155MHz |
28.1 |
19 |
35.5 |
33.6 |
200MHz |
32.4 |
19 |
31.8 |
29.9 |
240MHz |
36.0 |
18 |
30.6 |
28.7 |
300MHz |
41.0 |
18 |
29.2 |
27.0 |
350MHz |
44.9 |
17 |
28.0 |
25.6 |
