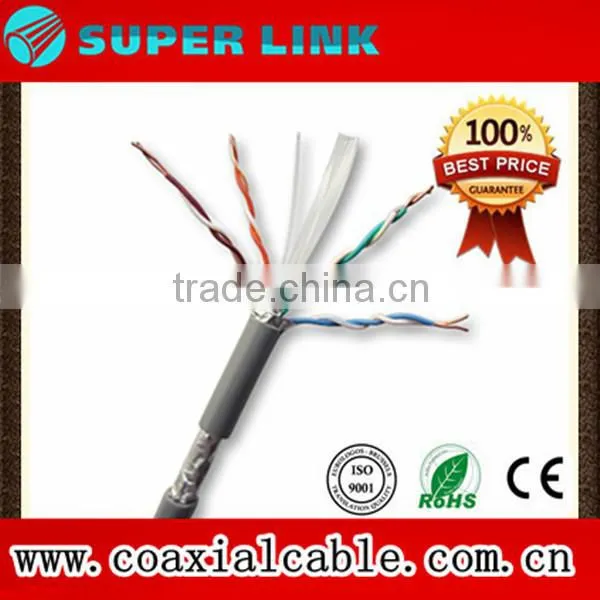

CAT7 LAN CABLE

Specifications

HIGH QUALITY,LESS LOSS, ROHS ,CE CERTIFICATION
FLUKE TESTING

1. SPECIFICATION

 1)  INNER CONDUCTOR

* conductor: solid bare copper

*  Dia.: 23AWG

  2)  INSULATION

   Raw material : F-PE

  QTY:4 twisted pairs

 Insulation Dia. : 1.45mm

 Average thickness: 0.4325 mm

 Minimum point thickness: 0.43mm

 3) Shielding: Al foil

 4) OVERALL SHIELDING

 * Raw material of the screen: 96/0.10mm TC wire braiding

  * Coverage rate:≥40%

 5)  RIP CORD: Nylon thread

 6) JACKET

* Sheath material: LSZH or  PVC

 * Nominal Dia.: 7.5 ± 0.2mm

  * Average thickness: 0.65mm

 * Minimum point thickness: 0.55mm

2,    Mechanical Properties

Conductor insulation material: halogen free Foam/Skin material

 Cable jacket material: halogen-free, flame-retardant material

 Application area: dray as well as humid rooms

 Temperature (moved): 0°C to 50°C

Operating temperature: -20°C to +60°C

 Min. bending radius for one-time bending: 4×O.D.

 Min. bending radius during installation: 8×O.D.

3,   Electrical properties

 Loop impendence: 130 W/km

Highest impendence difference: 2%

Insulation resistance >5000 MW x km

 Impendence Z₀ at 1 500MHz: 100 W ± 15%

 Impendence Z₀ at 1 350MHz: 100 W ± 18%

 Impendence Z₀ at 1 600MHz: 100 W ± 25%

Surface transfer impendence: < 100 MW per Meter at 10MHz

Earthing symmetry db/BZL = 1000m > 46dB at 64kHz

 Earthing symmetry db/BZL = 100m > 40dB at 1MHz

Earthing symmetry db/BZL = 100m > 20dB at 100MHz

Mutual capacitance: 43pF/m

 Highest earthing-coupling: 0,001MHz: 1000 pF/km

Propagation speed at > 10MHz (NVP*c): 0,79c

 Signal propagation delay >10MHz: 4,2ns/m

 Skew: <25ns/100m

RIP CORD( optional)

LSOH JACKET
. RoHS Certification

.PACKAGE:305M/EASY PULL BOX
