Zigbee Wireless Magnetic Vehicle Detection Sensor for Road Traffic Adaptive

 Based on magnetic detection and wireless sensor network, WVD sensors acquire the dynamic traffic flow information and send through wireless channel to user systems. Rosim ITS is successes in creating the WVD series wireless vehicle detector products and WAP series wireless access point, which build up a realtime wireless vehicle detection solution and traffic information monitoring system

Wireless vehicle detector for car counting system is designed for pursuit of high efficiency and low cost traffic application systems. Based on magnetic detection and wireless networks, Wireless speed sensors acquire the dynamic traffic real-time data information and send through wireless channel to user traffic systems.

The hardware of vehicle detector is high accuracy and performance, many of projects are well completed with this wireless vehicle presence detection in India, Turkey, France, USA,Philippine,Italy,German,Uraguay,Columbia,Spain, Australia,Canada and Romania,etc.

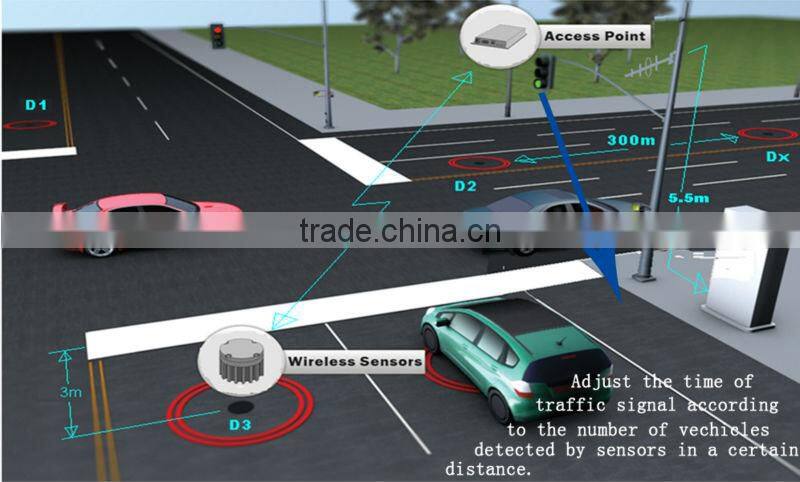

 1) Adaptive Traffic Signal Control System

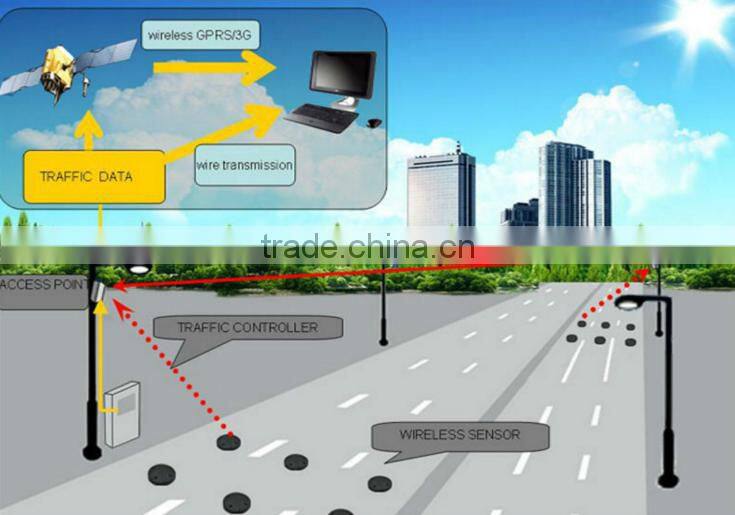

When the vehicle passed the sensor, it will send the signal at the same time, The WAP will collect all the data and forward it to the traffic controller, so the traffic controller will automatic adjust the red light and green light for vehicles.

2) Traffic flow detection system

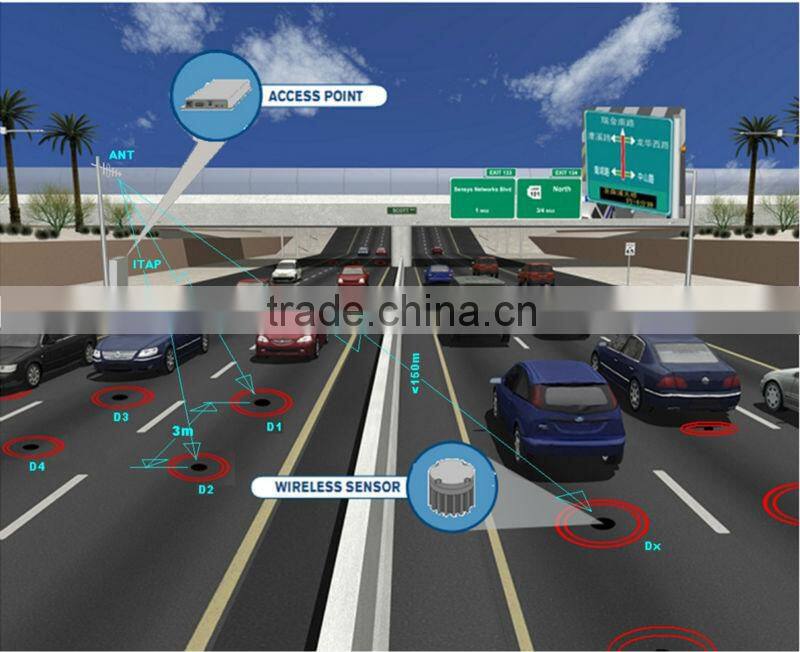

Detector is installed in specified road, detect every vehicle pass by, and transmit the real-time information to traffic management systems via wireless access points. The user systems can calculate the traffic flows by analysing the data.

3) Corridor management

There two vehicle detector at the entrance for detecting a coming and leaving vehicle and transmitting the information.When vehicle passed the detector will trigger the camera take a picture.

4) Urban traffic guiding

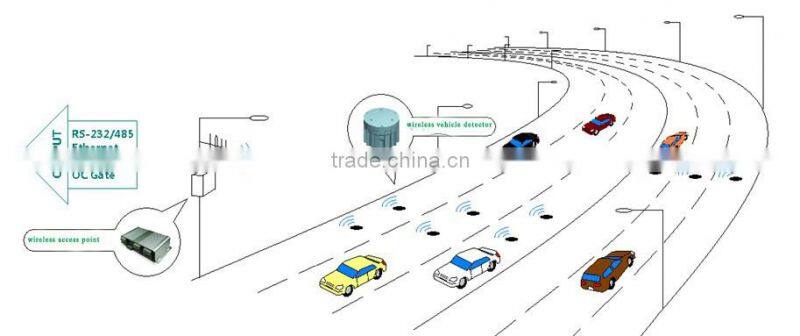

Through lots of wireless vehicle detectors installed on many roads, the networks analyse the collected information from access points, and calculate which routes are more free-flowing. Drivers can know which route is better from the information on the LED board.

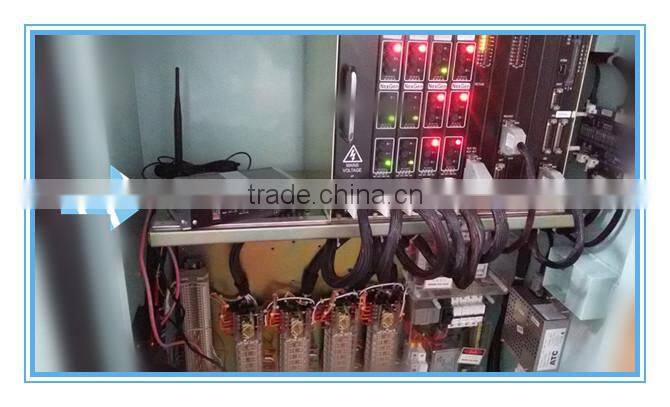

Connection with ATC control system

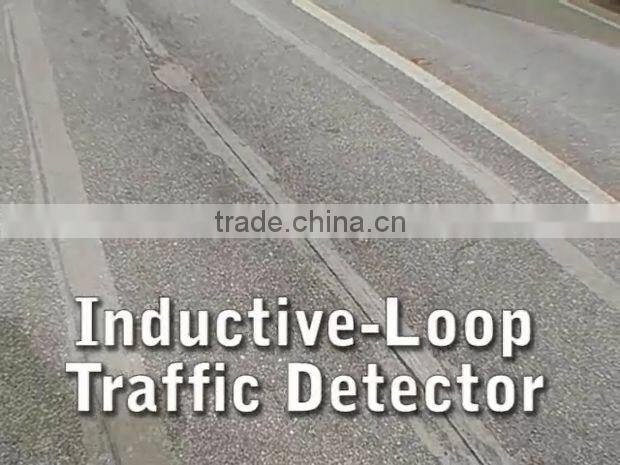

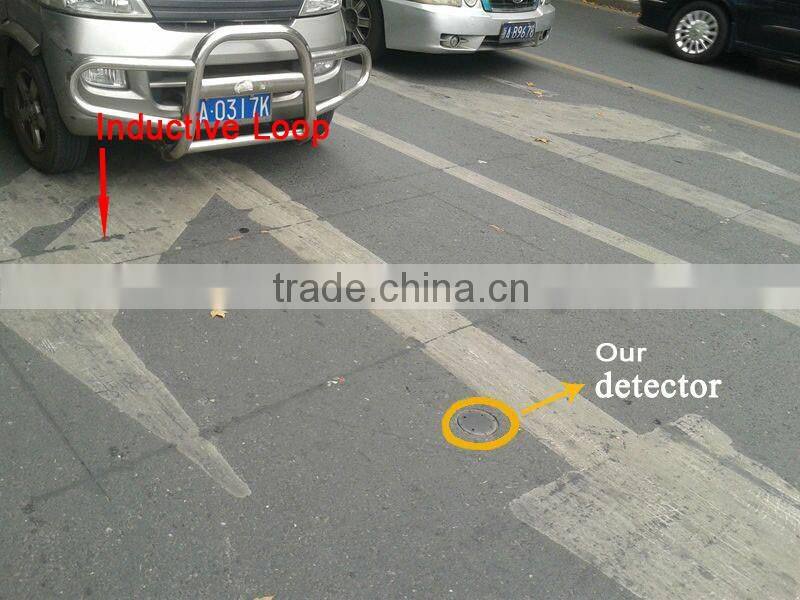

Compare to loop detector

Easy and fast installation, more importantly, there is almost no damage to the road and easy to maintance.

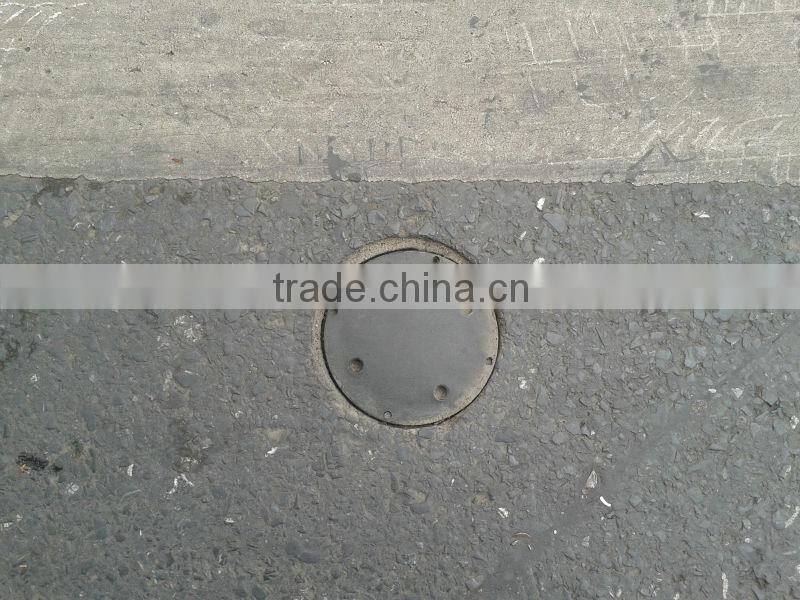

Our detector

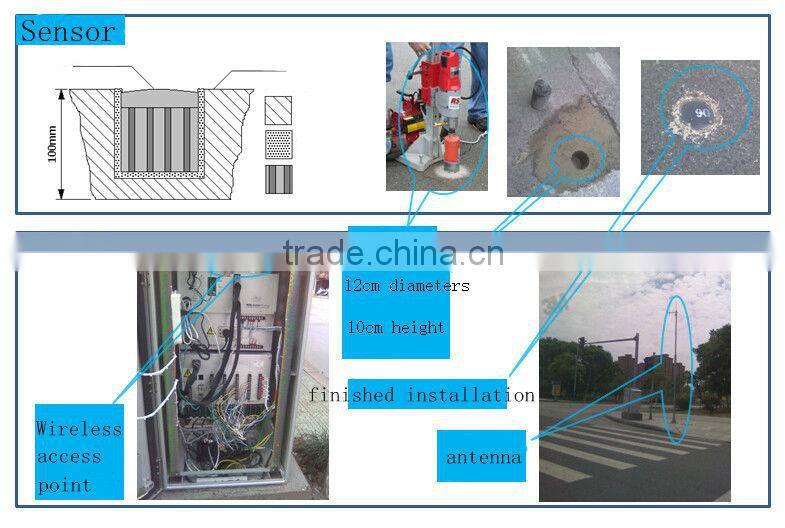

Installation

a) Flush mount installation with no wires or lead-in cabling433Mhz, 120m communication

b) distance from sensor to acess point, no need repeater

c) Impervious to weather

d) 0.5-1.5m detection range( adjustable)

e) 97% accuracy,superior dependsbility and extensibility

f) 10-year battery life

g) 5 mins installation and deployment reduces road closures and labor cost

h) Self-calibrating, self-tuning

i) Re-usable and support wireless OTA upgrade

j) Patented, easily integrate with traffic controller,camera or other devices

k) Easy configuration

 Rosim ITS provides our customers high quality wireless loop vehicle detector for vehicle detection traffic signal control system solutions, all the products support wireless updating, which makes it easily to maintain. Also,  Rosim ITS provides 24 hours on-line supports.
