Wireless Magnetic Vehicle Detector for Traffic Counting System With Wireless Zigbee Sensor Network

Wireless magnetic vehicle detector for traffic counting system with wireless zigbee sensor network

 ROSIM traffic system include Wireless Vehicle Detector(WVD) and Wireless Access Point(WAP).
Wireless Vehicle Detector sensors is for detecting vehicle presence with traffic solution and intelligent traffic system, and access point is for collecting the data from sensors and transmit to traffic controller, camera or platform by RS232,Ethernet, GPIO,GPRS or 3G,etc.
ROSIM's  WVD-130 Wireless Vehicle Detection System provides an accurate, dependable,and highly cost-effective detection network for all vehicle detection applications.

Working Principle

By capture the tiny change of magnetism caused by the passing vehicle, WVDs (Wireless Vehicle Detector) calculate the vehicle velocity, length, type and occupy rate rapidly, and then send these information to the WAP(Wireless Access Points), which will receive all the on line WVD’s information and transmit these data to the user's systems through RS-232/485, Internet, GPRS, etc..

WVD-130x

WVD-130x wireless vehicle detection sensor is designed for pursuit of high efficiency and low cost ITS traffic application systems. Based on technology of magnetic detection and uPower® wireless sensor network, WVD -130x sensors can be easily installed on road in few minutes without any wiring to acquire dynamic traffic flow information with no maintenance for many years.

WAP-348x

WAP-348x  Wireless Access Point acts as a gateway between user applications and wireless vehicle detection network formed among the WVD sensors installed on the road surface. WAP-348x manages the network and collects data from all the sensors, and on the other hand, provides data interface to user traffic systems.

Real-time Traffic Counting with LED screen

This system can be used for urban transportation and also used for parking lot entrance and exit to counting the traffic vehicle quantity.

Adaptive Traffic Signal Control System

When the vehicle passed the sensor, it will send the signal at the same time, The WAP will collect all the data and forward it to the traffic controller, so the traffic controller will automatic adjust the red light and green light for vehicles.

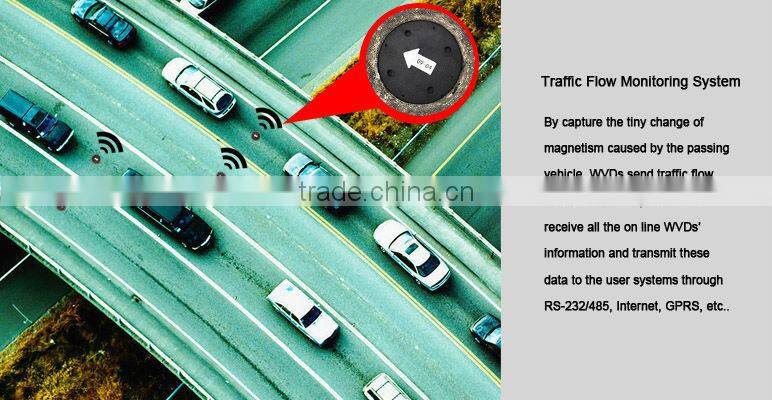

Traffic flow detection system

Detector is installed in specified road, detect every vehicle pass by, and transmit the real-time information to traffic management systems via wireless access points. The user systems can calculate the traffic flows by analysing the data.

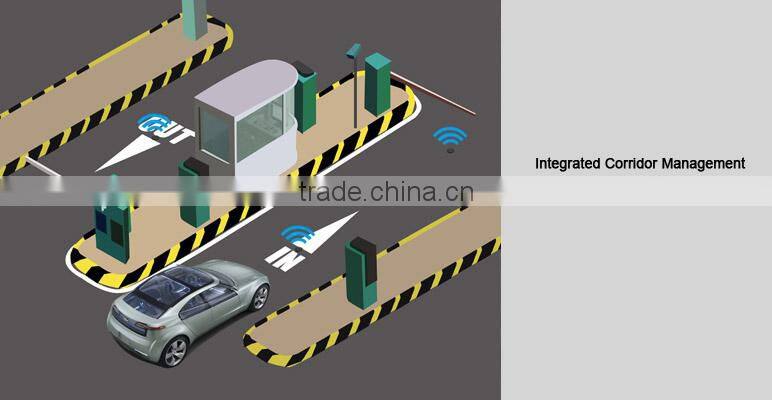

Corridor management

There two vehicle detector at the entrance for detecting a coming and leaving vehicle and transmitting the information.When vehicle passed the detector will trigger the camera take a picture.

Speed enforcement

 Based on magnetic detection and wireless sensor networks, WVD sensors acquire the dynamic traffic flow information and send the information to Access Point installed nearby. User systems receive and process the information from Access Point, and issue instructions to electronic cameras.

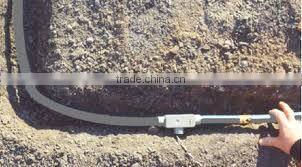

Compare with loop detector

Our service

Rosim ITS provides our customers high-quality wireless vehicle detecting products and solutions, all the products support wireless updating, which makes it easily maintained, and 1 year quality guarantee .
