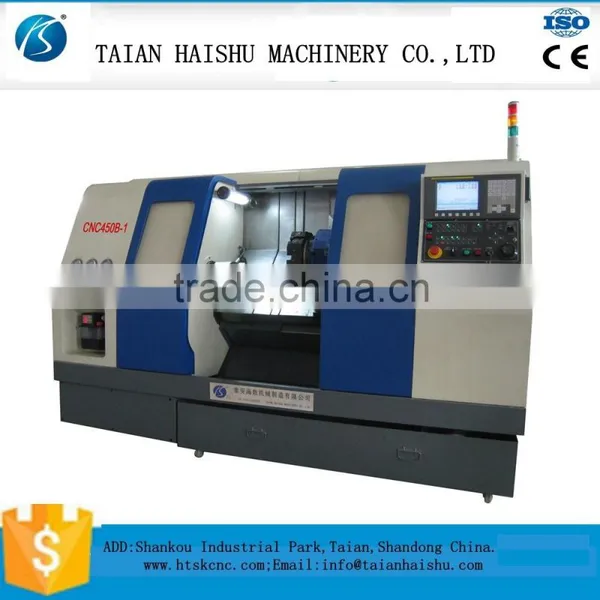

CNC(B-1) slant bed CNC lathe Series
Standard configuration:
1) CNC system: GSK980TDc
2) Spindle 3-gears frequency control speed
3) hydraulic center solid chuck
4) Horizontal 12-station hydraulic turret
5) 3-axis hard rail
6) Electric tailstock,hydraulic sleeve
7) Turning cooling system
8) Automatic lubrication system
9) Whole protection system
OPTIONALS
1) CNC system : SYNTEC , Fanuc systems, Siemens system
2)Servo spindle unit
3) Hydraulic hollow chuck
4) 3-axis line rail
5) Programming electric tailstock
6) Automatic feeder
7) Automatic chip conveyor
8) Automatic pick pieces equipment
9) Automatic protective door
10) Loading and unloading robots
No. |
Item |
Unit |
specifications |
|||||||
|
CNC150 (B-1) |
CNC250(B-1) |
CNC350 (B-1) |
CNC450 (B-1) |
CNC550 (B-1) |
||||||
1 |
Max.rotation diameter on lathe’ body |
mm |
150 |
250 |
350 |
450 |
550 |
|||
2 |
piece lengt |
mm |
750/1000/1500 |
|||||||
3 |
Max.turning diameter |
mm |
100 |
200 |
300 |
400 |
500 |
|||
4 |
Spindle nose type and code |
mm |
A6 |
A6 |
A8 |
A8 |
A12 |
|||
5 |
Hydraulic chuck |
mm |
Φ80 (4") |
φ160 (6") |
φ200 (8") |
φ250 (10") |
φ300 (12") |
|||
6 |
Front spindle bore taper |
|
1:20 |
|||||||
7 |
Spindle bore |
mm |
38 |
40 |
60 |
60 |
75 |
|||
8 |
Spindle form |
|
Programmable three gears automatic hydraulic speed change |
|||||||
9 |
Spindle frequency control speed range |
rpm |
20-3000 |
|||||||
10 |
X/Z Rapid traverse |
mm/min |
20000 |
|||||||
11 |
Main servo motor power |
kW |
3.7 |
5.5 |
7.5 |
11 |
15 |
|||
12 |
X/Z-axis motor max.torque |
N.m |
6 |
10 |
10 |
10 |
15 |
|||
13 |
Power specifications |
V |
380±10%. 50Hz±1Hz |
|||||||
14 |
Turret transfer time (one station) |
s |
1.6(12) |
|||||||
15 |
Turret transfer repeat positioning accuracy |
|
0.005" |
|||||||
16 |
X-axis travel |
mm |
100 |
150 |
200 |
300 |
350 |
|||
17 |
Z-axis travel |
mm |
1100/1350/1850 |
|||||||
18 |
B-axis travel |
mm |
1100/1350/1850 |
|||||||
19 |
Hydraulic turret form |
|
Horizontal 8-station servo power turret |
Horizontal 12-station servo power turret |
||||||
20 |
Tailstock sleeve diameter/ travel |
mm |
45/100 |
50/100 |
65/100 |
70/100 |
80/100 |
|||
21 |
Tailstock tapered bore taper |
Morse |
3# |
4# |
4# |
4# |
5# |
|||
22 |
Tailstock form (programming optional) |
|
Electric drive |
|||||||
23 |
Tailstock sleeve form |
|
Hydraulic drive |
|||||||
24 |
Knife handle size |
mm |
16×16 |
20×20 |
20×20 |
25×25 |
25×25 |
|||
25 |
Net weight |
kg |
3000 |
3500 |
4200 |
5000 |
6200 |
|||
26 |
Size(L×W×H) |
mm |
2700/3000/3500×1650×1900 |
|||||||
