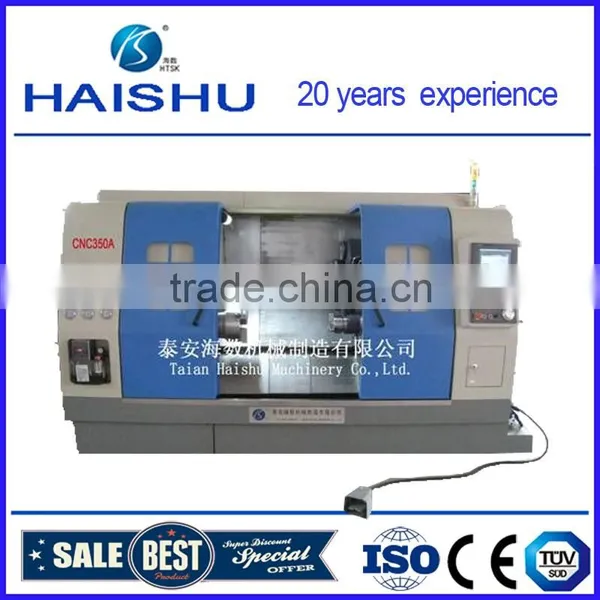

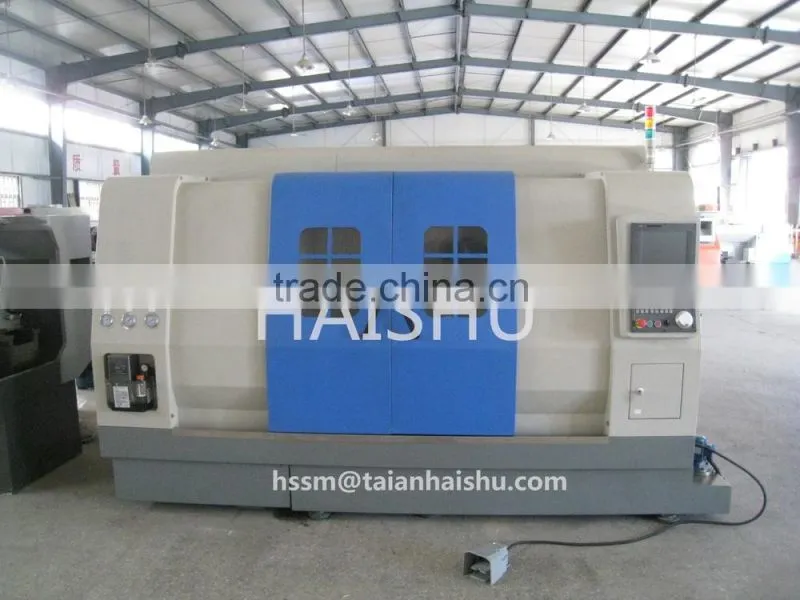

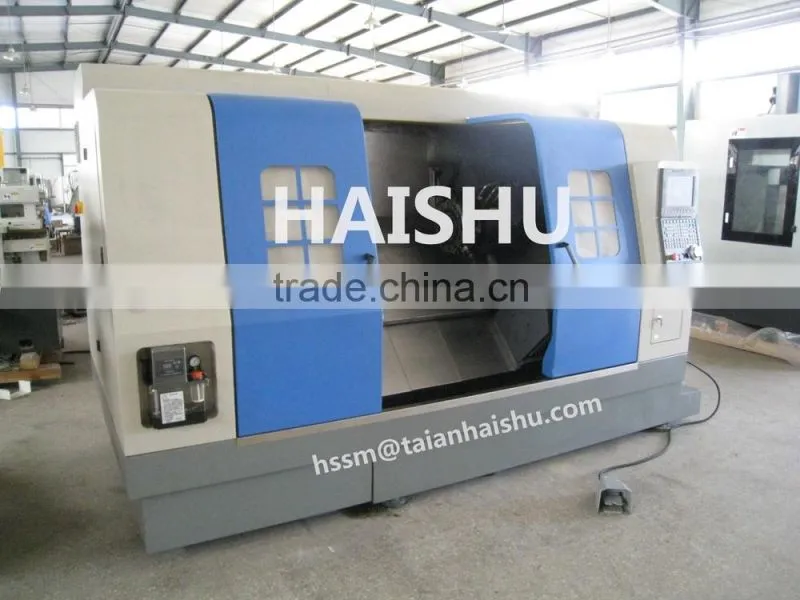

cnc metal slant bed lathe with live tool CNC350A turning milling center

FOB Price

US$ 20,000 - 100,000 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	350MM	Place of Origin	Shandong, China
Brand Name	HAISHU	Model Number	CNC350A
Voltage	380v	Power(W)	3700w
Dimension(LWH)	2000X1350X1750mm	Weight	3000KG
Certification	CE,ISO,TUV	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

cnc metal slant bed lathe with live tool CNC350A turning milling center

CNC350A Main specification

No.	Item	Unit	parameter
1	Bed maximum turning diameter	mm	350
2	Maximum turning length Z1	mm	750/1000/1500
3	Maximum turning diameter	mm	300
4	Spindle nose type and code	mm	A6
5	Hydraulic chuck		100/80mm
6	Front spindle bore taper		1:20
7	Spindle bore	mm	60
8	Maximum load-bearing chucked components	kg	50
10	2 - servo spindle motor speed	mm/min	0-8000
11	Rapid traverse X / Z	mm/min	40000
12	CS1; CS2 main servo motor power	kW	3.7
13	Turret power axis max speed rapidly	rpm	6000-12000
14	X1;servo motor maximum torque	N.m	6
15	Z1;Z2 servo motor maximum torque	N.m	10
16	Power Specifications	v	380±10%. 50Hz±1Hz
17	Carrier transfer time (one station)	s	1.6(Horizontal 12)
18	Carrier transfer repeat positioning accuracy	mm	0.005”
19	X1 axis travel	mm	100
20	Z1-axis travel	mm	350/450/550
21	The Z2 axis Vice spindle travel	mm	650/750/850
22	Biaxial dynamic docking concentricity	mm	0.004

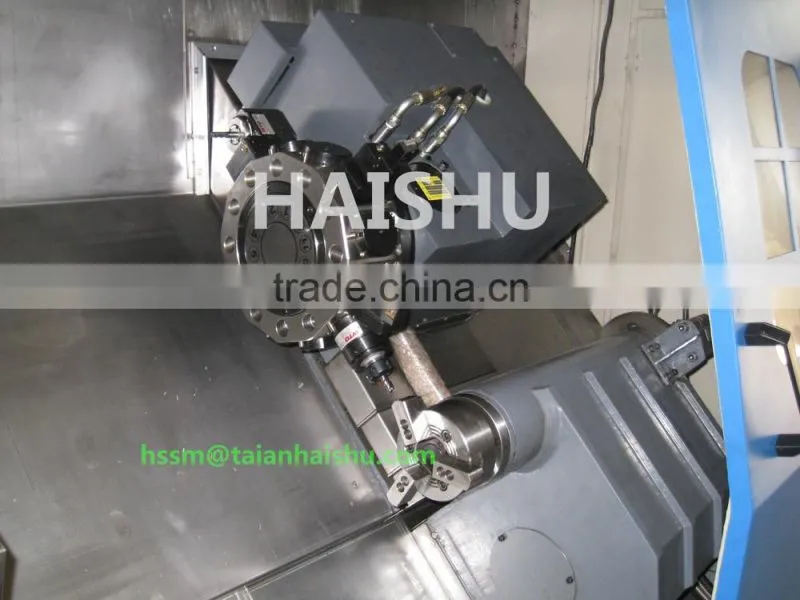

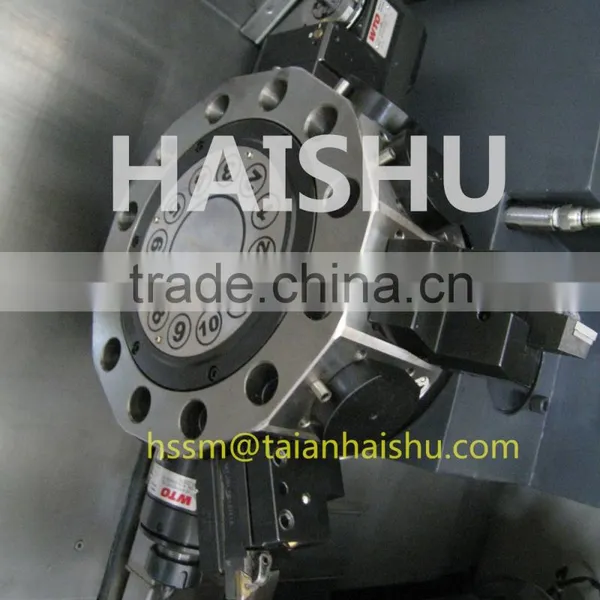

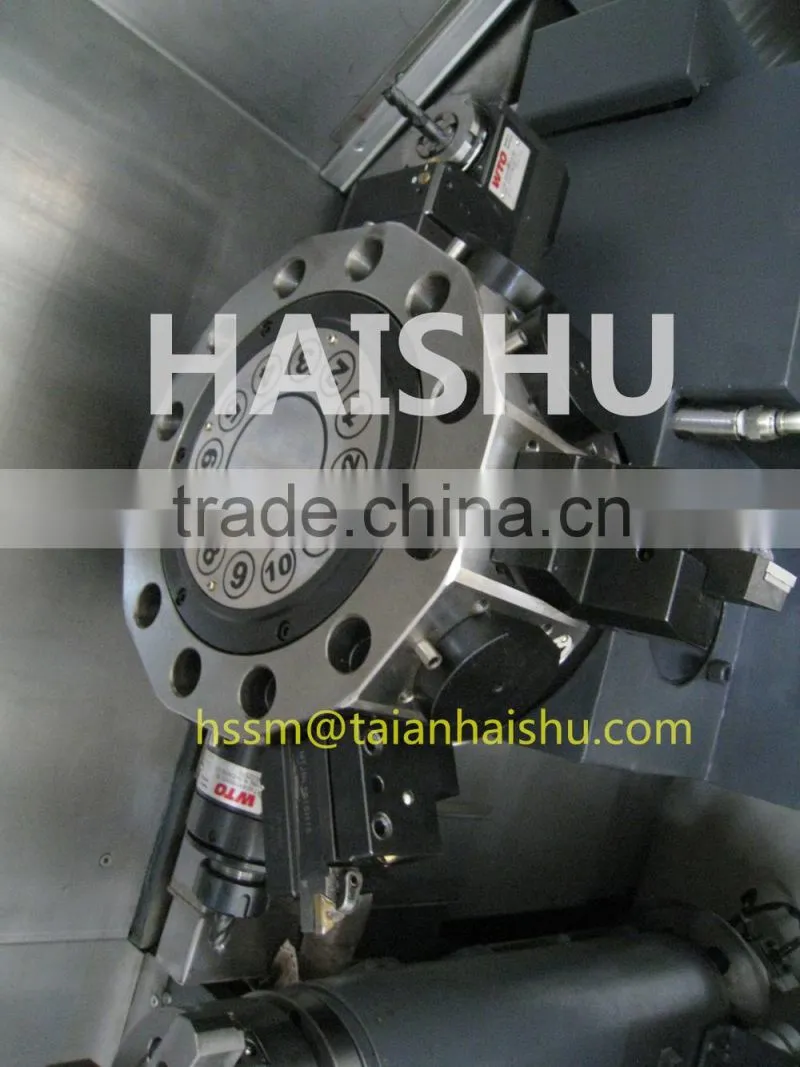

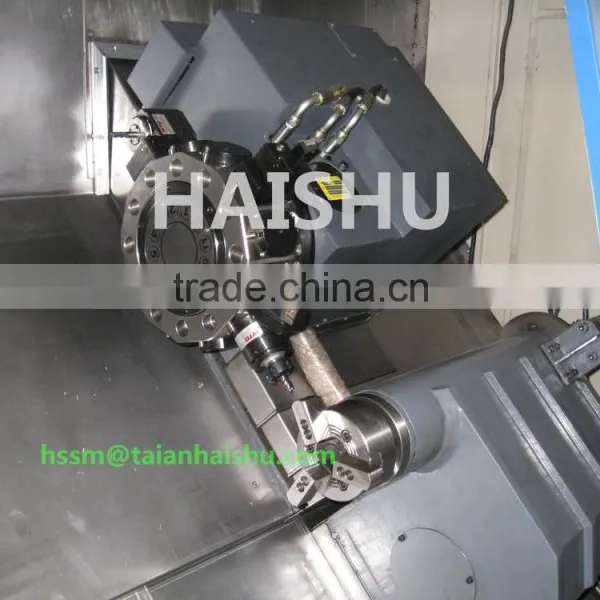

23	Hydraulic servo turret form		Horizontal 12-station power
24	Arbor size	mm	20×20
25	Machine weight	kg	3000
26	Outline dimension(L×W×G)	mm	2000×1350×1750

Standard configuration:

1.Taiwan control system.

2.Hydraulic solid chuck 100

3.Cutting cooling system

4.X.Z axis linear guide P and ball mast C4

5.The spindle unit and motor

6.Horizontal 12 station servo turret

7.Bearing P4

8.Fully enclosed protection system

If you are interested in cnc metal slant bed lathe with live tool CNC350A turning milling center, welcome to leave a message or send the inquiry to understand the details of machine.
