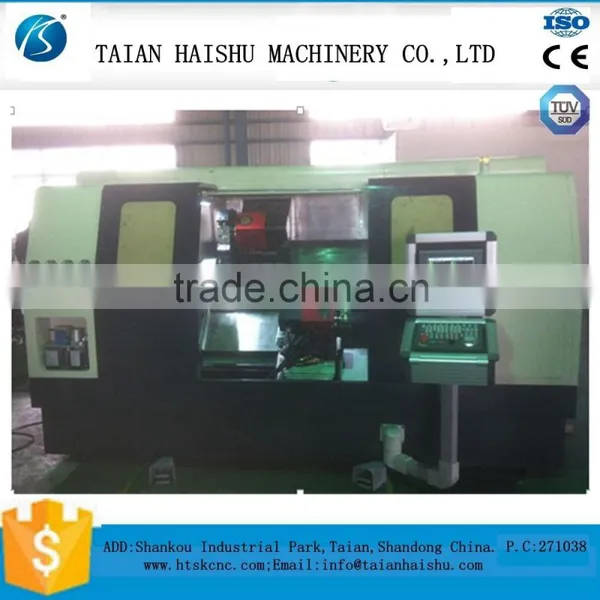

CNC(T)Series two spindle two turret CNC turning center
BASIC CONFIGURATIONS
1) CNC system: SYNTEC
2) Two servo spindle unit
3) Two hydraulic center solid chuck
4) Horizontal 12-station hydraulic servo power turret
5) 5-Axis line rail
6) Turning cooling system
7) Automatic lubrication system
8) The whole protection system
OPTIONALS
1) CNC system: Fanuc, Siemens
2) Increasing the Y-axis
3) Two hydraulic hollow chuck
4) Automatic feeder
5) Automatic chip conveyor
6) Automatic pick pieces equipment
7) Automatic protective door
8) Loading and unloading robots
No. |
Item |
Unit |
specifications |
||||
CNC150T |
CNC250T |
CNC350T |
CNC450T |
CNC550T |
|||
1 |
Max.rotation diameter on lathe’ body |
mm |
150 |
250 |
350 |
450 |
550 |
2 |
piece lengt |
mm |
750/1000/1500 |
||||
3 |
Max.turning diameter |
mm |
100 |
200 |
300 |
400 |
500 |
4 |
Spindle nose type and code |
mm |
A6 |
A6 |
A8 |
A8 |
A12 |
5 |
2-Hydraulic chuck |
mm |
2-φ80 (4") |
2-φ160 (6") |
2-φ200 (8") |
2-φ250 (10") |
2-φ300 (12") |
6 |
Front spindle bore taper |
|
1:20 |
||||
7 |
Spindle bore |
mm |
38 |
40 |
50 |
60 |
75 |
8 |
2- Servo spindle speed range |
mm/min |
0-4000 |
||||
9 |
X/Z/B Rapid traverse |
mm/min |
40000 |
||||
10 |
Cs1,Cs2 main servo motor power |
kW |
3.7 |
5.5 |
7.5 |
11 |
15 |
11 |
C-axis(Turret power axis) motor power |
kw |
2.2 |
3.7 |
3.7 |
5.5 |
5.5 |
12 |
X/Z-axis motor max.torque |
N.m |
6 |
10 |
10 |
10 |
15 |
13 |
Y-axis travel(optional) |
mm |
+20/-20 |
+25/-25 |
+35/-35 |
+45/-45 |
+55/-55 |
14 |
B-axis(sub-spindle) motor max.torque |
N.m |
10 |
15 |
15 |
15 |
20 |
15 |
Power specifications |
v |
380±10%. 50Hz±1Hz |
||||
16 |
Turret transfer time (one station) |
s |
1.6(12) |
||||
17 |
Turret transfer repeat positioning accuracy |
mm |
0.005" |
||||
18 |
X1/X2-axis travel |
mm |
100 |
150 |
200 |
300 |
350 |
19 |
Z1/Z2-axis travel |
mm |
1100/1350/1850 |
||||
20 |
B-axis (sub-spindle) travel |
mm |
1400/1650/2150 |
||||
21 |
2-C axis(Turret power axis) max.speed |
rpm |
4000 |
||||
22 |
Biaxial dynamic docking concentricity |
mm |
0.004 |
0.004 |
0.005 |
0.005 |
0.005 |
23 |
Ydraulic servo turret form |
|
2-Horizontal 12-station servo power turret |
||||
24 |
Turret cylinder clamping force |
kg |
2350 |
2350 |
4240 |
4240 |
4524 |
25 |
Turret hydraulic power source |
kg/cm² |
30 |
30 |
40 |
40 |
45 |
26 |
Power tool holder specification |
|
VDI30 DIN5480 |
VDI30 DIN5480 |
VDI40 DIN5480 |
VDI40 DIN5480 |
BMT60 -ER32 |
27 |
Knife handle size |
mm |
16×16 |
20×20 |
20×20 |
25×25 |
25×25 |
28 |
Net weight |
kg |
3800 |
4600 |
5500 |
6800 |
8200 |
29 |
Size(L×W×H) |
mm |
2700/3000/3500×1650×1900 |
||||
