Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 200mm | Place of Origin | Shandong, China | |
| Brand Name | HAISHU | Model Number | C57A | |
| Voltage | 380v 50hz | Power(W) | 5000w | |
| Dimension(L*W*H) | 1000X700X580 | Weight | 145/160KG | |
| Certification | ISO9001,CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

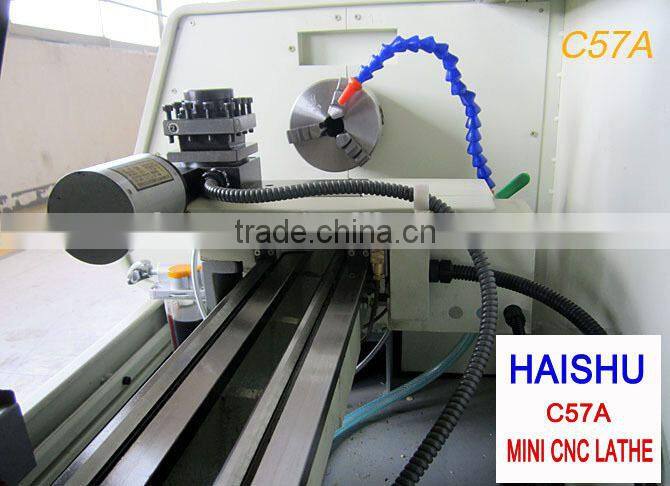

C57A mini cnc lathe
Technical parameters
| |
Maximum turning diameter over bed | 200mm |
The maximum clamping diameter | 80mm |
The length of machine | 400mm |
X-axis maximum stroke | 80mm |
Z-axis maximum stroke | 280mm |
Spindle speed | 300~1750rpm±10% |
The maximum speed | 2000mm/min |
Z fast-moving speed | 2000mm /min |
X fast-moving speed | 1000mm /min |
Position of electric turret | 4 |
Turret angle | 360 ° |
Rotary cutting tool precision | 0.005mm |
Spindle bore diameter | 20mm |

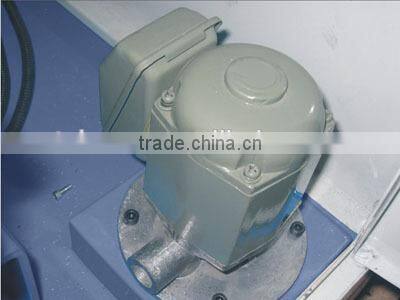

Cooling system | yes |
Threading function | yes |
Spindle tater | MT3 |
Tail shaft taper | MT2 |
Mechanical resolution | 0.0125mm |
Power | 500W |
Handwheel | Electronic handwheel |
Wire rod | C5 |
Weight | 145/160kg |
Dimensions(L*W*H) | 1000× 700 × 580 |
Packing size | 1100 × 800 ×680 |
CNC system | GSK928TEa |
Swing over bed:200MM
Machine bed length:400MM
Max Clamping diameter:80MM
Spindle speed:300-1750RPM
Taper of spindle hole:MT#3
Travel speed of Z axis:2000MM/Min
Travel speed of X axis:1000MM/Min
Travel of Z axis:280MM
Travel of X axis:80MM
Tool charger:4 tools
Taper of tailstock:MT#2
Precision of return back:0.005MM
Output power:500W
CNC Controller:HNC-18XP-TD or GSK 928TEa or Sinumerik 808D
Machine dimension:1000*700*580MM
Packing Size:1100*800*680MM
Net weight/Gross weight:145/160KGS
