CQ0618*300 Mini Table CNC Milling Lathe Machine,Micro CNC Lathe With the Factory Manufacturing Price

FOB Price

US$ 500 - 600 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

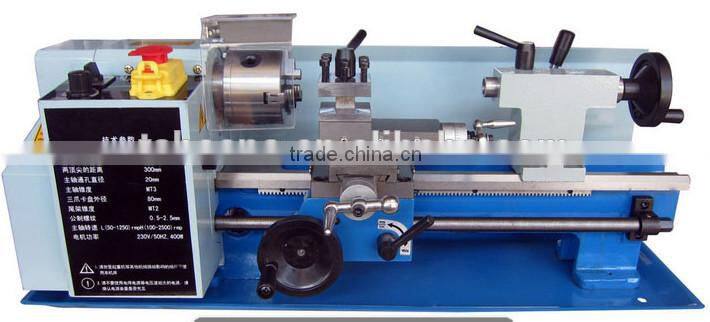

High precision CQ0618*300 Mini CNC Lathe,Micro CNC Lathe with low price

Main features:

1.spindle speed digital display

2.High power dc motor

3.infinitely variable speeds

4.Super audio quenching lathe bed

5.Import speed control unit

Technical parameter for Mini lathe machine :

Distance Between Centers	300mm
Maximum rotating diameter on bed body	180mm
max rotatin diameter on horizontal dragging plate	110mm
Spindle bore taper	MT3
Tailstock sleeve taper	MT2
3 jaw chuck outside diameter	80mm
Spindle bore diameter	20mm
Cross slide travel	65mm
Tool post travel	35mm
Range of metric threads	0.5-2.5mm
Range of Imperial Threads	12-52TPI
Precision of the spindle	0.01mm
Speed of the spindle	50-2500/100-2500RPM
Moto power	400w
Voltage and HZ	230V/50Hz or 120V/60Hz
Net weight	40Kg
Gross weight	45Kg
Dimension size	810×310×320mm
