Micro lathe C57A mini cnc lathe machine price from Haishu China

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	200mm	Place of Origin	Shandong, China
Brand Name	HAISHU	Model Number	C57A
Power(W)	500	Dimension(LWH)	1000X700X580
Weight	145/160KG	Certification	ISO9001:2008,CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

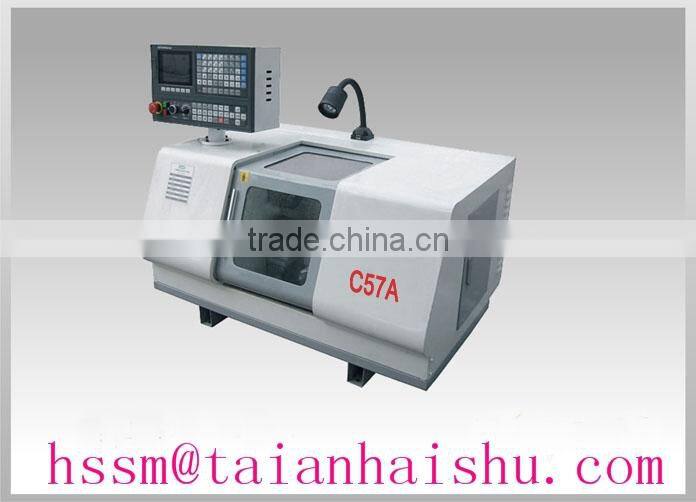

Micro lathe C57A mini cnc lathe machine price from Haishu China

Technical parameters


Maximum turning diameter over bed	200mm
The maximum clamping diameter	80mm
The length of machine	400mm
X-axis maximum stroke	80mm
Z-axis maximum stroke	280mm
Spindle speed	300~1750rpm±10%
The maximum speed	2000mm/min
Z fast-moving speed	2000mm /min
X fast-moving speed	1000mm /min

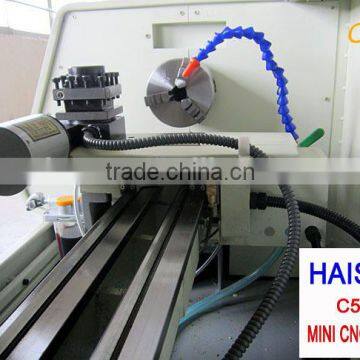

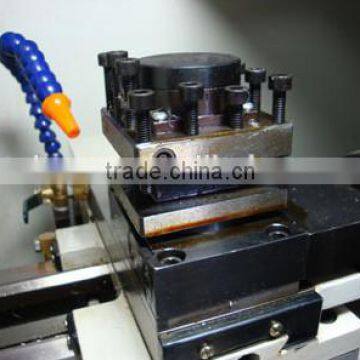

Position of electric turret	4
Turret angle	360 °
Rotary cutting tool precision	0.005mm
Spindle bore diameter	20mm
Cooling system	yes
Threading function	yes
Spindle tater	MT3
Tail shaft taper	MT2
Mechanical resolution	0.0125mm
Power	500W
Handwheel	Electronic handwheel
Wire rod	C5
Weight	145/160kg
Dimensions(LWH)	1000× 700 × 580
Packing size	1100 × 800 ×680
CNC system	GSK928TEa

Swing over bed:200MM

Machine bed length:400MM

Max Clamping diameter:80MM

Spindle speed:300-1750RPM

Taper of spindle hole:MT#3

Travel speed of Z axis:2000MM/Min

Travel speed of X axis:1000MM/Min

Travel of Z axis:280MM

Travel of X axis:80MM

Tool charger:4 tools

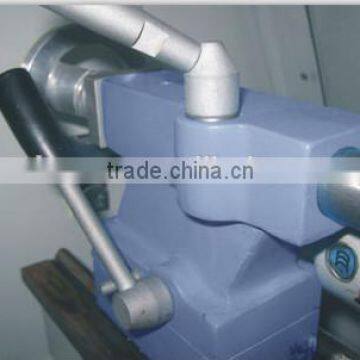

Taper of tailstock:MT#2

Precision of return back:0.005MM

Output power:500W

CNC Controller:HNC-18XP-TD or GSK 928TEa or Sinumerik 808D

Machine dimension:1000*700*580MM

Packing Size:1100*800*680MM

Net weight/Gross weight:145/160KGS

GUARANTEE AND AFTER-SALE SERVICES:

1.one year guarantee for whole machine except of CNC system, which guarantee is three years

2.24-hours technical support by E-mail or telephone

3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD

4.Provide extra accessories for the machine

5.Also provide service of make program according to your drawings

6.Customized or special design is OK.

If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
