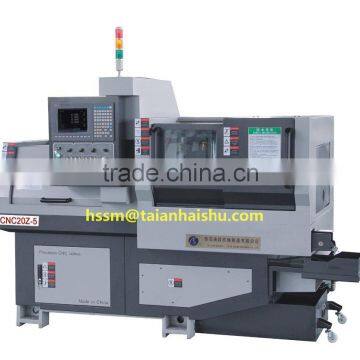

swiss lathe CNC20Z-5 swiss cnc automatic lathe from taian haishu

Name: swiss lathe CNC20Z-5 swiss cnc automatic lathe from taian haishu
Brand: HaiShu
Availability: InStock

FOB Price

USD $50,000 - $80,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port qingdao port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	50mm	Place of Origin	Shandong, China
Brand Name	HaiShu	Model Number	CNC20Z-5
Voltage	380v 50hz	Power(W)	21000w
Dimension(LWH)	260016701950mm	Weight	3220kg
Certification	ce,iso,tuv	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

swiss lathe CNC20Z-5 swiss cnc automatic lathe from taian haishu

1.use imported NSK bearings, THK line rail screw, High progress and high life

2 no guide set, fixed set of free choice, Save material and high yield. Optional

conductance sets.Linkage guide set,Benefit is better.

3 spindle oil cooling type electric spindle, high speed and no dead angle cooling, than ordinary wind cooling electric spindle cooling more uniform, more performance.

4 this machine adopts the absolute operation, no need to switch back to the origin, time saving, labor.

5 flexible and changeable cutter design, matching freely.

6.24 hours continuously electricity, high efficiency, save labor

7.8 inventions, 26 utility model patents, the national patent office legal protection, and cooperation with the Wenzhou chamber of Commerce

8 the overall appearance is generous, the shape is novel and outstanding, and constantly improve and optimize

9.Countershaft Optional boring tool holder,Replaceable power head.One machine easy to achieve

10.after Parts forming,Countershaft Discharging,The conveyor belt automatic out

spindle and countershaft are processing at the same time	√
C1/C2 axis Infinite Indexing	√
Lateral power head	√
countershaft mechanism	√
No guide sleeve	√
Fixed guide sleeve	√
Linkage guide set (optional)	Option
Electric conductivity set (optional)	Option
Horizontal rigid tapping	√
Countershaft rigid tapping	√

Number of tools

out Diameter cutter number	5
Lateral power head	4
Frontal fixation	4
Frontal rotation	Option/2
Countershaft fixation	4(4-8)
Countershaft rotation	no
Total tool number	21

Y2 group of institutional swap combination

1,4 boring cutter2,can change 3 boring cutter+1power head3,can change 2 boring cutter+2 power head4,can change 1 boring cutter +3power head5,cna change 4 power head

Related parameters

Spindle parameters

Spindle hole diameter	The max. bar	Collet type	No set of guide technology	Spindle center to ground height	Spindle unlimited indexing	Spindle once feeding trip	C axis Minimum indexing	C axis Function
Φ22	Φ20	TsugamiS20	yes	975mm	yes	290mm	0.001	yes

System parameters

OS	Spindle countershaft power	Basal rotational speed	Maximum speed	Minimum setting unit	Control axis number	Hand wheel simulation
SYNTEC 200TA	3.7KW	200	8000	0.001mm	8	yes

X/Z axis

Xaxis stroke	Zaxis stroke	Yaxis stroke	X2axis stroke	Z2axis stroke	X/Y/Z/X2/Y2/Z2 axis Servo motor power	X/Y/Z/X2/Y2/Z2 Fast feed speed
50mm	400mm	165mm	325mm	320mm	0.75KW	24m/min

Machine precision

X/Y/Z Repeat accuracy	X/Y/Z Positioning accuracy
±0.001	0.002

other

out Diameter tools numbe

inner Diameter tools number

Side milling tool

number

Power seat hole

Out diameter toos spec.

Inner diameter tools spec.

Side milling tool spec.

size

power

Weight

Power supply capacity

4+4

12*12

ER 11/16

ER 16×4

2600*1670*1950

12KW

3220

kgs

21KW

Select configuration

Synchronous rotating guide sleeve	Whirlwind milling	End milling cutter Power	Deep hole drilling	Back shaft power seat	Long material support device	Conveyer belt
yes	/	yes	yes	yes	no	yes
