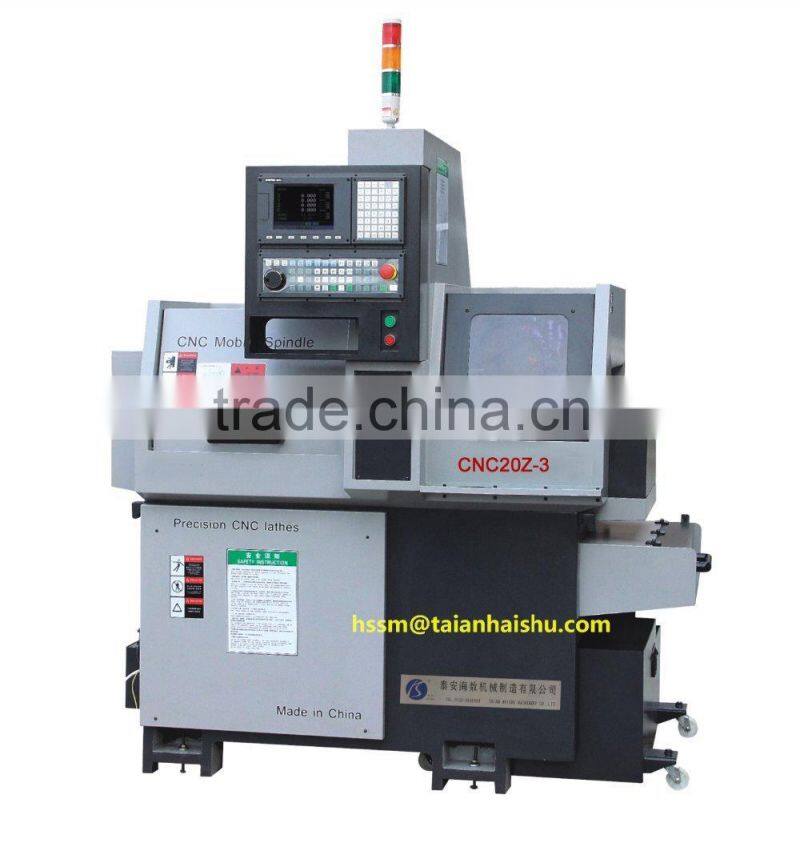

swiss type cnc lathe CNC20Z-3 cnc lathe
1 use imported NSK bearings, THK line rail screw, High progress and high life
2 no guide set, fixed set of free choice, Save material and high yield. Optional
conductance sets.Linkage guide set,Benefit is better.
3 spindle oil cooling type electric spindle, high speed and no dead angle cooling, than ordinary wind cooling electric spindle cooling more uniform, more performance.
4 this machine adopts the absolute operation, no need to switch back to the origin, time saving, labor.
5 flexible and changeable cutter design, matching freely.
6.24 hours continuously electricity, high efficiency, save labor
7.8 inventions, 26 utility model patents, the national patent office legal protection, and cooperation with the Wenzhou chamber of Commerce
8 the overall appearance is generous, the shape is novel and outstanding, and constantly improve and optimize
Standard configurations |
|
Related parameters |
Spindle parameters |
Spindle hole diameter | The max. bar | Collet type | No set of guide technology | Spindle center to ground height | Spindle unlimited indexing | Spindle once feeding trip | C axis Minimum indexing | C axis Function |
Φ22mm | Φ20mm | TsugamiS20 | yes | 1080mm | yes | 180 mm(standard)200mm(Option) | 0.001 | yes |
System parameters |
OS | Spindle motor | Basal rotational speed | Maximum speed | Minimum setting unit | Control axis number | Hand wheel simulation |
SYNTEC 20TA | 3.7KW | 10rpm/min | 8000rpm/min | 0.001mm | 4 | yes |
X/Z axis |
X axis stroke | Z axis stroke | Y axis stroke | X/Y/Z/X2/Y2/Z2 Fast feed speed | X/Y/Z/X2/Y2/Z2 axis Servo motor power |
50mm | 280mm | 165mm | 24m/min | 0.75KW |
Machine precision |
X/Y/Z Repeat accuracy | X/Y/Z Positioning accuracy |
±0.001 | 0.002 |
other |
out Diameter tools number | inner Diameter tools number | Side milling tool number | Out diameter toos spec. | Inner diameter tools spec. | Side milling tool spec. | size | power | weight | Power supply capacity |
5 | 4 | 4 | 12*12 | ER 11/16 | ER 11/16×4 | 1800x1150x2140 | 8KVA | 1260KG | 8KVA |
Select configuration |
Synchronous rotating guide sleeve | Whirlwind milling | End milling cutter Power seat | Deep hole drilling | Back shaft power seat | Long material support device | Conveyer belt |
yes | / | yes | / | / | yes | / |
