Help CenterCast Iron Rubber Sheet Open Roll Mill/Rubber Refiner/Rubber Mixing Mill
Related Products
-
Rubber Refining Machine/Two Roll Rubber Mixing MillUS$ 2,540 - 22,000MOQ: 1 Set -
Advanced Lab Rubber Mixing Mill/Rubber Refining Mill/Open MixerUS$ 4,500 - 22,000MOQ: 1 Set
-
Best Popular Two Rolls Mixer/Open Rubber Mixing Mill With Stock BenderUS$ 4,500 - 22,000MOQ: 1 Set
-
Roll Diameter 450 Rubber Refining Machine/Machinery/XK160-660 Rubber Mixing MillUS$ 2,540 - 22,000MOQ: 1 Set
-
Best Popular Two Rolls Mixer/Open Mixing Mill With Stock BenderUS$ 4,500 - 22,000MOQ: 1 Set
Specifications
cast iron rubber open roll mill1.used for rubber sheet making machine
2.gearbox and bush
3.used for rubber stiring
Cast Iron Rubber Open Mixing Mill
A) Rolls :Alloy Chilled Cast Iron rolls with surface hardness 510 ~ 550 BHN. The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling or heating
B) Roll Clearance Adjusting Unit : Through worm and worm gear drive clutch rod for Parallel sheeting hand wheels to close the NIP from One point only
C) Roll Cooling :Universal Rotary joints with inner Spray pipes with Hoses and Headers. Piping is complete up to supply pipe terminal.
D) Journal Bearing Housing :Heavy Duty Steel Casting Housing fitted with Anti Friction Roller Bearings
E) Lubrication : Manual / Motorized Grease lubrication pump for Anti Friction Roller Bearings fitted in dust sealed housing.
F) Stand Frame & Apron (Cap) :Heavy Duty Steel Casting.
G) Gearbox :Helical Reduction Gearbox Greaves/ Shanti make direct coupled with Rear roll and Motor
H) Base Frame :Common base frame heavy duty, Steel Beams and MS plate fabricated accurately machined on which whole machine with Gearbox and motor are fitted. No deep foundation required
I) Electric Control Panel :Star Delta Electric operating panel with Auto Reversing, Voltmeter, Ampere, Overload protection relay, 3 Phase Indicator and Emergency Stop Switch.
Version and its Technique Parameters:
| Technique Parameters | XK-160 | XK-250 | XK-400A | XK-450A | Xk-450 | XK-560A | XK-550B | XK-660 | XKY-660 |
| Roll diameter(mm) | 160 | 250 | 400 | 450 | 450 | 560/510 | 550 | 660 | 660 |
| Roll length(mm) | 320 | 620 | 1000 | 1200 | 1200 | 1530 | 1500 | 2130 | 2130 |
| Front roll surface speed(m/min) | 8.95 | 15.3 | 18.65 | 18.65 | 23.47 | 27.87 | 28.32 | 28.6 | 32.53 |
| Friction ratio | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.22 | 1:1.24 | 1:1.09 |
| Max.nip | 4.5 | 8 | 10 | 15 | 15 | 15 | 15 | 15 | 15 |
| Feeding capacity per | 1-2 | 10-15 | 18-35 | 25-50 | 25-50 | 35-50 | 50-60 | 165 | 165 |
| Power | 5.5 | 18.5 | 37 | 55 | 55 | 90 | 110 | 160/245 | 160/245 |
| Size(lenght*width*height)(mm) | 1226*830*1295 | 3400*1600*1500 | 4350*1850*1780 | 5200*2380*1940 | 5670*2390*1670 | 6180*2280*1970 | 5870*2470*2040 | 7460*3660*2080 | 7465*3660*2080 |
| Weight(Kg) | 1280 | 3300 | 7860 | 12600 | 11940 | 22500 | 27000 | 49940 |
49000
|

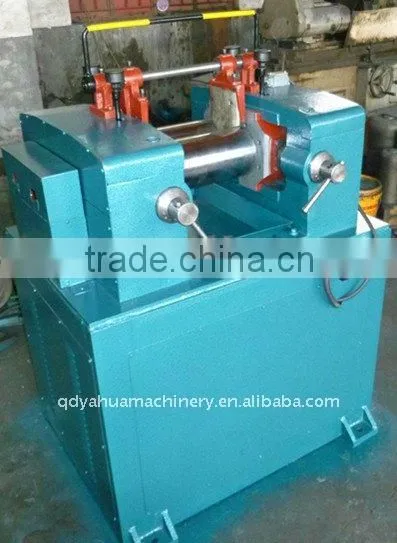

Picture one : XK-160 lab rubber mixing mill . Mainly used for lab use

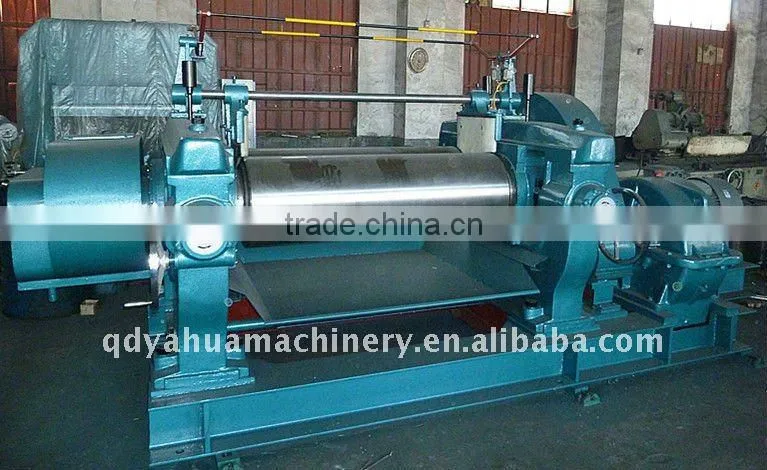

picture two : XK-250 rubber mixing mill . production capacity is about 150 kg/h

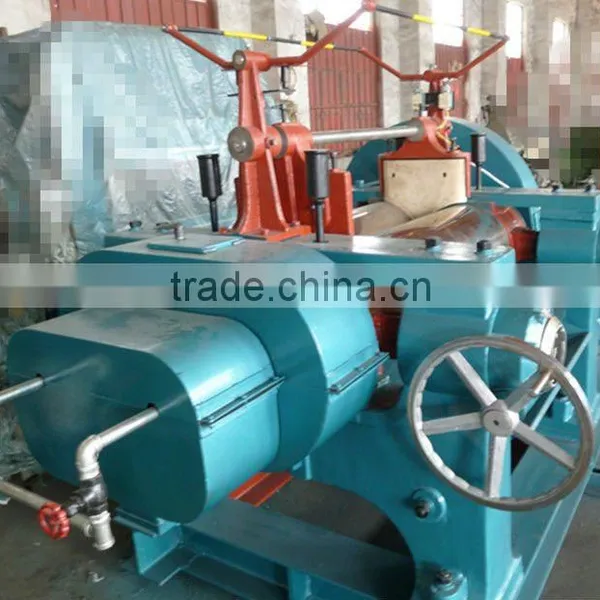

picture three : xk-360 rubber mixing mill .Production is about 250 kg/h

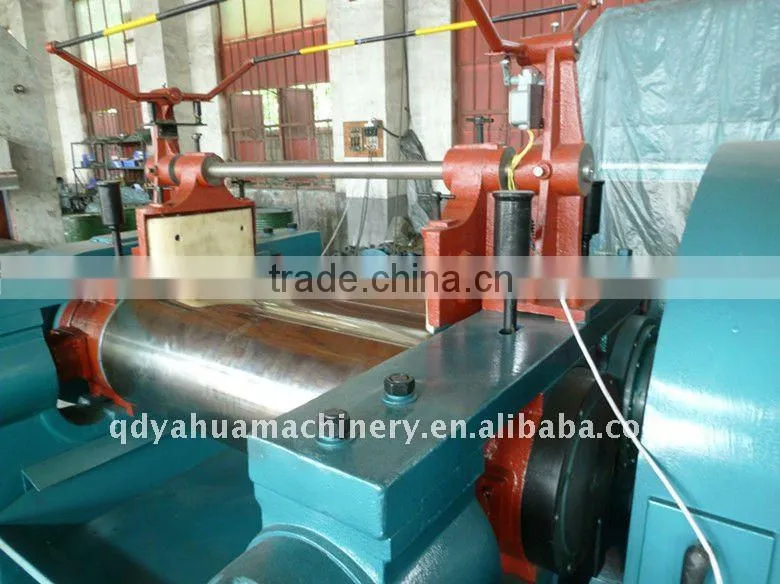

picture four : xk-400 rubber mixing duction is about 350 kg/h . From this model , we begin distiguish configuration . NYLON , COPPER , ROLLER BALL BEARING.

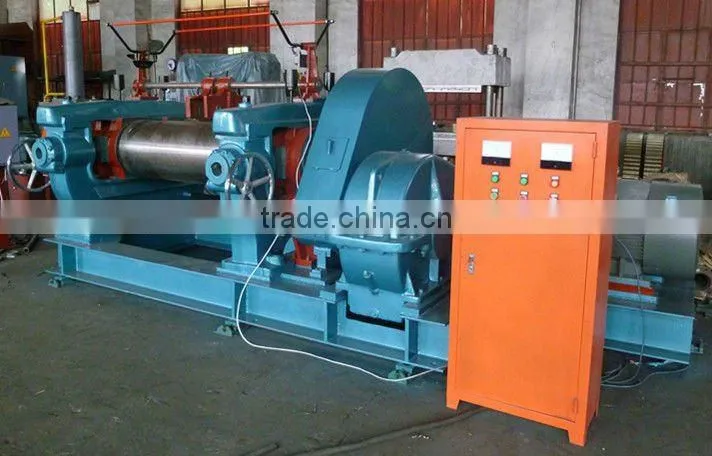

picture five:XK-450 rubber mixing mill . two configuration , stock blender is choosed . 500 kg/h
picture six : XK-560 . two configuration , stock blender . production is 500 KG/H
The machine is mainly used for refining of reclaimed rubber and rubber sheeting.
The rollers are made of chilled cast iron with wear-resistant hard surfaces. The two rollers are smooth ones with bored cavities and can be cooled homogeneously. The protective device is provided to protect the main parts from damage due to overload. In case of emergency, the safety rod is pulled down and the rollers will be stopped immediately.
