Specifications
Rubber Refining Machine1 rubber calendaring and pressing
2 roller made of alloy cast iron
3 overload protection device

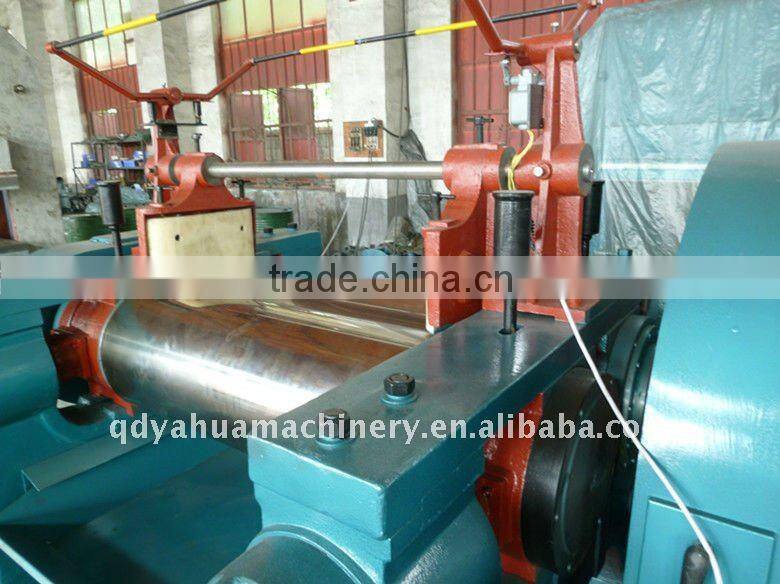

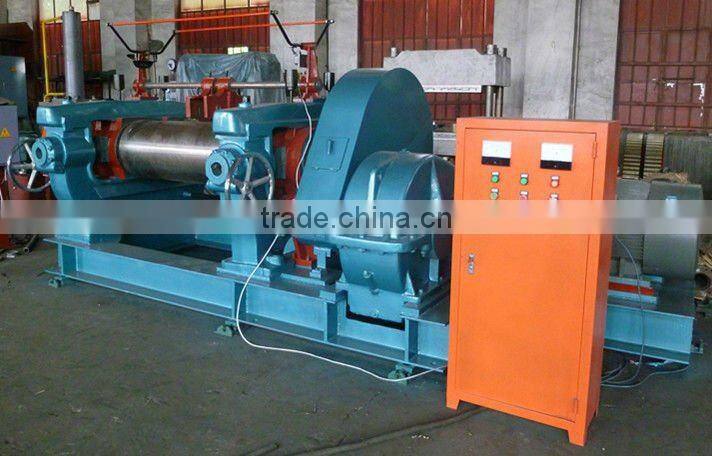

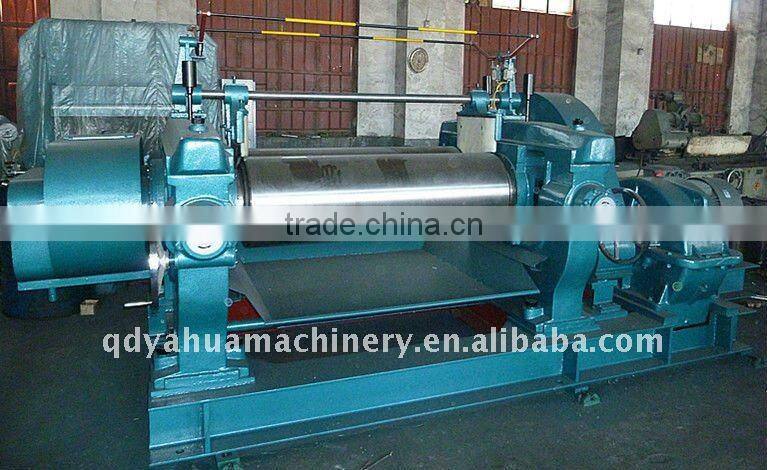

Rubber Refining Machine
nstruction
This machine consists of Base,Rack,Gland,Rollers,Bearing,Transmission device,Lubrication device,Decelerator,Adjustment device of the roller temperature,Emergency shutdown device and brake rigging and etc.
2.uses
It is mainly used for plasticating and mixing of rubber or plasticsect., warming and sheeting rubber compound, cracking and refining ofreclaimed rubber.
3.Features
1. Chilled alloy cast iron roll is abrasion resistant with long service life.
2. There are two kinds of Nip adjustment mode for option:manual or electric.
3. There are three kinds of Main bearings for option:Bearing or Copper bush or Nylon bush.
4. Machine will be tripped off if overloaded to protect valuable electrical circuit.
5. All electrical connections are well,short circuits is impossible by any means.
6. There are many speeds and speed ratios available, which can satisfy most customers’ formula and processing requirements.
Version and its Technique Parameters:
| Technique Parameters | XK-160 | XK-250 | XK-400A | XK-450A | Xk-450 | XK-560A | XK-550B | XK-660 | XKY-660 |
| Roll diameter(mm) | 160 | 250 | 400 | 450 | 450 | 560/510 | 550 | 660 | 660 |
| Roll length(mm) | 320 | 620 | 1000 | 1200 | 1200 | 1530 | 1500 | 2130 | 2130 |
| Front roll surface speed(m/min) | 8.95 | 15.3 | 18.65 | 18.65 | 23.47 | 27.87 | 28.32 | 28.6 | 32.53 |
| Friction ratio | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.22 | 1:1.24 | 1:1.09 |
| Max.nip | 4.5 | 8 | 10 | 15 | 15 | 15 | 15 | 15 | 15 |
| Feeding capacity per | 1-2 | 10-15 | 18-35 | 25-50 | 25-50 | 35-50 | 50-60 | 165 | 165 |
| Power | 5.5 | 18.5 | 37 | 55 | 55 | 90 | 110 | 160/245 | 160/245 |
| Size(lenght*width*height)(mm) | 1226*830*1295 | 3400*1600*1500 | 4350*1850*1780 | 5200*2380*1940 | 5670*2390*1670 | 6180*2280*1970 | 5870*2470*2040 | 7460*3660*2080 | 7465*3660*2080 |
| Weight(Kg) | 1280 | 3300 | 7860 | 12600 | 11940 | 22500 | 27000 | 49940 |
49000
|
Based on the ideas of High quality and Credit, we strictly control the quality of the
products, and constantly improve our powerful technical support and personnel
training to per customers. Mutual benefit is our aim and customers' satisfaction is our
success.
Picture one : XK-160 lab rubber mixing mill . Mainly used for lab use
picture two : XK-250 rubber mixing mill . production capacity is about 150 kg/h
picture three : xk-360 rubber mixing mill .Production is about 250 kg/h
picture four : xk-400 rubber mixing duction is about 350 kg/h . From this model , we begin distiguish configuration . NYLON , COPPER , ROLLER BALL BEARING.
picture five:XK-450 rubber mixing mill . two configuration , stock blender is choosed . 500 kg/h

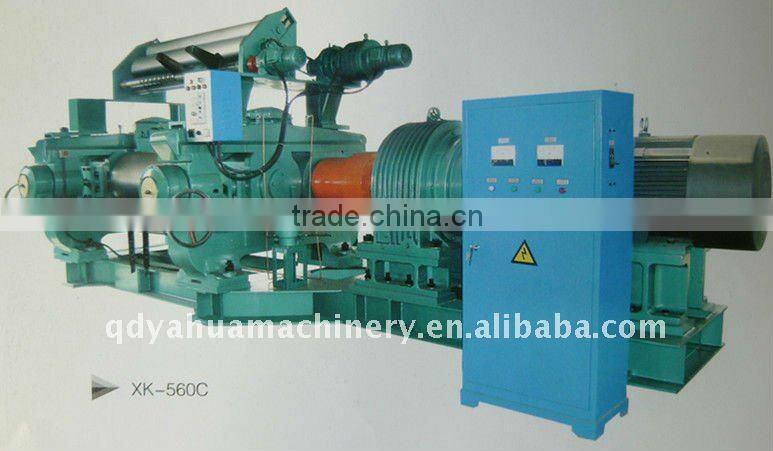

picture six : XK-560 . two configuration , stock blender . production is 500 KG/H
picture eight : XK-660 rubber mixing mill . production capacity 2000 kg/h
Brief Introduction of our factory:
Qingdao Yahua Machinery Co.,Ltd is situated west of Jiaozhou and east of Qingdao Economic Developing Zone, near No.,204 National Road and Tongsan High Way.
We are very professional rubber machinery factories here. OUr products are well-known from different areas in domestic and overseas.
Our slogan is: Quality makes survive. Technology makes develop. Good service deserves good reputation. Good results deserves good organization. We are keeping on working hard and develop better products. Looking forward our long friendly cooperation with people from all of the world.
