Specifications
Rubber Tile Curing Press1.high speed, in/out mold
2.PLC control,easy operation
3.no oil leakage, high efficiency

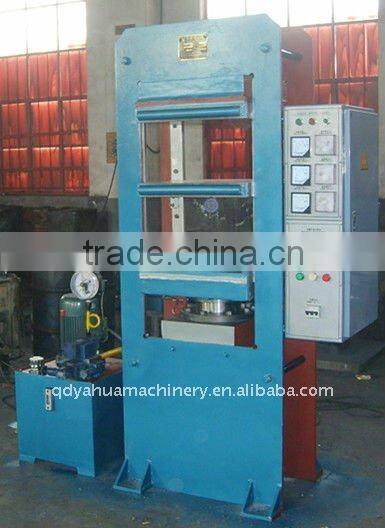

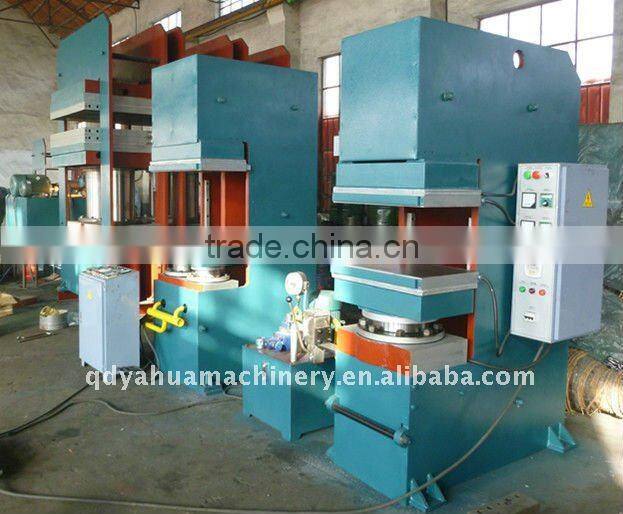

Rubber Products Making Machinery Parts/Vulcanizing Rubber Sheet Press Machine
1.Main uses
The Curing Press mainly works for the clampdown of rubber ,which can be used as normal hydraulic machine.
We have both column and frame structure .
2.Advantages:
1 Simple and convenient structure ,flexible operation,commodious space.The cylinder and plunger are made up of high –quality materials.
2 Hydraulic station and electric cabinet are Located in both sides of the main engine.
3 Conveniently operated.
4 Without oil spilling or off pressure.
5.Excellent reputation .
3. Technical Parameter as follows:
| Type | XLB-D300*300*1 | XLB-D350*350*2 | 500*500*2 | 800*800*1 | 1400*1700*2 | 2000*2000*2 | 1600*1800*1 |
| Nominal mounding power(MN) | 0.25 | 0.25 | 0.5 | 1.00 | 8.00 | 6.00 | 8.00 |
| Plate size(mm) | 300*300 | 350*350 | 500*500 | 800*800 | 1400*1700 | 2000*2000 | 1600*1800 |
| Working layer number | 1 | 2 | 2 | 1 | 2 | 2 | 1 |
| Piston stroke(mm) | 250 | 250 | 250 | 300 | 700 | 600 | 300 |
| Plate unit area pressure(Mpa) | 2.8 | 2.1 | 2.0 | 1.6 | 3.4 | 1.5 | 2.8 |
| Plate distance(mm) | 125 | 125 | 125 | 250 | 350 | 300 | 300 |
| Piston diameter(mm) | 152 | 152 | 200 | 300 | 400 | 340 | 400 |
| Working fluid pressure(Mpa) | 13.8 | 13.8 | 16.0 | 14.1 | 15.9 | 16.5 | 15.9 |
| Number of cylinder | 1 | 1 | 1 | 1 | 4 | 4 | 4 |
Meanwhile, we can produce different dimension your Parameter requirements. If you have any request, Pls dont feel any hesitate to contact with me anytime.
Contact Person: Bella
Office phone: 0532-83132191
Office Fax: 0532-83137817
