Specifications
Hydraulic Press For Ruuber Vulcanization1.rubber hydraulic press
2.heating method:oil/steam/electric

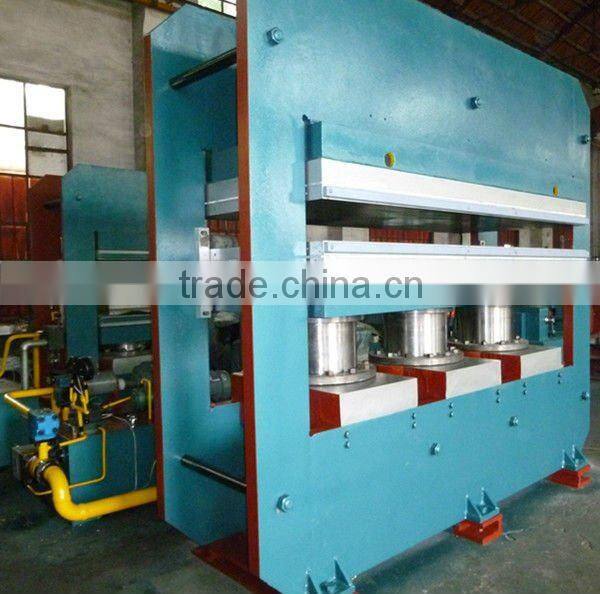

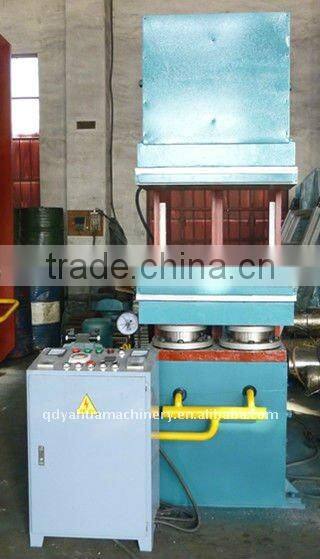

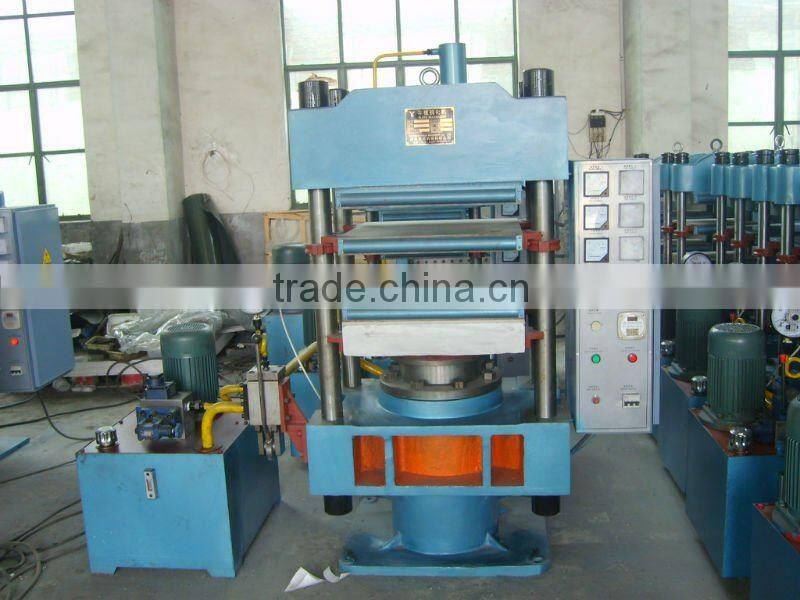

Hydraulic Press For Ruuber Vulcanization/Rubber Vulcanizing Mould Press
1.Structure
Vulcanizing press generally consists of four parts, a clamping institutions, two control systems, three pressure system, four heating system
2.Main uses
This equipment is used for vulcanizing either several sheets adhesive tape for transporting or several corresponding some rubber plage .
3.Advantages
1. The vulcanizing machine has advanced design and appearance of fine .
2. Its main technical characteristics , such as the automatic packing ,auto-fill pressure .
auto-open mode, slow travel speed , and so on.
4.Parameters of rubber vulcanizer
| parameters/version | XLB-350*350*2 | XLB-400*400*2 | XLB50*500*2 | XLB600*600*2/4 | XLB-750*850*2 | XLB-1000*1000*2 |
Mould closing force | 0.25 | 0.5 | 0.8 | 1.0 | 1.6 | 2.5 |
Hot plate spacing | 125 | 125 | 125 | 125 | 125 | 300 |
Hot plate layer | 2 | 2 | 2 | 2/4 | 2 | 2 |
Plunger stroke | 250 | 250 | 250 | 250/500 | 250 | 400 |
| heating way | Electricity/stream | Electricity/stream | Electricity/stream | Electricity/stream |
Electricity/stream |
Electricity/stream
|
| main motor power | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
| the thermal power | 2.4 | 3 | 3 | 7.5 | 9 | 10.8 |
| size | 1450*400*1350 | 1600*400*1400 | 1450*690*1818 | 1880*780*1660 | 2100*1010*1900 | 2400*960*2500 |
| weight | 1200 | 1500 | 1700 | 2500/3100 | 3560/4300 | 8300 |
Meanwhile, we can produce different dimension your Parameter requirements. If you have any request, Pls dont feel any hesitate to contact with me anytime.
Contact Person: Bella Xue
Office phone: 0532-83132191
Office Fax: 0532-83132191
