Specifications
Rubber Slipper Making Machine1.High working pressure.
2.High producing efficency.
3.Top sales service.

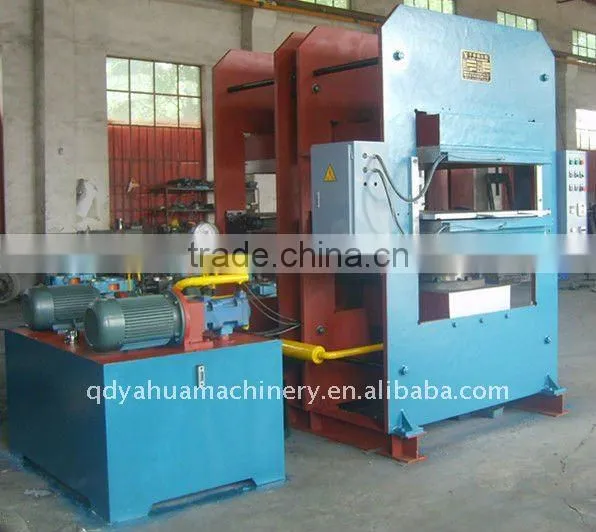

Rubber Plate Vulcanizing press is the machinery which produce all kind of rubber products, and thermosetting plastic like as related specifications aseling products, projected rubber, rubber plate and so on.
This Machinery has three types: frame type, pillar type and jaw type. It is economical advantage of compact structure, high working pressure, and high producing efficency.
Model and its Parameter as follows:
Model | XLB-D400*400*2 | XLB-D800*800*1 |
Nominalmoundingpower(MN)
| 0.5 | 1.00 |
Plate Size(mm) | 400*400 | 800*800 |
Plate pressure(Mpa) | 3.1 | 1.6 |
Piston stroke(mm) | 250 | 300 |
Distance between hot plate(mm) | 125 | 250 |
Working layer Number | 2 | 1 |
Pressure of working fluid(Mpa) | 16 | 14.1 |
Total heat power(KW) | 9 | 9.6 |
Heat type | Electricity | Electricity |
Maximum working temperature(Degree) | 200 | 200 |
Configuration type | 4 pillar | pillar |
Motor power | 2.2KW,1430R/Min | 2.2kw,940r/min |
Brief Introduction of our factory:
1.We are Qingdao Yahua Machinery Co., LTD. Our company has specialized in rubber machinery for 21 years
2.100% real manufacture meet all your requests
3.CE,ISO Certification
4.We can produce any kinds of this machine, including nonstandard ,so just tell us your requirements, we have the strength to make you satisfied!
Our products have been exported to all around the world, such as
America, France, Canada, Australia, Southeast Asia, and the Middle East. With the best quality and service, our products have gained great praise from domestic and foreign customers.
Contact person:Bella Xue
Office Phone: 0532-83132191/83137817
Fax Number:0532-83137817
