Home > Products > Lamination hot press > Melamine Lamination Hot Press

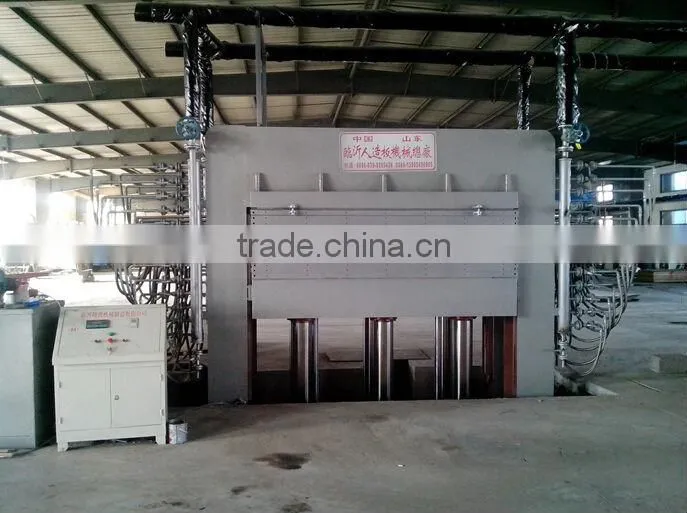

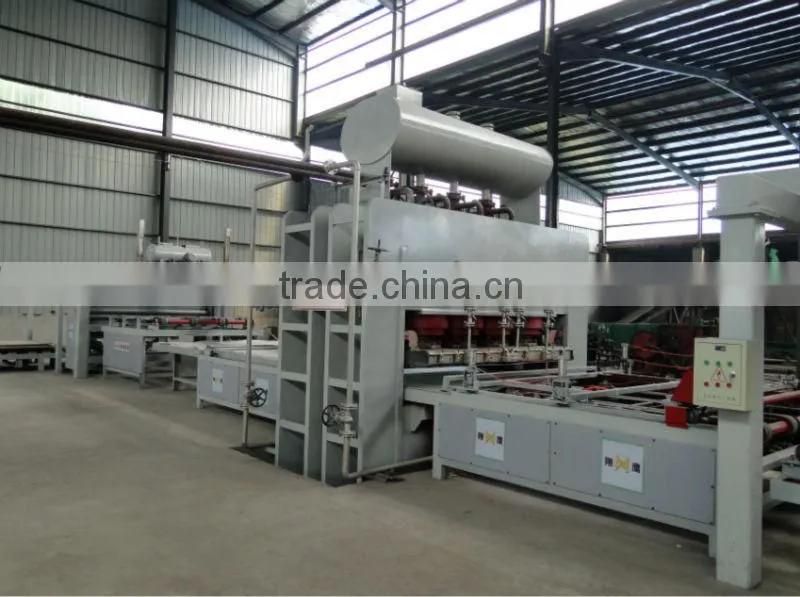

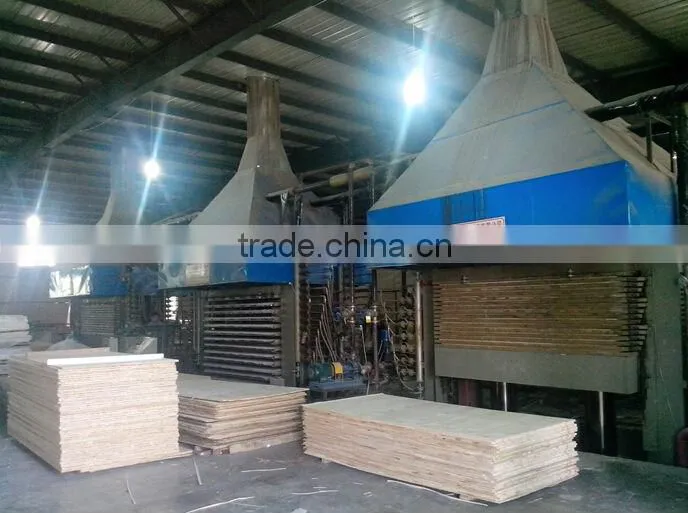

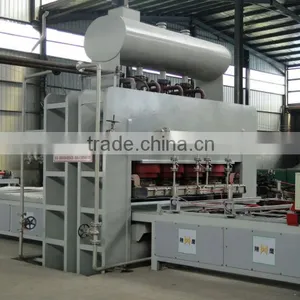

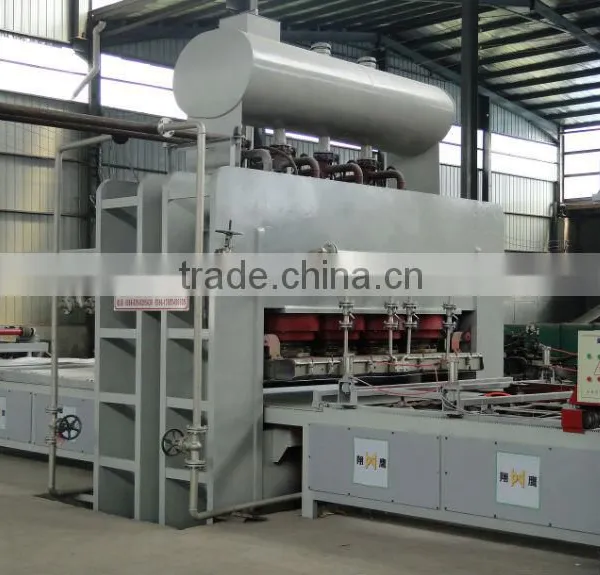

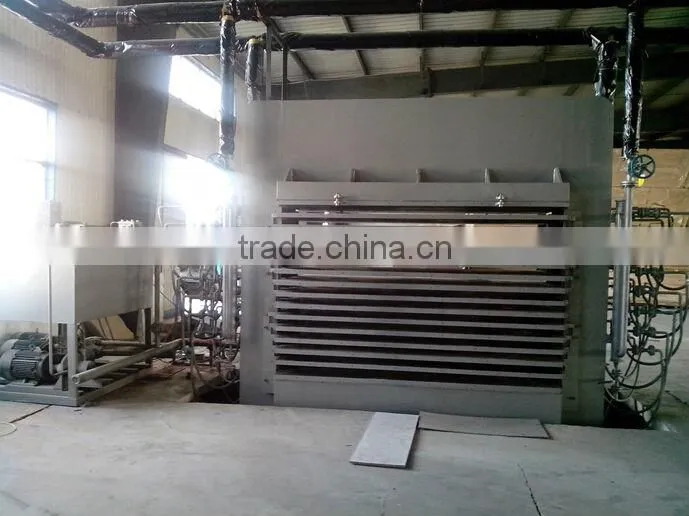

Melamine Lamination Hot Press
- 15 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Type: | Hot Press Machine | Place of Origin: | Shandong, China |
Brand Name: | XIANGYING | Model Number: | ml-616 | Voltage: | 380v/ 415v |
Power(W): | 18.5 kw | Weight: | 30t | Certification: | ISO9001 |
Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Short-cycle melamine lamination hot press
We could produce all kinds of hot pressing machine, widely used in wood processing, building materials and decoration...etc. The short-cycle melamine lamination hot press is suitable for the melamined processing of plywood, blockboard melamine impregnated paper and high density laminated flooring ACP wear-resisting paper.Variety specification includes 4*8, 4*9, 5*8, 5*9, 6*8, 6*9, 7*9, 6*12...etc.
Main Parameters About Lamination Hot Press
--Total Pressure | 6000kn | --Board Size | 2440*1220mm |
--Feeding Direction | From Length Side | --Up Heating Platen Size | 1370*2700*52mm |
--Daylight Opening | 100mm | --Main Oil Cylinder | φ220mm * 6cps |
--Main Oil Cylinder Working Stroke | 800mm | --Closing Time With Loading | ≤15s |
--Thickness of Frame Steel Platen | 35mm | --StructureFrame structure | Welded |
--Main Motor Power | 18.5kw | --Weight | 30t |
Characteristic of hydraulic laminating hot press
1. The main frame is welded by good quality NO1 standard steel plate, good design of frame and structure, strong rigidity, and ensure high pressure.
2. PLC control system is made by good quality hydraulic unit, fast press, accurate press, high efficiency.
3. The hydraulic circuit is composed of integrated blocks and compact in structure, ensuring accurate and reliable action of the system.
4. The steam system is designed as a "double entering and double exiting" arrangement to ensure even temperature distribution in hot platens.
5. Low motor power, power-free falling of hot platens save power consumption and decrease pre-production cost.
6. Hot press is the main equipment for plywood, blockboard, bamboo plywood, decorative and fancy plywood. For multipurpose and wide application in wood-based panel industry,specially for plywood manufacture.
7. The automatic electric apparatus is easy and reliable in operation,and the automatic temperature and time control ensures the quality of products.
8. we can make according to customer requires.
9. Our products have high quality and competitive price.
Located at Lanshan district, Linyi City of Shandong province, “the Biggest wood based panel base of Asia”, LINYI XIANGYING MACHINERY MANUFACTURING CO.,LTD(Linyi wood based panel machinery plant)is an aggressive enterprise which integrates woodworking researching, designing ,manufacturing, marketing and service into one whole.
Since it was established in 1992, Xiangying machinery keeping innovations and perfection to commit themselves in producing best quality machinery.
Our main products are Particle board production line, Plywood production line, MDF production line, Melamine veneer press,Mould door equipment etc. based on our good quality as well as perfect service ,our business scope expands extensively both at home and in more than 20 countries such as Vietnam, Malaysia, Pakistan ,Bangladesh, Russia, Turkey and so on. And they are all well praised by our clients.
Choose Xiangying machinery, Create measureless value.
1. All kinds of mold can be made by customer's drawings
2. All price are based on FOB, QINGDAO, China
3. Payment: by T/T 30% down payment, 70% upon machinery completion.
4. Delivery: After finishing all the payment
5. All the parameters above just for reference, for they are updating all the time
6. Package: Standard packing
7. Warranty: All the machine enjoys one year’s warranty, in this period.
Any problems of machine, please feel free to contact us. We will try our best to make it .
