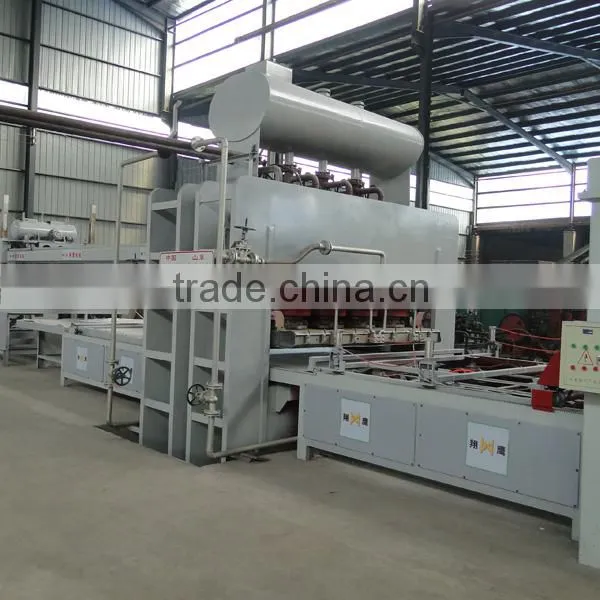

Melamine lamination hot press machine

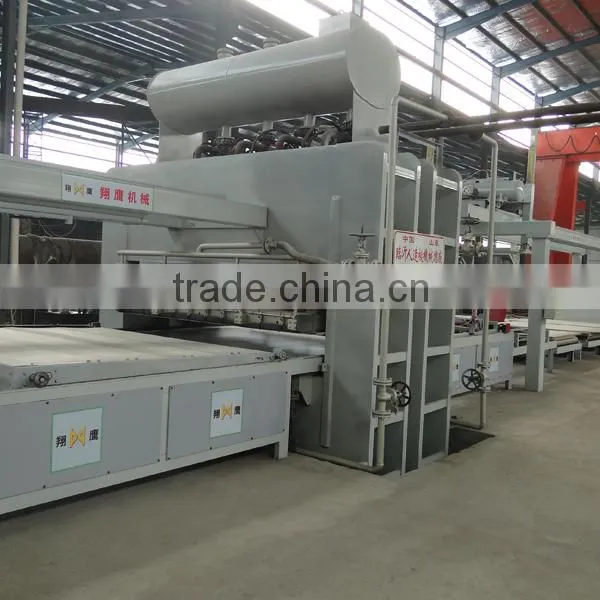

Short-cycle melamine lamination hot press
Short cycle melamine laminating hot press machine is widely used in furniture plant, building materials, building
decorations and other wood-based further processing plants.

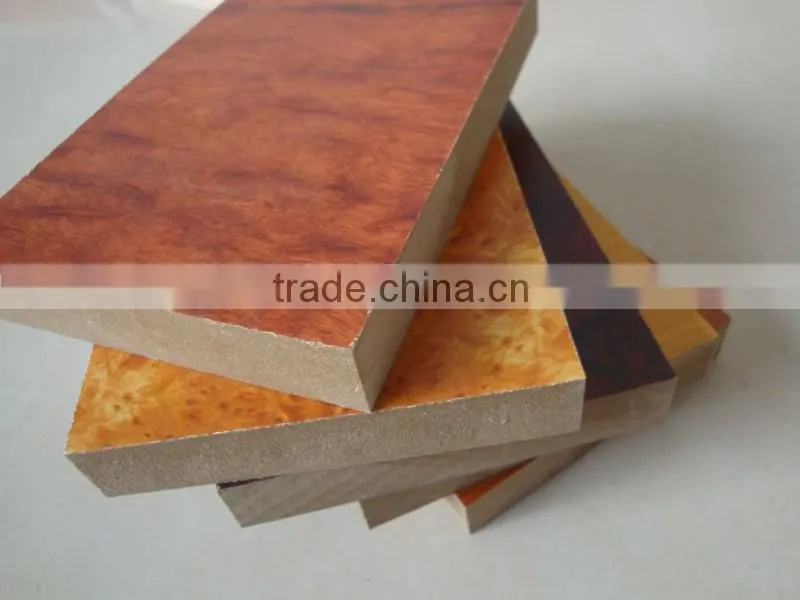

The machine is applicable to laminate particle board, MDF,HDF with melamine impregnated paper and other decoreation
paper and cloth.
Our machine have been sold to Africa, Mid East, North America, Southeast Asia Western European accepted by high quality.
melamine hot press advantages
1.PLC system,automatic grade, high efficiency, so the machine is known as short cycle hot press machine. No-load closing
time is about 5s. Capacity is 1000-1200 each shift. Faced both sides at one time.
2.Advanced hydraulic system makes it high stability and reliable performance. Quality assurance of the boards.
3.Combined frame make the machine solid durable and easy transportation, installation, operation, adjustment and maintenance.
4.Hot press platens and cylinders are selected from well-know domestic and foreign manufacturers of high quality products.
Variety panel process specification includes 4*8, 4*9,5*8,5*9, 6*8, 6*9, 7*9, 6*12...etc(foot).
Main technical data of short cycle laminating hot press:
1) Rate of production
--About |
1200 sheets/day |
--Remark |
Rate of production depends on board, resin, paper, temperature, pressure etc |
2) Electric power
--Power supply |
380V / 50Hz, Three phases, AC |
--Total power |
24kw |
3) Heating (prepared by the buyer)
--Medium |
Thermal oil |
--Capacity of boiler |
30×104 Kcal/h |
4) Net weight: Approx 90 ton
Equipments of short cycle hot press and details
--Total pressure |
24000 KN |
--Board size |
1830 x 3600mm |
--Feeding direction |
Longitudinal |
--Heating platen size |
2000x 3900 x 160/120mm |
--Daylight opening |
300mm |
--Main oil cylinder |
Φ 400 mm x 8 pieces |
--Oil cylinder working stroke |
300 mm |
--Closing time with loading |
≤ 2s |
--Thickness of frame steel platen |
50 mm |
--Structure |
Frame structure, Welded |
--Main motor power |
45 kw |
--Weight | 90 ton |
Characteristic of hydraulic laminating hot press
1. The main frame is welded by good quality NO1 standard steel plate, good design of frame and structure, strong
rigidity, and ensure high pressure.
2. PLC control system is made by good quality hydraulic unit, fast press, accurate press, high efficiency.
3. The hydraulic circuit is composed of integrated blocks and compact in structure, ensuring accurate and reliable
action of the system.
4. The steam system is designed as a "double entering and double exiting" arrangement to ensure even temperature
distribution in hot platens.
5. Low motor power, power-free falling of hot platens save power consumption and decrease pre-production cost.
6. Hot press is the main equipment for plywood, blockboard, bamboo plywood, decorative and fancy plywood.
For multipurpose and wide application in wood-based panel industry,specially for plywood manufacture.
7. The automatic electric apparatus is easy and reliable in operation,and the automatic temperature and time control
ensures the quality of products.
12000KN melamine hot press technical parameters
| Model | SH-RYJ-1200T |
| Nominal pressure | 12000KN |
| Opening | single |
| Interlayer spacing | 300mm |
| Number of hot plates | 2 pics |
| Numbers of Cylinder | 6 pics |
| Diameter of Cylinder | Φ360mm |
| Stroke of Cylinder | 300mm |
| Pressurization | 25Mpa |
| Empty Closing Time | About 5 S |
| Dimension of Hot Platens | 1400*2600*120mm |
| Products Board Size | 1220*2500mm |
| Overall Size | 3960*2830*3600mm |
| Control Method | Microcomputer Manually/Automatic controlled |
| Frame Pattern | Composite frame work |
| Thickness of Active Crossbeam | 400mm |
| Thickness of Upper/Lower Crossbeams | 1400mm |
| Thickness of Steel Plate | 50,30,20,16mm |
| Weight | 35T |
Located at Lanshan district, Linyi City of Shandong province, “the Biggest wood based panel base of Asia”,
LINYI XIANGYING MACHINERY MANUFACTURING CO.,LTD(Linyi wood based panel machinery plant)is an
aggressive enterprise which integrates woodworking researching, designing ,manufacturing, marketing and
service into one whole.
Relevant main products linked:
pre-sale services
vide free consultation of the machine
vide scientific parameters and quotation of the machine
3.according to customer′s requirements, provide feasible suggestions helping to select the right machine
4.If customer needed, we would be able to provide information about factory scale, cost analysis, msnpower required,etc.
so if you need the machine, just tell us, all the rest we can help you solve.
services during sale
1.check every production process and urge progress
s available to service machinery overseas.
3. provide complete personal training systerm help you master operation skill as soon as possible.
4.offer information of machine operation, debugging and maintenance
after sale service
1.free online survice
2.one year warranty
