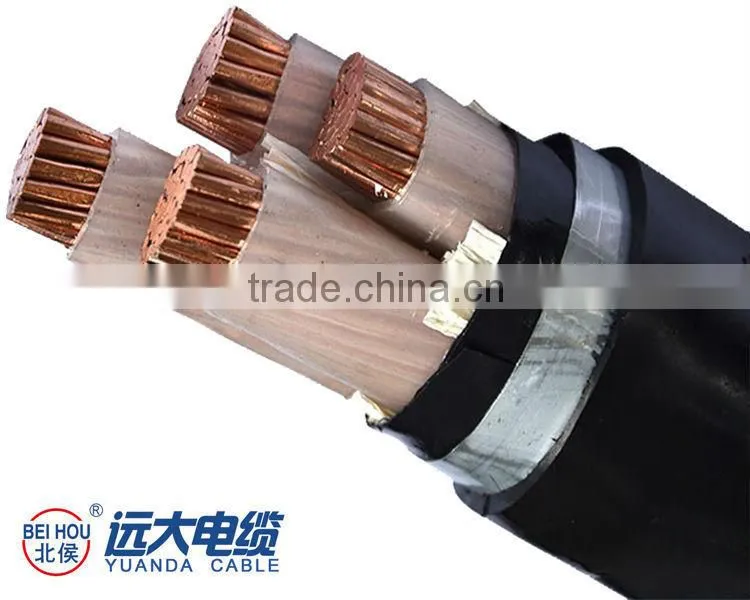

Copper Conductor XLPE PVC Insulated Cable 240mm2 Electric Power Cable
Details:
1.Uo/U: 0.6/1kV
2.Standard: IEC60502, BS7889, GB/T12706
3.Max. working temperature: 90 °C , can be 110 °C as requirement
4.Conductor: Class 1/2 annealed bare copper solid or strands
5.Insulation: XLPE
6.Sheath: PVC
7. Cross section area: 1.5~630mm2
8. Cores: 1~5 cores,3+1,4+1,3+2
9. Packing:Wooden drum or as requirement
10.Certification : ISO9001/ISO14001/OHSAS18001/CCC/CE/CB
11.Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable
Application:
Power cable is used to transmit and distribute electric power and often used to underground distribution network of cities, outlet line of power station, internal power supply for industrial and mining enterprises and underwater transmission line across rivers or seas.
Characteristics:
1. Rated power-frequency voltage: 0.6/1KV.
2. The permissible highest of long-time working temperature of cable conductors is 90oC.
3. The highest temperature of cable conductors should not beyond 250oC in short circuit condition( the longest duration of time do not exceed 5 seconds).
4. The environmental temperature for cable laying is not below 0oC.
5. The carve radius of cables should not less than 20 times of cable outer diameter.
Technical data:
|
Nominal Cross sectional area of Conductor (mm2)
|
Insulation Thickness (mm) |
Sheath Thickness (mm) |
Approx. Overall Diameter of cable (mm) |
Approx. Weight of Cable (Kg/km)
|
D.C resistance of Conductor (ohm/km) |
Testing Voltage A.C. |
Current rating |
|||||
In air(A) |
Direct in Soil(A) |
|||||||||||
Cu |
Al |
Cu |
Al |
(Kv/5min) |
Cu |
Al |
A |
Al |
||||
1x1.5 |
0.7 |
1.5 |
6 |
53 |
- |
≤12.1 |
- |
3.5 |
25 |
- |
35 |
- |
1x1.5 |
07 |
1.5 |
6 |
68 |
53 |
≤7.41 |
≤12.1 |
3.5 |
30 |
25 |
45 |
35 |
1x4 |
0.7 |
1.5 |
7 |
87 |
64 |
≤4.61 |
≤7.41 |
3.5 |
45 |
35 |
60 |
50 |
1x6 |
0.7 |
1.5 |
7 |
110 |
73 |
≤3.08 |
≤4.61 |
3.5 |
55 |
45 |
70 |
55 |
1x10 |
0.7 |
1.5 |
8 |
155 |
95 |
≤1.83 |
≤3.08 |
3.5 |
140 |
115 |
160 |
130 |
1x16 |
0.7 |
1.5 |
9 |
220 |
120 |
≤1.15 |
≤1.91 |
3.5 |
100 |
80 |
125 |
100 |
1x25 |
0.9 |
1.5 |
10 |
345 |
190 |
≤0.727 |
≤1.20 |
3.5 |
140 |
115 |
160 |
130 |
1x35 |
0.9 |
1.5 |
12 |
424 |
207 |
≤0.524 |
≤0.868 |
3.5 |
175 |
140 |
190 |
150 |
1x50 |
1.0 |
1.5 |
13 |
555 |
245 |
≤0.387 |
≤0.641 |
3.5 |
210 |
170 |
225 |
180 |
1x70 |
1.1 |
1.5 |
14 |
770 |
336 |
≤0.268 |
≤0.443 |
3.5 |
270 |
215 |
280 |
225 |
1x95 |
1.1 |
1.5 |
16 |
1040 |
455 |
≤0.193 |
≤0.320 |
3.5 |
340 |
275 |
335 |
270 |
1x120 |
1.2 |
1.5 |
18 |
1290 |
550 |
≤0.153 |
≤0.253 |
3.5 |
400 |
320 |
380 |
203 |
1x150 |
1.4 |
2.0 |
21 |
1590 |
650 |
≤0.124 |
≤0.206 |
3.5 |
460 |
370 |
425 |
340 |
1x185 |
1.6 |
2.0 |
23 |
1944 |
804 |
≤0.0991 |
≤0.164 |
3.5 |
530 |
415 |
480 |
375 |
1x240 |
1.7 |
2.0 |
25 |
2510 |
1021 |
≤0.0754 |
≤0.125 |
3.5 |
625 |
490 |
555 |
435 |
1x300 |
1.8 |
2.0 |
34 |
3042 |
1160 |
≤0.0601 |
≤0.100 |
3.5 |
795 |
615 |
910 |
710 |
1x400 |
2.0 |
2.1 |
37 |
3869 |
1469 |
≤0.0470 |
≤0.0778 |
3.5 |
930 |
730 |
1050 |
820 |
1x500 |
2.2 |
2.2 |
41 |
4910 |
1829 |
≤0.0366 |
≤0.0605 |
3.5 |
1080 |
850 |
1190 |
940 |
1x630 |
2.4 |
2.3 |
45 |
6220 |
2305 |
≤0.0283 |
≤0.0469 |
3.5 |
1250 |
1000 |
1350 |
1080 |
1x800 |
2.6 |
2.4 |
46 |
7870 |
2910 |
≤0.0221 |
≤0.0367 |
3.5 |
1400 |
1160 |
1520 |
1220 |
1x1000 |
2.8 |
2.6 |
51 |
9804 |
3604 |
≤0.0176 |
≤0.0291 |
3.5 |
1630 |
1330 |
1690 |
1380 |
Package and shipping:

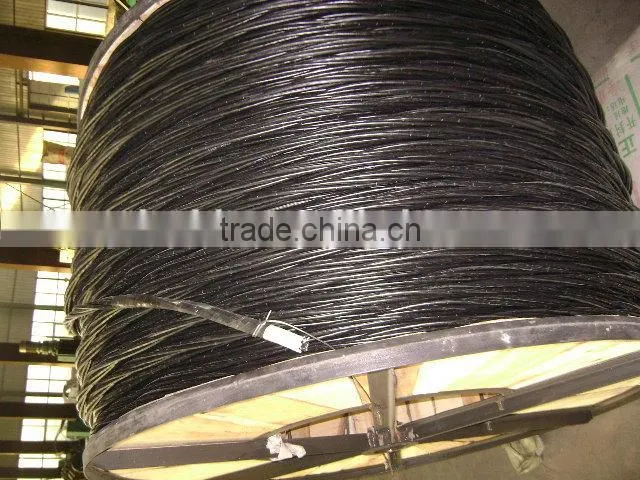

1).Wrapped in rolls/coils/rings with plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other lengths could be supplied if agreements are reached by both side.
Packaging: In rolls/coils, wooden drums, steel drums or steel-wooden drums.
Shipping:
1. Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2. Large quantity will be shipped by sea.
Company introduction:
Established: 1996.
Factory area: 60,000 square meters, and 40,000 square meters for building area.
Fixed assets: USD 200 million.
No.of stuff : over 1,000.
Annual output: 100,000 tons.
Certificates: IEC, ISO 9001, ISO 14001, CCC, BV, JIS, UL, BS, OHSAS 18001, TUV, CE
CB and so on.

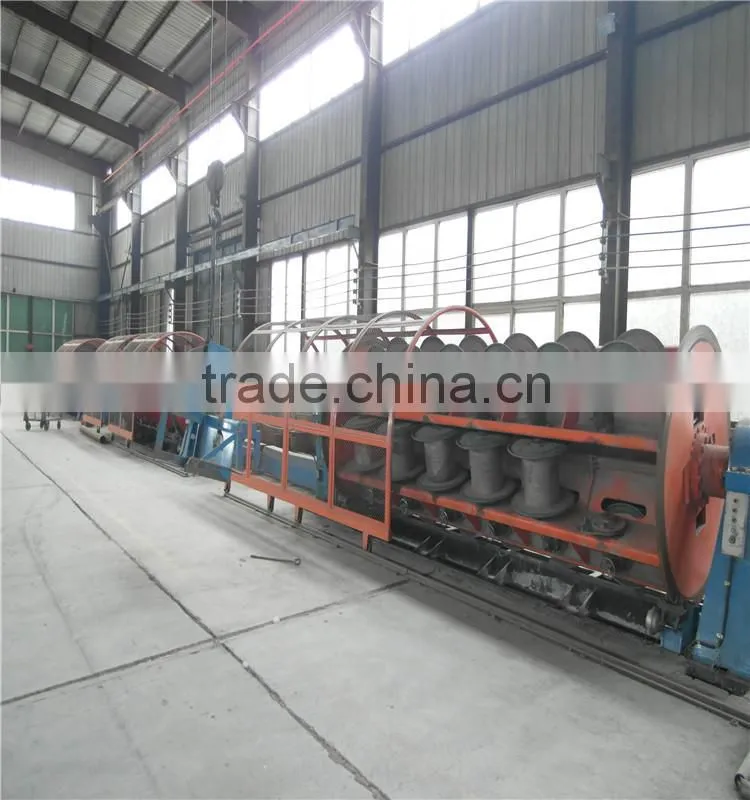

Workshops: rubber cable workshops, conductor workshop, XLPE cable workshop, electric cable workshop, special cable workshop, and workshops for telephone wire , TV lines and parvicostellae.
Zhengzhou Yuanda Cable Co. Ltd. located in the middle of China, and we can deliver qualified cable products in very short lead time.
