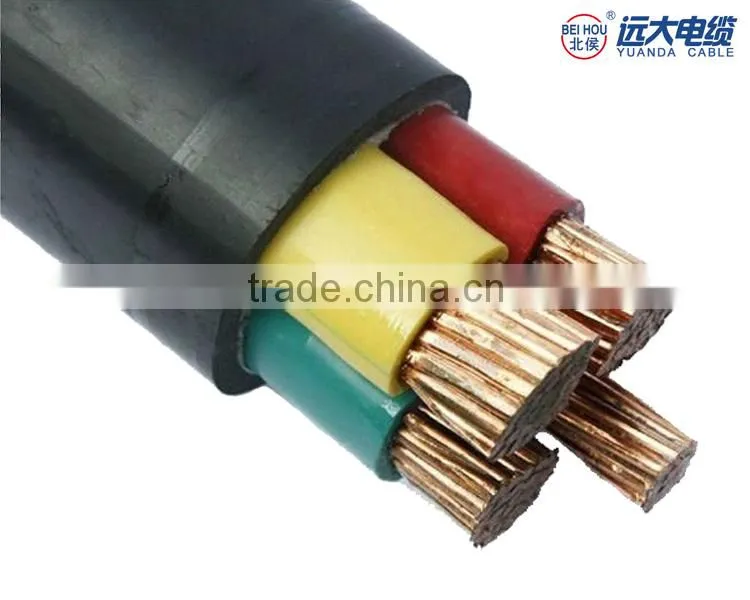

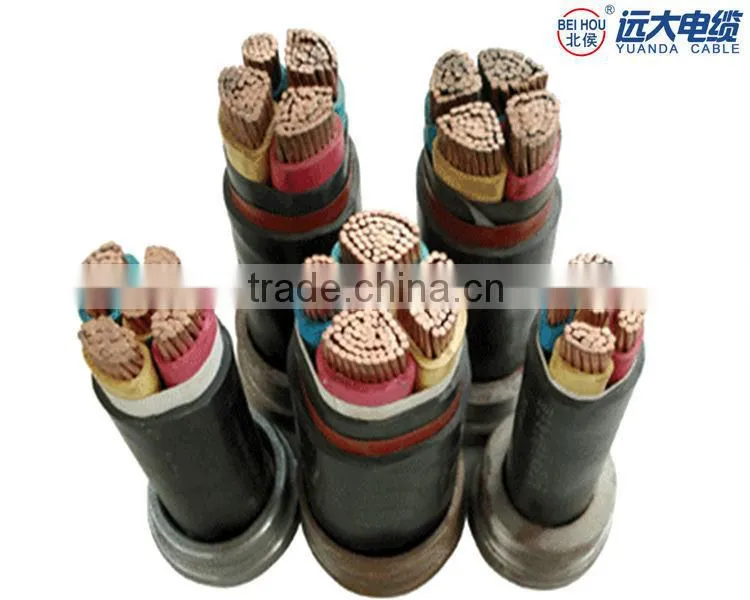

XLPE Insulated No Halogen Low Smoke Fire Retardant Power Cable For Rated Voltage 35kV

 XLPE Insulated No Halogen Low Smoke Fire Retardant Power Cable For Rated Voltage  35kV

Standard:

ISO9001, ISO14001, OHSMS18001, CB, CE, SAA, AS/NZS, BS ,etc or as customer's request.

The Rated Voltage(kv):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

Number of cores:

1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.

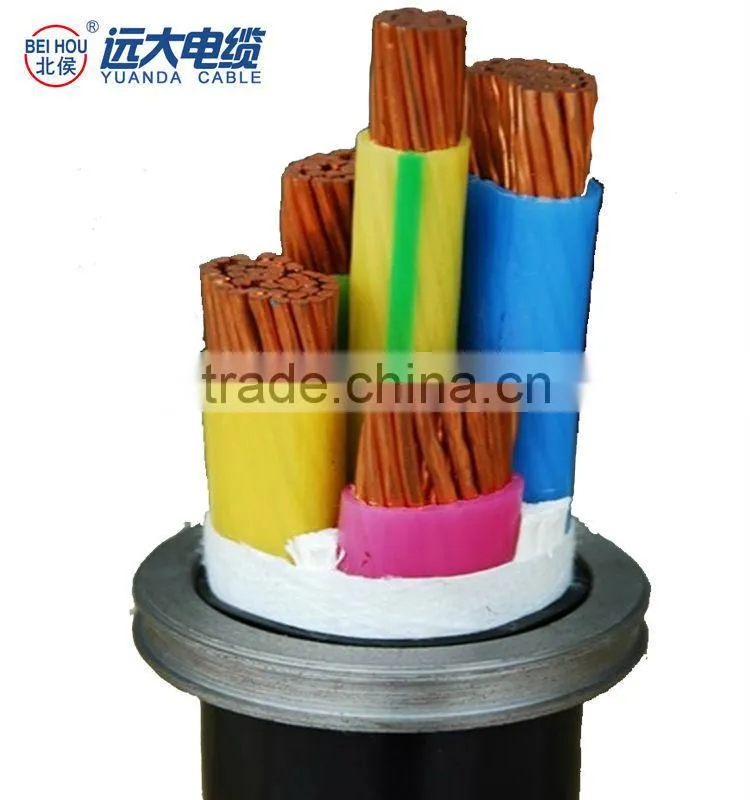

Construction:

Conductor: Solid or stranded copper/aluminum
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)

Nominal Section:

1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2 ,70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 500 mm2 630 mm2 800 mm2

production range: single core cable from 1.5 mm2 to 800 mm2,muli-core cable from 1.5 mm2 to 400 mm2

Specification:

construction of power cable for different voltage grade

1. low voltage cable power cable
Low voltage (0.6/1 kv)
single core or multi-core
copper or aluminium conductor
pvc inusulation
steel tape armored or galvanized steel wire armored or unarmored
pvc outer sheath
power cable.

2. medium voltage cabel power cable
Voltage grade is up to 35kv,
cross-section area can be up to 1000 sqmm (copper or aluminiun conductor).
Conductor long-time operating temperature is 90 degrees.
In short circuit, conductor highest temperature should be not more than 250 degrees.
1kv-35 kv
multi-cores
copper or aluminium conductor
xlpe insulation
copper tape or copper wire screen
galvanized steel wire armored
pvc or pe sheath
power cable

3. high voltage cable power cable
High voltage (35kv~220kv)
copper or aluminium conductor
xlpe insulation
metal sheath (lead or corrugated aluminium)
hdpe or pvc outer sheath power cable.
Laying conditions: for lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling forced

We can also manufacture others power cable according to customer's special requirements.

Packaging: In coils, wooden drums, steel drums or steel-wooden drums.

1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.

2).Treated wooden/steel-wooden drums for big diameter cables.

3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.

Shipping:

1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).

2.The big quantity will ship by sea.

Feedback:

We will begin to manufacture products and leave feedback once payment received from clients after we reach the agreement.

If you have any problems with your order, we are happy to find an amicable resolution with your side.

Zhengzhou Yuanda Cable Co., Ltd

Established: 1996
Factory Area: 60,000 square meters, Building area of 40000 square meters

Fixed Assets: USD 200 million

Number of Employees: more than 1,000 staffs

Annual production Capacity:100,000tons.

Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.

Sub Factories: Rubber cable factory, conductor factory, cross-link cable factory ,cable factory, electric wire factory and special cable factory.

Zhengzhou Yuanda Cable has has a big wire cable production base in Middle of China and we can deliver qualified cable products in very short lead time.

Yuanda Cable Products:

1. XLPE Power Cables Up to 220kV

2.Building Wires & PVC Cables (CE,IEC Certificate)

3.Rubber,Mining&Welding Cables (CE,IEC Certificate)

4.Solar Photovoltaic Cable

5.Fire Resistant/LSZH Cables

6.Aerial Bundled Cable (ABC)

7.ACSR,AAC,AAAC Bare Conductor

8.CAT5E,CAT6 Network Cable

9.Control&Instrumentation Cables

10.Silicone Rubber Cables

11.Fluorine Plastic Insulated Cables

12.Customized Cables & Wires

1.Q:Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large mufacturing factory in Middle of China with 1,000 staff.

2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in No.1 building 23,Layer 2304,No.157 FuYuan Road, Jinshui District, Zhengzhou Henan. It is advised that you come directly by plane to Zhengzhou Airport.

3.Q:How can I get some samples?
A: Free Samples will be sent you by economic International Express if available, Freight Charge normally will be on buyer’s account.

4.Q:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable company has passed ISO9001 and ISO14004 certificate and strict QC system. we promise to deliver only qualified cable.

5. Which payment terms do you accept?

A: The payment term varies with different price level and total value of every contract.

Common terms are as follows:

a.100% TT advance for small amount orders.

b. T/T 30% deposit, balance payment negotiable accordingly.

6. Have you ever supplied cables to our country?

A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.

7. What is your MOQ?

A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us  directly for detail information if you have any specific cable requirement.

We could producing according to the customers' requirements.Welcome your

request for any quotations!
