PVC Insulated Control Cable

PVC Insulated Control Cable thumbnail-1
PVC Insulated Control Cable thumbnail-2
PVC Insulated Control Cable thumbnail-3
PVC Insulated Control Cable thumbnail-4
PVC Insulated Control Cable photo-1

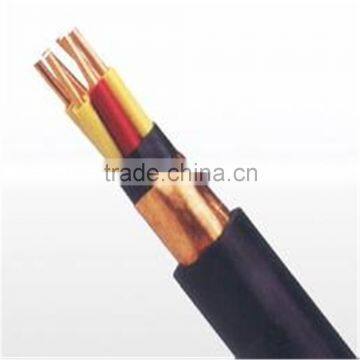

PVC Insulated Control Cable photo-2

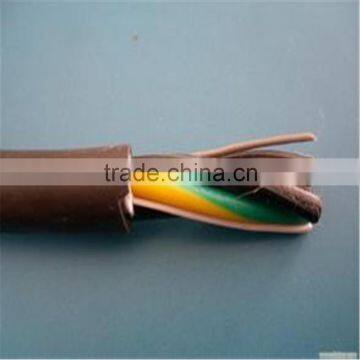

PVC Insulated Control Cable photo-3

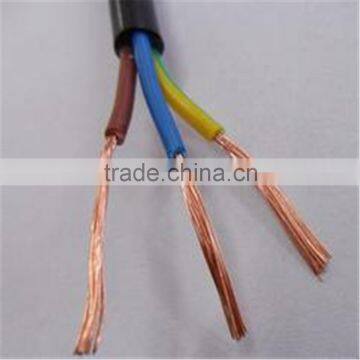

PVC Insulated Control Cable photo-4
US$ 1 - 99 MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
BEI HOU
Model Number:
control Cable
Contact Supplier Request Quote Chat Now
Zhengzhou Yuanda Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name BEI HOU
Model Number control Cable
Insulation Material PVC
Type Low Voltage
Application Construction
Conductor Material Copper
Jacket PVC

Application



The cables are designed for connection wires of power distribution equip-ments for controlling, monitoring, protecting
circuits with A .C. rated voltage 450/750V and below.

Manufacturing standards
ASTM ICEA BS DIN IEC GB AS/NZS etc.

Product Description



Operating features

2.1 The maximum permissible continuous operating temperature is 70℃
2.2 The lowest installation temperature of the cable is 0℃ .
2.3 Permissible Min. Bending radius not less than 6 times of the

 completed cable diameter for unarmoured cable; not less than 12 times of the completed cable

diameter for armoured or copper tape screened cable; not less than 6 times of the completed cable diameter for screened flexible cable.

Sketches of product construction

PVC insulated control cable




PVC Insulated and Sheathed Control Cable

Type,description and main application Table1

Type

Description

Main Application

KVV

Copper conductor PVC insulated
 and sheathed
control cable

For flxed installation, laying indoors,
in trenches and ducts

KVVP

Copper conductor PVC insulated
and sheathed control
cable with copper cape screen

For fixed installation, laying indoors,
in trenches andducts,
directly in ground where screen is required

KVVP2

Copper conductor PVC insulated
 and sheathed control
cable with steel tape screen

Ditto

KVV22

Copper conductor PVC inxulated
and sheathed control
cable with braid armour

For flxed installation, laying indoors,
in trenches and ducts,
directly in ground where heavier
 mechanical withstood

KVVR

Copper conductor PVC insulated
and sheathed flexible
control cable

For laying indoors, movable
places where flexibility is requested

KVVRP

Copper conductor PVC insulated
and sheathed flexible
control cable with braid screen

For laying indoors, movable places
where flexibility and shield is
requested

Note:For flame resistance PVC insulated and sheathed cable ,add “ZR” in the front of above types. e.g. ZR-KVV.

Scope of cables Table2

Type

Rated
voltage
V

Nom.area of conductor (mm2)

0.5

0.75

1.0

1.5

2.5

4

6

10

No .of cores

KVV

450/750

-

2~61

2~61

2~61

2~61

2~14

2~14

2~10

KVVP

450/750

-

2~61

4~61

4~61

2~61

2~14

2~14

2~10

KVVP2

450/750

-

4~61

7~61

7~61

4~61

4~14

4~14

4~14

KVV22

450/750

-

7~61

4~61

4~61

4~61

4~14

4~14

4~14

KVVR

450/750

4~61

4~61

4~61

4~61

4~61

-

-

-

KVVRP

450/750

4~61

4~61

2~61

2~61

4~48

-

-

-


Construction table of conductor Table3

Nom. Cross-section
mm2

Conductor construction

DC resistance at 20℃
Ω/km( ≤)

Category

No ./Nom. Dia of strand
mm

0.5

3

16/0.20

39.0

0.75

1

1/0.97

24.5

0.75

2

7/0.37

24.5

0.75

3

24/0.20

26.0

1.0

1

1/1.13

18.1

1.0

2

7/0.43

18.1

1.0

3

32/0.20

19.5

1.5

1

1/1.38

12.1

1.5

2

7/0.52

12.1

1.5

3

30/0.25

13.3

2.5

1

1/1.78

7.41

2.5

2

7/0.68

7.41

2.5

3

50/0.25

7.98

4

1

1/2.25

4.61

4

2

7/0.85

4.61

6

1

1/2.76

3.08

6

2

7/1.04

3.08

10

2

7/1.35

1.83



 PVC insulated control cable

Company Information



Zhengzhou Yuanda Cable Co., Ltd

Established: 1996
Factory Area: 60,000 square meters, Building area of 40000 square meters

Fixed Assets: USD 200 million

Number of Employees: more than 1,000 staffs

Annual production Capacity:100,000tons.

Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.

Sub Factories: Rubber cable factory, conductor factory, cross-link cable factory ,cable factory, electric wire factory and special cable factory.

Zhengzhou Yuanda Cable has has a big wire &cable production base in Middle of China and we can deliver qualified cable products in very short lead time.



Remark: The cable has the feature of flame retardant, fire resistance and other properties .

we can manufacture cables according to clients detail requirements. If you have any demands, please feel free to contact us at any time. Tel:0086-0371-55699718

PVC insulated control cablePVC insulated control cablePVC insulated control cable
