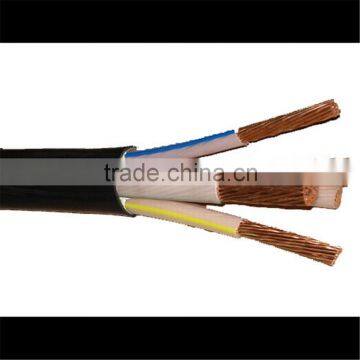

Help CenterXLPE Insulated and PVC/PE Sheated Power Cable
Related Products
-
PVC Insulated Control CableUS$ 2 - 15MOQ: 1000 Meters -
New Fire Retardant Cable 450/750V PVC Insulated And Sheathed Control CableUS$ 1 - 200MOQ: 50 Meters
-
Copper Conductor PVC Insulated Control CableUS$ 2 - 15MOQ: 1000 Meters
-
Copper Conductor PVC Insulated and Sheathed Control CableUS$ 2 - 15MOQ: 1000 Meters
-
Copper Conductor PVC Insulated and Sheathed Control Cable With Copper Tape ScreenUS$ 2 - 15MOQ: 1000 Meters
XLPE insulated electrical cable for rated voltage 0.6/1kv
Product standard:
GB/T12706.1-2002, Equivalent to IEC60502
Usage:
This product is suitable for use in rated AC voltage (Uo/U)0.6/1kv system transmitting and distributing circuit.
Property for Use:
1.It is far better than all property targets of PVC insulated power cable and has overcome the short comings of physical and chemical cross-linkage,and completely reaches or surpasses GB and IEC technical property value.
2.The allowed max.cable conductor work temperature is 90℃;urgent excess work temperature is 130℃ for short circuit(5s),nductor temperature is 250℃.
3.The environmental temperature for laying cable should be not less than 0℃.If laying under 0℃,the cable should be preheated.
4.The cable bend radius for single core should be not less than 12 times of overall cable diameter ;for multi-core cable, not less than 10 times of overall cable diameter.
5.The current-carrying capacity is large and not limited by drop during laying.
Type of cable:
Type |
Designation |
Application |
YJV |
Copper conductor, XLPE insulated and PVC sheathed power cable. |
For laying indoor, in tunnedls or cable trench, unable to bear external mechanical forces. |
YJLV |
Aluminum conductor, XLPE insulated and PVC sheathed power cable. |
|
YJY |
Copper conductor, XLPE insulated and PE sheathed power cable. |
|
YJLY |
Aluminum conductor, XLPE insulated and PE sheathed power cable. |
|

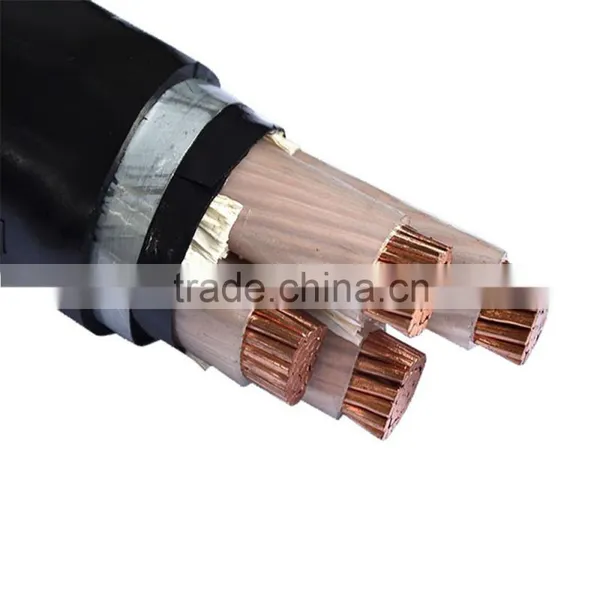

YJV22 |
Copper conductor, XLPE insulated, steel tape armored and PVC sheathed Electrical cable |
For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force
|
YJLV22 |
Aluminum conductor, XLPE insulated, steel tape armored and PE sheathed Electrical cable |
|
YJV23 |
Copper conductor, XLPE insulated, steel tape armored and PE sheathed electrical cable |
|
YJLV23 |
Aluminum conductor, XLPE insulated, steel tape armored and PE sheathed power cable. |
|
YJV32 |
Copper conductor, XLPE insulated, steel wire armored and PVC sheathed power cable |
For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force.
|
YJLV32 |
Aluminum conductor, XLPE insulated, steel wire armored and PVC sheathed power cable. |
|
YJV33 |
Copper conductor, XLPE insulated, steel wire armored and PE sheathed power cable. |
|
YJLV33 |
Aluminum conductor, XLPE insulated, steel wire armored and PE sheathed power cable. |
