Help CenterCopper Conductor PVC Insulated and Sheathed Control Cable
Related Products
-
Copper Conductor PVC Insulated and Sheathed Control Cable With Copper Tape ScreenUS$ 2 - 15MOQ: 1000 Meters -
Copper Conductor PVC Insulated and Sheathed Control Cable With Steel Tape ScreenUS$ 2 - 15MOQ: 1000 Meters
-
XLPE Insulated Control CableUS$ 2 - 15MOQ: 1000 Meters
-
Copper Conductor XLPE Insulated and PVC Sheathed Control CableUS$ 2 - 15MOQ: 1000 Meters
-
Copper Conductor XLPE Insulated and PVC Sheathed Flexible Control CableUS$ 2 - 15MOQ: 1000 Meters
Application
The cables are designed for connection wires of power distribution equip-ments for controlling, monitoring, protecting
circuits with A .C. rated voltage 450/750V and below.
Manufacturing standards
ASTM ICEA BS DIN IEC GB AS/NZS etc.
Operating features
2.1 The maximum permissible continuous operating temperature is 70℃
2.2 The lowest installation temperature of the cable is 0℃ .
2.3 Permissible Min. Bending radius not less than 6 times of the
completed cable diameter for unarmoured cable; not less than 12 times of the completed cable
diameter for armoured or copper tape screened cable; not less than 6 times of the completed cable diameter for screened flexible cable.

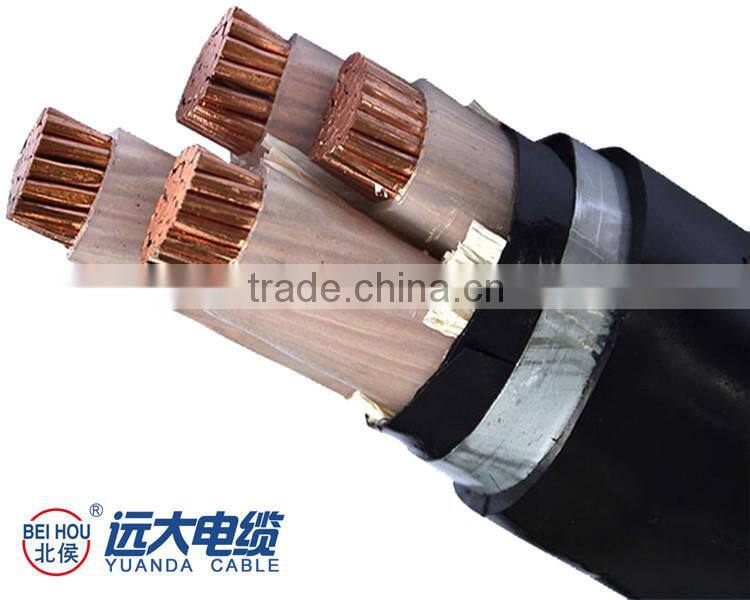

Sketches of product construction
PVC Insulated and Sheathed Control Cable
Type,description and main application Table1
Type |
Description |
Main Application |
KVV |
Copper conductor PVC insulated and Sheathed control cable |
For flxed installation, laying indoors, |
KVVP |
Copper conductor PVC insulated and sheathed control cable with copper cape screen |
For fixed installation, laying indoors, in trenches And ducts, directly in ground where screen is required |
KVVP2 |
Copper conductor PVC insulated and sheathed control cable with steel tape screen |
Ditto |
KVV22 |
Copper conductor PVC insulated and sheathed Control cable with braid armoured |
For flxed installation, laying indoors,in trenches and ducts, directly in ground where heavier mechanical withstood |
KVVR |
Copper conductor PVC insulated and Sheathed Flexible control cable |
For laying indoors, movable |
KVVRP |
Copper conductor PVC insulated and sheathed Flexible control cable with braid screen |
For laying indoors, movable places where flexibility and shield is requested |
Note:For flame resistance PVC insulated and sheathed cable ,add “ZR” in the front of above types. e.g. ZR-KVV.
Scope of cables Table2
Type |
Rated |
Nom.area of conductor (mm2) |
|||||||
0.5 |
0.75 |
1.0 |
1.5 |
2.5 |
4 |
6 |
10 |
||
No .of cores | |||||||||
KVV |
450/750 |
- |
2~61 |
2~61 |
2~61 |
2~61 |
2~14 |
2~14 |
2~10 |
KVVP |
450/750 |
- |
2~61 |
4~61 |
4~61 |
2~61 |
2~14 |
2~14 |
2~10 |
KVVP2 |
450/750 |
- |
4~61 |
7~61 |
7~61 |
4~61 |
4~14 |
4~14 |
4~14 |
KVV22 |
450/750 |
- |
7~61 |
4~61 |
4~61 |
4~61 |
4~14 |
4~14 |
4~14 |
KVVR |
450/750 |
4~61 |
4~61 |
4~61 |
4~61 |
4~61 |
- |
- |
- |
KVVRP |
450/750 |
4~61 |
4~61 |
2~61 |
2~61 |
4~48 |
- |
- |
- |
Packaging
In coils, wooden drums, steel drums or steel-wooden drums.
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
Shipping:
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
Thanks for your attention to our products,we specialize in power cable for many years,with good quality and pretty competitive price.Should you have any questions,please do not hesitate to contact me.
