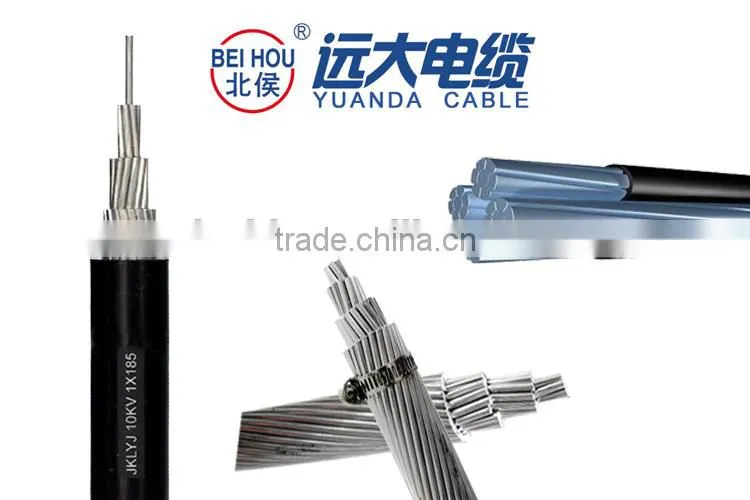

Aluminum Conductor/Service Drop Quadruplex Aerial Bundled Cable in Factory Price
1) Standard
This product can be manufactured according to standards of GB1179-83,GB/T1179-1999,Q/SX107-2001 and American standard ASTM-B231. The kind of rare earth products have super electrical conductivity, corrosion prevention and acid resistance and suitable to humid coastal areas.
2) Application requirements:
1. The highest working temperature of ACSR should not exceed 80oC.
2. The laying temperature should not lower than -20oC.
3. The permissible bending radius of conductor is 12 times that of outside diameter of cable.
3) Application:
The cable is used for transmitting electric power overhead, extensively in rebuilding of urban and forest region electric network, which can improve safety and reliance.
4) Specification:
Concentric aluminum stranded wires as phase conductor; AAAC(all aluminum alloy conductors) or ACSR(aluminum conductor steel reinforced) as nerural core; Phase conductor is insulated by XLPE or HDPE or PVC.
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.

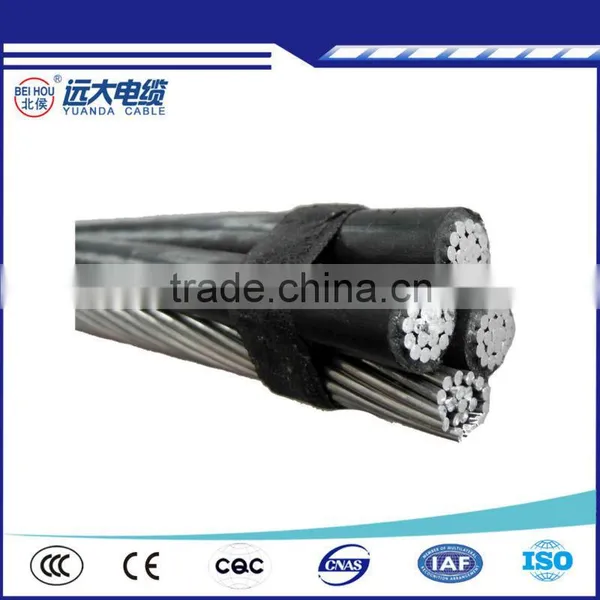

The basic construction is as follows:
3 cores consisting of standard aluminium conductors, insulated with XLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be galvanised steel wire
1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
Shipping:
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2. Large quantity will ship by sea.
1. We are factory, and raw materials are produced by ourself.
2. OEM service available based on official & legal authorization.
3. Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
Zhengzhou Yuanda Cable Co., Ltd
Established: 1996
Factory Area: 60,000 square meters, Building area of 40000 square meters
Fixed Assets: USD 200 million
Number of Employees: more than 1,000 staffs
Annual production Capacity:100,000tons.
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
Sub Factories: Rubber cable factory, conductor factory, cross-link cable factory ,cable factory, electric wire factory and special cable factory.
Zhengzhou Yuanda Cable has has a big wire & cable production base in Middle of China and we can deliver qualified cable products in very short lead time.
Q1: Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large manufacture in the middle of China with 1, 000 staff.
Q2: Where is your company? How can I visit there?
A: Our Company is located in Room 2304, Building 1, No. 157 Fuyuan Road, Jinshui District, Zhengzhou, Henan, China. Visitors can come to our company by train to Zhengzhou station or by plane to Zhengzhou Airport.
Q3:How can I get samples?
A: Free Samples will be sent to customers by economic international express if available, Freight Charge will be normally on buyer’s account.
Q4:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable Co., Ltd. has passed ISO 9001 and ISO 14001, CCC certificates. Each products must be went through professional test. We promise to provide qualified cables.
Q5: Which payment terms do you accept?
A: The payment term varies with different price and total value of each contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, and balance payment negotiable accordingly.
Other payment terms also can be available by both sides agreement.
Q6: Have you ever exported cables to other countries?
A: Yuanda Cables have been supplied to many countries especially in Middle East,Middle Asia,South America,Southeast Asia countries and regions etc.
Q7: What is your MOQ?
A: MOQ varies as per the cable type.Normally 500 meters for big diameter cables. Please feel free to contact us directly for detail information if you have any specific requirements.
