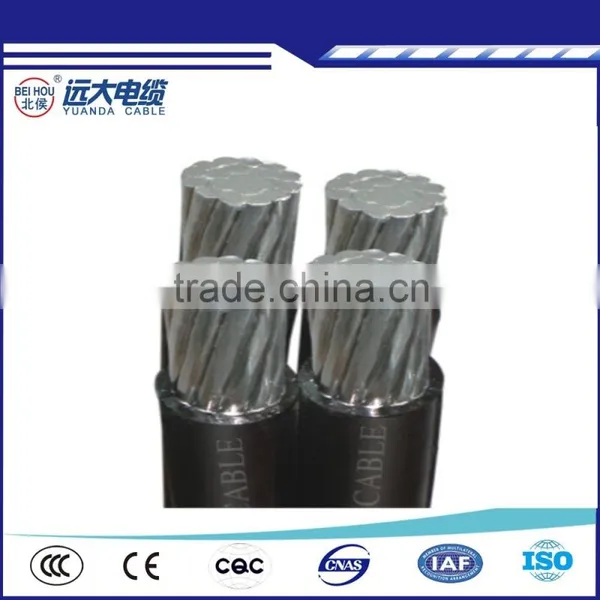

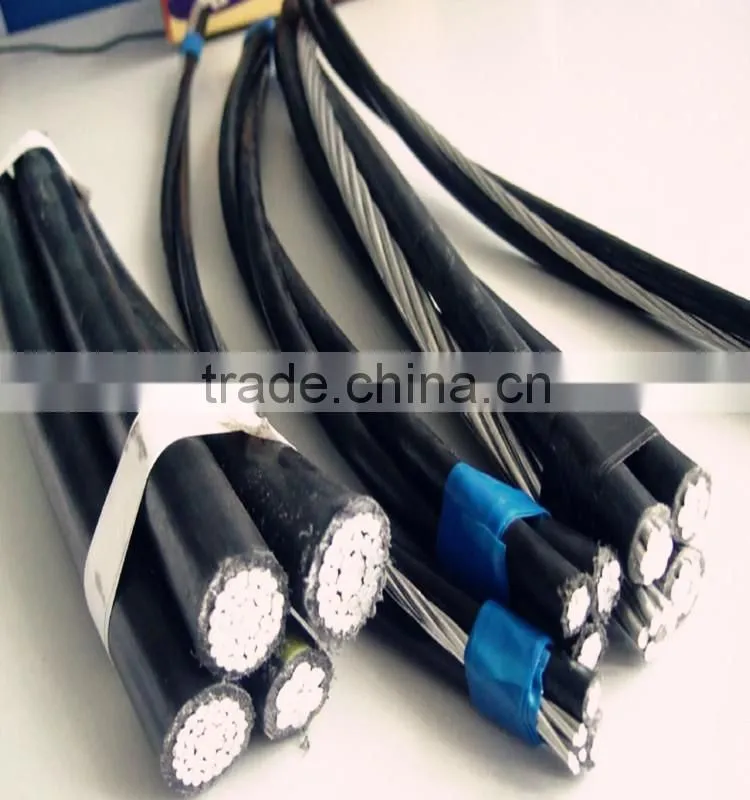

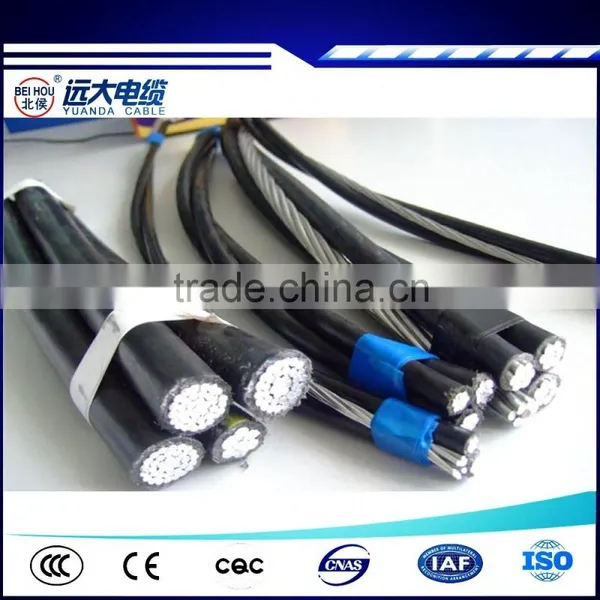

Low Voltage 25mm2 XLPE and PE Insulated AAC Conductor Overhead ABC Electric Cable
Application:
Used for overhead power transmission and distribution lines of AC rated voltage at rated voltage 10kV.
Model |
Core No. |
Section Area (mm2) |
Name |
JKYJ |
1 3 |
25-240 25-120 |
Copper XLPE Insulated Aerial Cable |
JKTRYJ |
1 3 |
25-240 25-120 |
Flexible Copper XLPE Insulated Aerial Cable |
Properties
Special features which we can offer for LV and MV cables:
* Watertight construction (both radial and longitudinal).
* Available in long delivery lengths to reduce number of joints.
* Aluminum conductor up to 240mm².
* Different options for insulation (XLPE,LDPE, MDPE & HDPE).
* Weather resistant insulation and sheath material.
Technical data:
|
No. × Nominal Section (mm2) |
Conductor Diameter (mm) |
Inner Shield Thickness (mm) |
Thickness (kg/km) |
The Overall Diameter (mm) |
Weight (kg/km) |
Breaking Force ≤ |
Max. Resistance at 20oC |
AC Voltage Testing (KV) |
1x25 |
6.2 |
0.6 |
3.4 |
14.2 |
344 |
8456 |
0.7490 |
18 |
1x35 |
7.2 |
0.6 |
3.4 |
15.2 |
445 |
11731 |
0.5400 |
18 |
1x50 |
8.5 |
0.6 |
3.4 |
16.5 |
594 |
16502 |
0.3990 |
18 |
1x70 |
10.2 |
0.6 |
3.4 |
18.2 |
792 |
23461 |
0.2760 |
18 |
1x95 |
11.8 |
0.7 |
3.4 |
20.0 |
1034 |
31759 |
0.1990 |
18 |
1x120 |
13.2 |
0.7 |
3.4 |
21.4 |
1280 |
39911 |
0.1580 |
18 |
1x150 |
14.8 |
0.7 |
3.4 |
23.0 |
1566 |
49505 |
0.1280 |
18 |
1x185 |
16.4 |
0.7 |
3.4 |
24.6 |
1897 |
64846 |
0.1021 |
18 |
1x240 |
18.6 |
0.7 |
3.4 |
26.8 |
2413 |
79823 |
0.0777 |
18 |
Standards
Rated voltages up to and including 1KV aerial insulated cable implement the standard GB/T 12527, AS/NZS 3560-1, BS 7870-5, VDE 0276-626-Al, ANSI/ICEA S-76-474 . Rated voltage 10KV aerial insulated cable implement the standard GB/T 14049.
Application Properties
Rated voltage is up to and including 1KV, 10KV.
The conductor long-term maximum working temperature:PVC and PE insulation should not exceed 70 °C,XLPE insulation should not exceed 90°C.
During short circuit (maximum permanent time is not more than 5 seconds), the maximum temperature of cable conductor : XLPE insulation 250°C, High-density polyethylene insulation 150°C;
When laying the cable, minimum ambient temperature of laying should not be lower than -20°C.
The minimum bending radius:≥20 (D+d)±5%mm, D is the cable overall diameter, d is the conductor diameter.
Rated voltage
Rate Voltage(kv):0.6/1kV 10kV 25kV 35kV
No. of core and sectional area(mm2) :
1 Core 10-400 2 Core 10-185
3 Core 10-185 4 Core 10-150
(1+k) Core 10-185 (2+k) Core 10-185
(3+k) Core 10-185 (1+k+16) Core 10-185
(2+k+16) Core 10-185 (3+k+16) Core 10-185
K is the no of neutral core or load bearing line core. According to engineering requirements, to select one to go with the main core.
(A) represents steel stranded neutral core.
(B) represents aluminium alloy stranded neutral core.
16mm2 for public lighting line

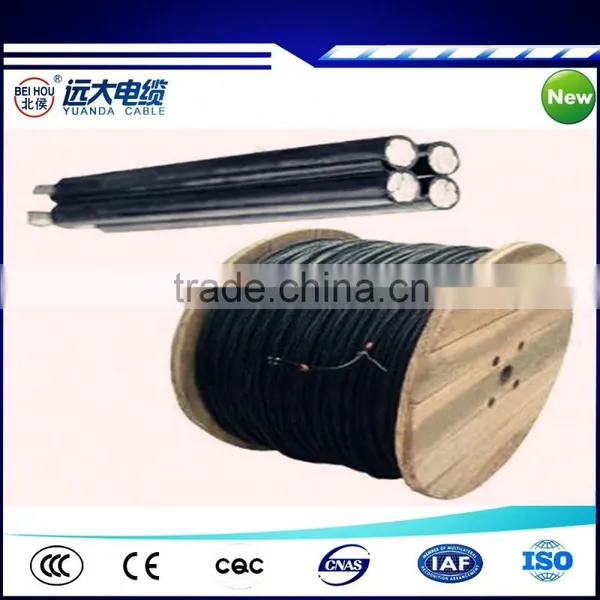

1).Wrapped in rolls/coils/rings with Plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
Packaging:
In rolls, wooden drums, steel drums or iron drums.
Shipping:
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
1.20 years professional cable manufacture experience since 1996.
2. Competitive price and standard quality.
3.Standardized quality management under ISO9001:2008
4.OEM (Original Equipment Manufacture)acceptable
5.Free sample are available.
6.24 hours online service,quickly response to your questions.
1.Q:Are you a factory or trading company?
A: Zhengzhou Yuanda Cable Co. Ltd (Headquarter) is a large manufacturing factory in middle of factory with 1, 000 staff.
2.Q:Where is your factory? How can I visit there?
A: Our factory is located in Room 2304, Building 1, No. 157 Fuyuan Road, Jinshui District, Zhengzhou, Henan, China. Visitors can come to our company by train to Zhengzhou station or by plane to Zhengzhou Airport.
3.Q:How can I get some samples?
A: Free Samples will be sent to customers by economic International Express if available, Freight Charge will be normally on buyer’s account.
4.Q:How does your factory do regarding quality control?
A: Zhengzhou Yuanda Cable Co., Ltd. has passed ISO 9001 and ISO 14001, CCC certificate. We promise to provide qualified cables.
5. Which payment terms do you accept?
A: The payment term varies with different price and total value of each contract.
Common terms are as follows:
a.100% TT advance for small amount orders.
b. T/T 30% deposit, and balance payment negotiable accordingly.
