Plastic lollipop sticks making machine
- 5 Set / Sets per Month
- Qingdao
- T/T Credit Card
- Plastic Lollipop / Candy Stick Extrusion Machine
- PVC reinforced hose machine / PVC steel wire reinforced hose extrusion line
- DF pen extrusion machine, pen refill machine
- HDPE Prestressed Flat Pipe Production Machine
- PVC fiber braided pipe extrusion line
- LDPE HDPE PE pipe extrusion line, small pipe making machine
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | Polystyrene |
Screw Design: | Single-screw | Place of Origin: | Shandong, China | Brand Name: | SHINE EAST |
Voltage: | 380V 3 50HZ or customised | Certification: | CE & ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. lollipop stick making machine2. fully automatic
3. stick diameter various form 1mm to 14mm
4.different stick color
Lollipop Stick Making Machine
Machine introduction:

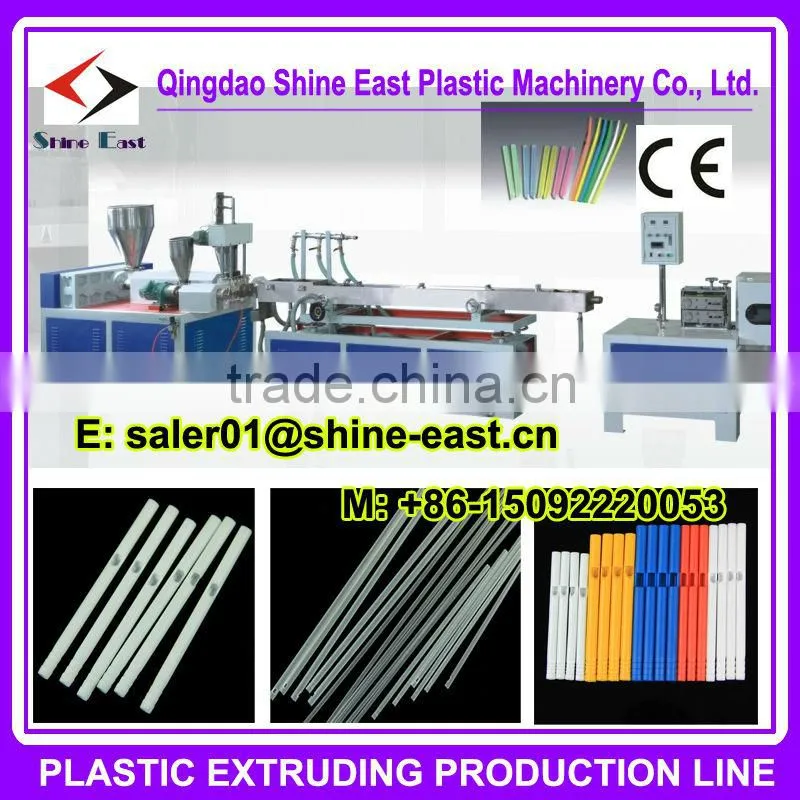

lollipop stick making machine is a lollipop stick extrusion line, composed of extruder, die, size setting and water cooling unit, haul-off unit, rotary cutter unit.The machines can produce all kinds of lollipop stick with one notch and two notches medical pipe.
Main technical parameter:
Model | JH01-245 | JH01-250 | JH01-255 |
Material | PP/PE | PP/PE | PP/PE |
Color | 1 color straw and 1 color line | 1 color straw and 1 color line | 1 color straw and 1 color line |
Production diameter | 1mm-14mm | 1mm-14mm | 1mm-14mm |
Production length | 3mm-1000mm | 3mm-1000mm | 3mm-1000mm |
Production capacity | Max>25Kg/h | Max>35Kg/h | Max>45Kg/h |
Line speed | Max>250Meter/min | Max>250Meter/min | Max>250Meter/min |
Main motor | VS5.5Kw by inverter control | VS7.5Kw by inverter control | VS11Kw by inverter control |
Assistant motor | 1×VS0.75Kw by inverter control | 1×VS0.75Kw by inverter control | 1×VS0.75Kw by inverter control |
Heater capacity | 10Kw | 11Kw | 12Kw |
Temperature control | 8set | 8set | 8set |
Forming and water cooling unit | 3.5m(can choice 5m) | 3.5m(can choice 5m) | 3.5m(can choice 5m) |
Traction and cutting unit | 2×VS0.75Kw by inverter control | 2×VS0.75Kw by inverter control | 2×VS0.75Kw by inverter control |
Total power | 20Kw | 22Kw | 28Kw |
Total power used | 11kwh/h | 13kwh/h | 18kwh/h |
Weight | 900Kg | 1000Kg | 1200Kg |
Dimension | 10×2 L×W(m) | 10×2 L×W(m) | 10×2 L×W(m) |
Pre-sale
We provide presales service in various forms, for example, making investment budget, manufacturing planning, etc. So that customers make a reasonable plan with less cost.
In-sale
Detailed design of lay-out that is the position of the procession
Technological information of the machine you want
Schedule about design, manufacturing and installation
Working & Producing progression
Training course for the technician so that the installation is safe and standard
After-sale
For customers buying our products, we provide them free training so that they can use and maintain
the machine independently. Our Warranty is 1 year for whole machinery. We will provide the technical
advice and find the solution immediately for you when the machine is in trouble-shoot. For those wear parts, we guarantee the high quality parts for long-term supply
For choosing proper machine and saving your time, please read these bellow guides carefully
1). What kinds of plastic machinery do you need ? Or what material do you want to process?
2). What capacity do you want? (tons per hour )
3).what is the diameter and thickness ?
4).what is the electric device you need ? Siemens,Omrn or domestic ?
5) When do you want the machine? (times for delivery)
6) Other requirements about the machine you want.
7) Please inform us your voltage, all we offer is 380V/3P/50HZ
