Specifications

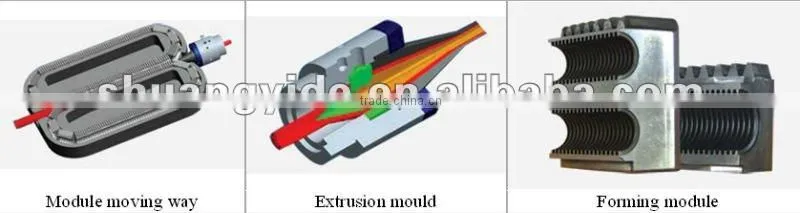

1.Close type and offer vacuum forming2.Forming module is moving in a tunnel
rrugation pipe
4. high quality and low price

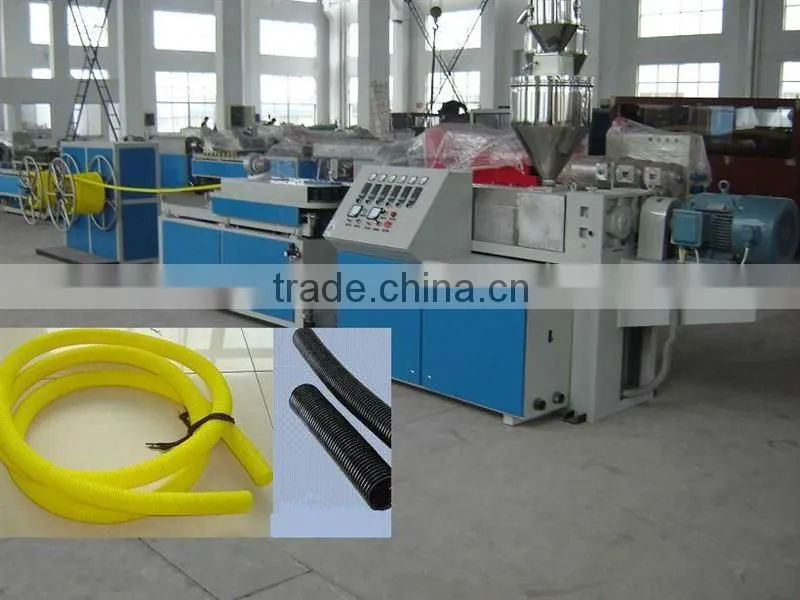

Corrugated hose machine for PP PE plastic
The single-wall corrugated pipe is a new type cable jacket and water feeding and discharging pipe, firstly emerged in the Europe. Owing to many excellent features such as smooth inside-wall, high strength, lower weight, corrosion resistant, long life, flexibility, easy connection and so on, it turns out to be a good product to take place traditional pipe and is widely used in city rainwater and sewage discharge, drainage of residential district and mining enterprise, low pressure water input of tap water and water conservancy project; aeration system, wire and cable construction etc, gaining high appreciation from departments of electric power, postal service, city planning, water arrangement etc.
Technique Parameter:
specification |
4-32 |
8-58 |
quantity of module |
40 70 90 |
40 70 90 |
extruder |
SJ-45/30 |
SJ-65/30 |
max. line speed |
40m/min |
40m/min |
The single wall corrugated pipe extrusion line is featured with compact structure, easy operation and maintenance. The mould blocks are driven by chain. The whole production line is including:
1. Single screw extruder, model of extruder depends on the pipe diameter and output capacity request.
2. Die head.
3. Forming machine. The corrugated pipe is formed by two groups of calibration mould block. The pipe is cooling by fan.
4. Haul-off machine. Caterpillar haul-off machine.
5. Winder. Two position winder.

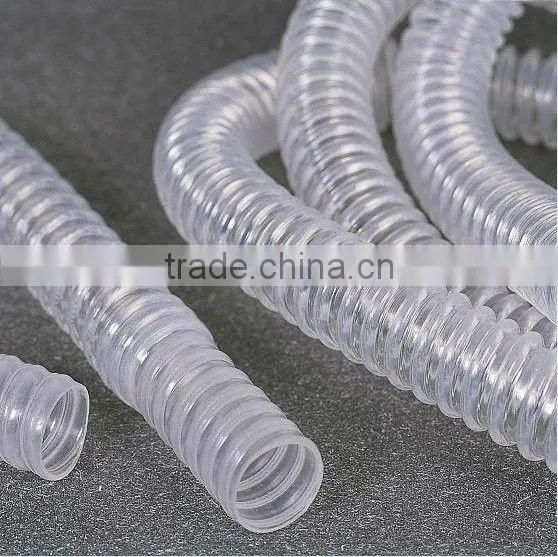

Pipe produced by this PE/PP single wall corrugated pipe extrusion line is featured with high temperature resistance, anti-erosion, anti-abrasion and high strength. The pipe can be used as wire conduit of electrical appliance and automobile, oil pipe in automobile braking system, protection pipe, lamps and for high temperature gas/chemical liquid transferring.
Kefengyuan special designed screw and special structure mould can protect the screw and barrel from easy abrasion and give an easy forming process.
For material PA, temperature range -40centidegree - 115centidegree, no halide: the pipe’s anti-oil, anti-acid. Inflammation grade is HB (UL94). Black pipe is ultraviolet resistant.
For material PP, temperature range -20C - 110C, the pipe’s anti-oil anti-acid, anti-base. Black pipe is ultraviolet resistant.
For material PE, temperature range -40C - 80C, the pipe’s anti-oil anti-acid, anti-base. Black pipe is ultraviolet resistant.
Technique Parameter:
Model |
KFYDPEG-90 |
KFYDPEG-65 |
KFYDPEG-45 |
KFYDPEG-30 |
Screw diameter (mm) |
Φ90 |
Φ65 |
Φ45 |
Φ30 |
L/D |
30/1 |
30/1 |
30/1 |
30/1 |
Output (kg/h) |
200 |
100 |
40 |
20 |
Total power (kw) |
120 |
80 |
50 |
20 |
Pipe dia. Range (mm) |
Φ110-Φ200 |
Φ16-Φ75 |
Φ8-Φ50 |
Φ2-Φ15 |
Haul off speed (m/min) |
10 |
10 |
15 |
15 |
Capacity annually (10km) |
150 |
150 |
150 |
150 |
Module:
production line
Product:
