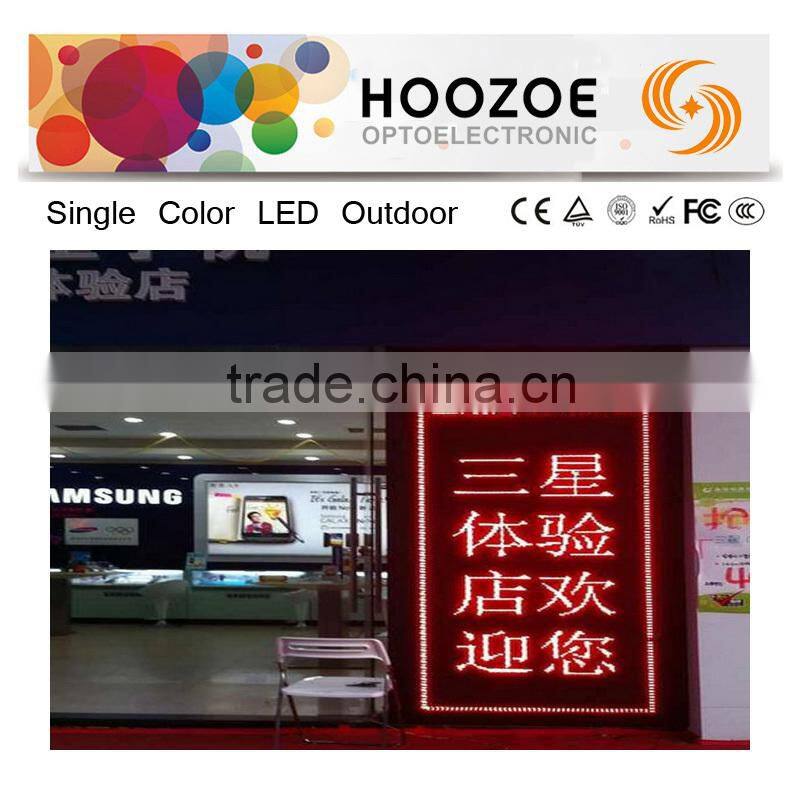

Hoozoe Waterproof Series-P10 outdoor single color led screen

Name: Hoozoe Waterproof Series-P10 outdoor single color led screen
Brand: Hoozoe
Price: Negotiable

FOB Price

Negotiable / Square Meter

10 Square Meters(Min.Order)

Product Details

1.High Stability, Power Saving
2. Convenient assemble and save space
3. High Cost Performance
4. Ultrathin
5. CE, 3C etc.

P10 Outdoor Single Color LED Module
Item	Unit	Parameter
Pixel Pitch	mm	10.00
Pixel Density	dots/sqm	10,000
Resolution of Module	dots	32*16
Module Size	mm	320x160
HUB		12
Led Package	DIP Oval 346 lamp
Pixel Configuration	1R/1G/1W/1B/1Y
Chip Brand of LEDs	Epistar
Module Weight	kgs/pc	0.56KG
Brightness (White Balance)	nits(cd/sq.m)	1500--3000
Red Wavelength	nm	620-625
Green Wavelength	nm	520-525
Blue Wavelength	nm	470-475
Scan Mode	1/4 Scan
View Distance	M	5-100
Best View Distance	M	12.5-33
Viewing Angle-Horizontal	deg.	80
Viewing Angle-Vertical	deg.	60
Module Maximum Power	W	<20
Max. Power Consumption	W/sq.m	400
Avg. Power Consumption	W/sq.m	100-200
Working Voltage	40A 5V
Power Supply	AC 110/220V
Waterproof Grade	IP65
Refresh Rate	Hz/S	≥ 120
Frame Rate	Hz/S	≥ 60
Gray Scale	4096 grades gray
Display Color	256
Display Function	Text,news,advertising,flash,animation
Input Signal	Red; Bule(Green); STB; CLK; GND; OE
Luminance Degradation	Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25℃.
Defective Dot Rate		<0.0001
Life Span	hours	100,000
MTBF	hours	>10,000
Storage Temperature	℃	-35 -- +80
Working Temperature	℃	-45 -- +80
Working Humidity	10%-90%RH
Control System	Synchronization or Asynchronization
Quality Certificate	ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008
Warrenty	2 Years
Working Environment	Outdoor
Other Fertures	LED&ICs in Departed PCB
Note: The above parameter is just for reference. Changes can be made according to customers' requirements.

Our Case

Reference Pictures

Connection Picture

Packaging & Shipping

Our Services

(1). Product Quality : For LED Modules , 24 hours Aging test before shippment;

For LED Display, 72 hours Aging test before shippment

which will avoid some problems and make customers satisfied with

the quality of our led products.

(2). After Sale Service : 1 year warranty ;

Complete instruction for led screen installation

Professional technical team for remote control maintenance .

Fujian Hoozoe Optoelectronic Co., Ltd.: Contact nameModern Dai; Phone0086-595-28765512; AddressNo.153, Chongxiang Rd., Qingmeng Zone Quanzhou,Fujian
