Hoozoe Waterproof Series-P10 outdoor single color led timer
Negotiable
/ Square Meter
10 Square Meters(Min.Order)
- 10000 Square Meter / Square Meters per Month
- XIAMEN
- T/T Credit Card
You May Like
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Fujian, China | Brand Name: | Hoozoe | Model Number: | Hoozoe-Outdoor-DIP-P10-1R |
Usage: | Outdoor | Tube Chip Color: | Red | Display Function: | Other, Message,Picture,Text |
Pixels: | 10mm | Screen Dimension: | 960*960mm |
Product Description
Specifications
1.High Stability, Power Saving2. Convenient assemble and save space
3. High Cost Performance
4. Ultrathin
5. CE, 3C etc.
P10 Outdoor Single Color LED Module | ||
Item | Unit | Parameter |
Pixel Pitch | mm | 10.00 |
Pixel Density | dots/sqm | 10,000 |
Resolution of Module | dots | 32*16 |
Module Size | mm | 320x160 |
HUB | 12 | |
Led Package | DIP Oval 346 lamp | |
Pixel Configuration | 1R/1G/1W/1B/1Y | |
Chip Brand of LEDs | Epistar | |
Module Weight | kgs/pc | 0.56KG |
Brightness (White Balance) | nits(cd/sq.m) | 1500--3000 |
Red Wavelength | nm | 620-625 |
Green Wavelength | nm | 520-525 |
Blue Wavelength | nm | 470-475 |
Scan Mode | 1/4 Scan | |
View Distance | M | 5-100 |
Best View Distance | M | 12.5-33 |
Viewing Angle-Horizontal | deg. | 80 |
Viewing Angle-Vertical | deg. | 60 |
Module Maximum Power | W | <20 |
Max. Power Consumption | W/sq.m | 400 |
Avg. Power Consumption | W/sq.m | 100-200 |
Working Voltage | 40A 5V | |
Power Supply | AC 110/220V | |
Waterproof Grade | IP65 | |
Refresh Rate | Hz/S | ≥ 120 |
Frame Rate | Hz/S | ≥ 60 |
Gray Scale | 4096 grades gray | |
Display Color | 256 | |
Display Function | Text,news,advertising,flash,animation | |
Input Signal | Red; Bule(Green); STB; CLK; GND; OE | |
Luminance Degradation | Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25℃. | |
Defective Dot Rate | <0.0001 | |
Life Span | hours | 100,000 |
MTBF | hours | >10,000 |
Storage Temperature | ℃ | -35 -- +80 |
Working Temperature | ℃ | -45 -- +80 |
Working Humidity | 10%-90%RH | |
Control System | Synchronization or Asynchronization | |
Quality Certificate | ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008 | |
Warrenty | 2 Years | |
Working Environment | Outdoor | |
Other Fertures | LED&ICs in Departed PCB | |
Note: The above parameter is just for reference. Changes can be made according to customers' requirements. |

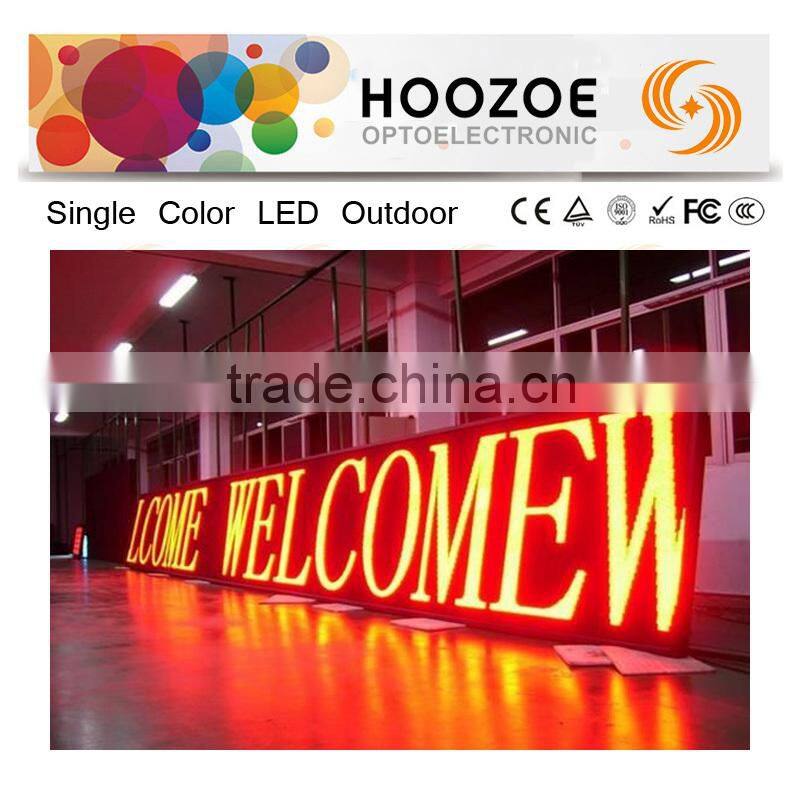

Our Case
Reference Pictures
Connection Picture
Packaging & Shipping
Our Services
(1). Product Quality : For LED Modules , 24 hours Aging test before shippment;
For LED Display, 72 hours Aging test before shippment
which will avoid some problems and make customers satisfied with
the quality of our led products.
(2). After Sale Service : 1 year warranty ;
Complete instruction for led screen installation
Professional technical team for remote control maintenance .
Company Information

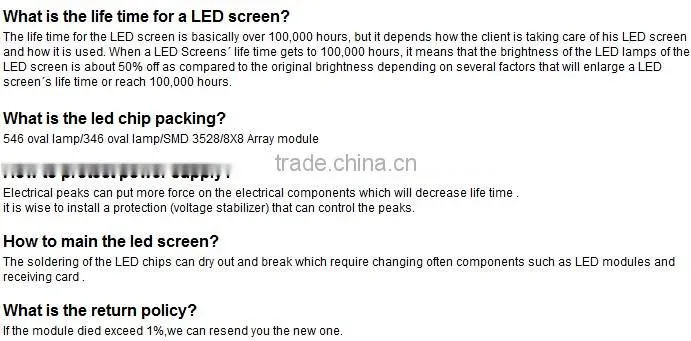

FAQ
Contact Us
- Fujian Hoozoe Optoelectronic Co., Ltd.
- Contact nameModern Dai
- Phone0086-595-28765512
- AddressNo.153, Chongxiang Rd., Qingmeng Zone Quanzhou,Fujian
