Specifications
1.EVDO Rev.A /Rev.o cwdm network2.Max download speed:3.1Mbps
3.Frequency Range:800MHz
4.Data and SMS
ST822 EVDO wireless modem
The USB-stick modem provides high-speed data services by accessing EVDOrA/EVDOr0/cdma2000 1x networks. The maximum rate of downlink is 3.1Mbps and the maximum rate of uplink is 1.8Mbps. The software is installed automatically without CDROM and supports one-button to connect with internet. SMS servcie is also supported.
Specification:
| Chipset | Qualcomm | QSC6085 |
| Technical Standard | EVDOrA | CDMA 1XEV-DO Revision A DL 3.1Mbps UL 1.8Mbps |
| EVDOr0 | CDMA 1XEV-DO Revision 0 DL 2.4Mbps DL153.6kbps | |
| cdma2000 1x | CDMA 1XRTT DL 153.6kbps DL153.6kbps | |
| Frequency Band | EVDOrA/EVDOr0/cdma2000 1x | 800M(Default) 1900M (optional ) |
| Power Class |
EVDOrA/EVDOr0/cdma2000 1x | Power Class III(+23dBm)800M |
| Power Class II(+23dBm)1900M | ||
| Conduction Rx sensitivity | EVDOrA/EVDOr0/cdma2000 1x | < -105dBm |
| External Interface | CDMA Antenna | Internal Antenna |
| USB Type | standard 5V USB Interface | |
| USB Speed | USB 2.0 Full Speed | |
| Power Mode | Powered via the USB interface | |
| SIM/USIM Card | standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102 | |
| AT Interface | Compliant with China Telecom. Standard | |
| Main Features | Form Factor | USB stick |
| Available Colors | Black/ White, other colors upon customer requirements | |
| Dimension (mm) | 88mm(L)×26mm(W)×10.5mm(H) | |
| Weight (g) | TBD | |
| Visual Indicator(LED) | A red LED lights, turn Always, the data flow of the red light flashes | |
| Micro-SD Card Slot | Supported, Max up to 4G Supported | |
| Main Software Functions | PIN1 | Supported,enable/disable/modify |
| PC Voice | Supported | |
| Languages Supported | Chinese and English, more languages could be supported upon customer requirements | |
| SMS | Supported | |
| PhoneBook | Supported | |
| SMS and Data service simultaneously Operation | Supported | |
| Setup Mode | Plug & Auto Installation | |
| Zero-CD installation | Supported | |
| Operate System Supported | Win2000/ XP/VISTA/Win7 32bit/64bit ,OS Mac |
Packing:
Carton
ST822 EVDO Modem
User Manual
Warranty & maintenance:
We provide 12 months maintenance warranties. Items can be replaced during the first month
or maintained for the first year.
Buyers are only responsible for the return shipping fees for warranty items.(In most cases,
buyer will only have to return the problem components rather than the entire package.).
Before returning items, please make sure you get our (the seller’s) return address, and write
“gift” on the delivery detail sheet. Please use regular postal service and send us the tracking
number. As soon as we receive the items, we will repair or exchange them ASAP.

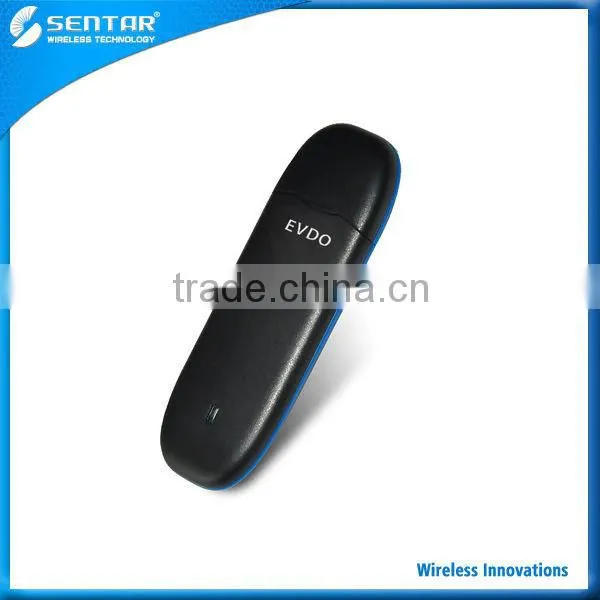

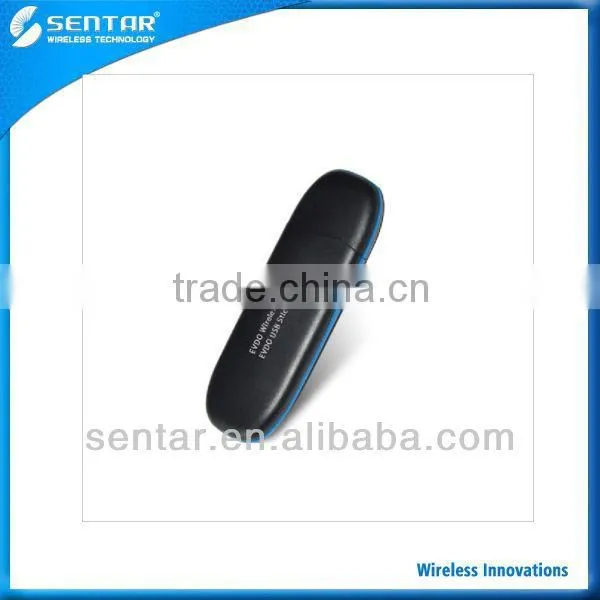

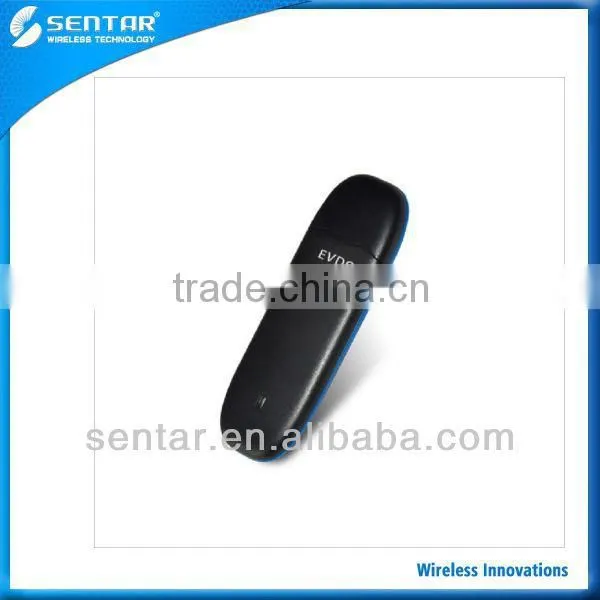

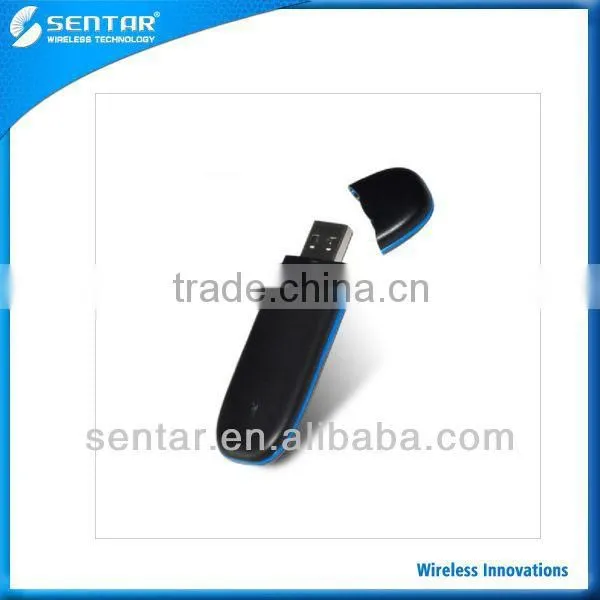

Product pictures:
Certificates:
Notice:
We are the professional OEM/ODM manufactory in this line and customized OEM packing,logo printing as well different language web interface baced on your order.
We can guarantee to give you best professional free support services with the help of our techology support engineers.
