ST912V Software 3g HSUPA modem(Zero-CD) provides high-speed data services by accessing HSUPA/WCDMA networks. The maximum rate of HSUPA downlink is 7.2Mbps and the maximum rate of HSUPA uplink is 5.76Mbps. The software is installed automatically without CDROM and supports one-button to connect with internet. SMS servcie is also supported.
Specification:
| Item | Description | |
| Model | HSUPA USB MODEM ST912V | The USB-stick modem provides high-speed data services by accessing HSUPA/WCDMA/EDGE/GPRS/GSM networks. The maximum rate of HSUPA downlink is 7.2Mbps and the maximum rate of HSUPA uplink is 5.76Mbps. The software is installed automatically without CDROM and supports one-button to connect with internet. SMS servcie is also supported.. |
| Technical Standard | Base Band | EGPRS Class12 DL 237kbps UL 118Kbps |
| HSUPA | 3GPP R6 DL 7.2Mbps UL 5.76Mbps | |
| HSDPA | 3GPP R5 DL 3.6Mbps UL 384kbps | |
| UMTS | 3GPP R5 DL 384kbps DL 384kbps | |
| EDGE | EGPRS Class12 DL 237kbps UL 118Kbps | |
| GPRS | GPRS Class12 DL 85.6kbps UL 42.8kbps | |
| Chipset | Qualcomm | MSM7200/7600 |
| Frequency Band | GSM/GPRS/EDGE | 850/900/1800/1900Mhz |
| UMTS | 2100M | |
| Power Class |
WCDMA | Power Class 3(+24dBm) |
| GPRS/GSM 850/900 | Power Class 4(+33dBm) | |
| GPRS/GSM 1800/1900 | Power Class 1(+30dBm) | |
| EDGE 850/900 | Power Class E2(+27dBm) | |
| EDGE 1800/1900 | Power Class E2(+26dBm) | |
| Conduction Rx sensitivity | 850M/EGSM/DCS/PCS | < -106dBm |
| UMTS 2.1G | < -106dBm | |
| External Interface | UMTS/GSM Antenna | Internal Antenna |
| USB Type | standard 5V USB Interface | |
| USB Speed | USB 2.0 High Speed | |
| Power Mode | Powered via the USB interface | |
| SIM/USIM Card | standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102 | |
| AT Interface | 3GPP TS 27.005/3GPP TS27.007 supported | |
| Main Features | Form Factor | USB stick |
| Available Colors | White , other colors upon customer requirements | |
| Dimension (mm) | 88mm(L)×26mm(W)×10.5mm(H) | |
| Weight (g) | TBD | |
| Visual Indicator(LED) | a blue LED | |
| Micro-SD Card Slot | Supported, Max up to 16G Supported | |
| Main Software Functions | PIN1 | Supported,enable/disable/modify |
| Voice | Will support later | |
| Languages Supported | Chinese and English, more languages could be supported upon customer requirements | |
| SMS | Supported | |
| PhoneBook | Supported | |
| SMS and Data service simultaneously Operation | Supported | |
| Setup Mode | Plug & Auto Installation | |
| Zero-CD installation | Supported | |
| PhoneBook | new contacts | Supported |
| edit contacts | Supported | |
| delete contacts | Supported | |
| send SMS | Supported | |
| SMS | Group messages | Supported |
| new SMS | Supported | |
| send SMS | Supported | |
| save SMS to drafts | Supported | |
| reply SMS | Supported | |
| forward SMS | Supported | |
| delete SMS | Supported | |
| Support OS | Windows | Win8/Win7/WinXP/Vista/Win2000/MAC |
| MAC OS | Supported | |
| LINUX | Supported | |
| ANDROID | Supported | |
| Certification | ROHS | compliant with ROHS |
| CE | compliant with CE | |
| Microsoft WHQL | Supported | |
| Other | Could be supported upon customer requirements | |
| Standard packing | HSDPA USB Modem | 1 |
| Quick guide | 1 | |
Using guide:
This user guide helps you use ST912V modem quickly.
1.Check your notebook and make sure it comes with a USB port which the HSUPA modem requires
2.Insert UIM card into the modem correctly
3.Turn on your computer and insert HSUPA modem into a USB port; the installation process will start automatically; follow the on-screen instructions to complete driver installation
4.You can connect to the Internet, make a call and send a message by clicking the HSUPA icon on your desktop
Warranty & maintenance:
We provide 12 months maintenance warranties. Items can be replaced during the first month or maintained for the first year.
Buyers are only responsible for the return shipping fees for warranty items.(In most cases, buyer will only have to return the problem components rather than the entire package.).
Before returning items, please make sure you get our (the seller’s) return address, and write “gift” on the delivery detail sheet. Please use regular postal service and send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.

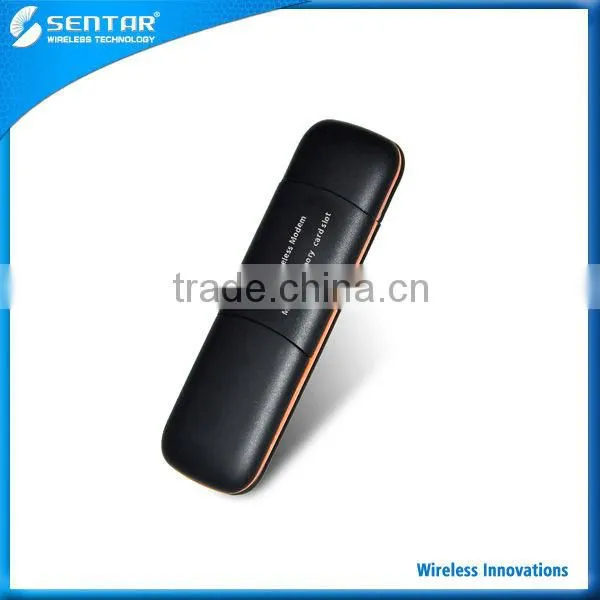

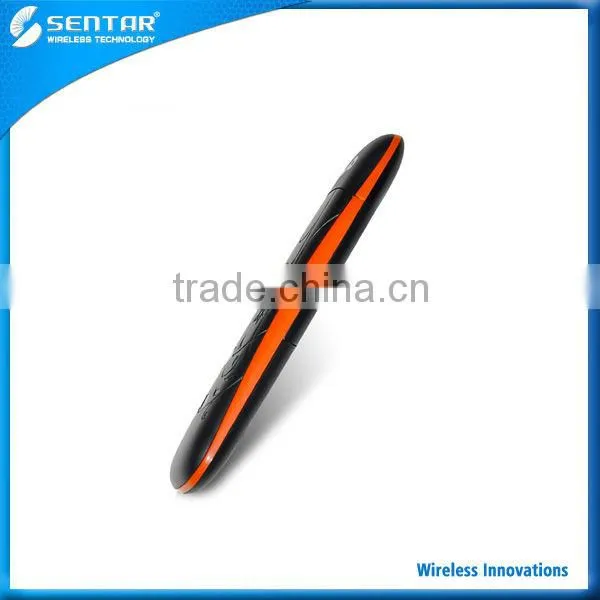

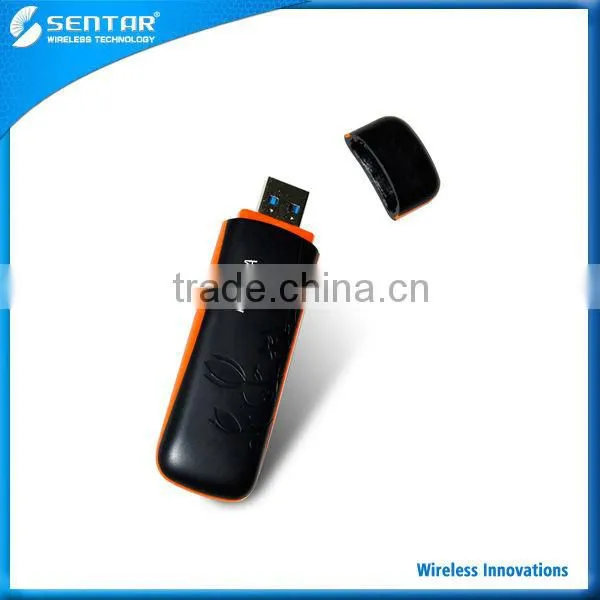

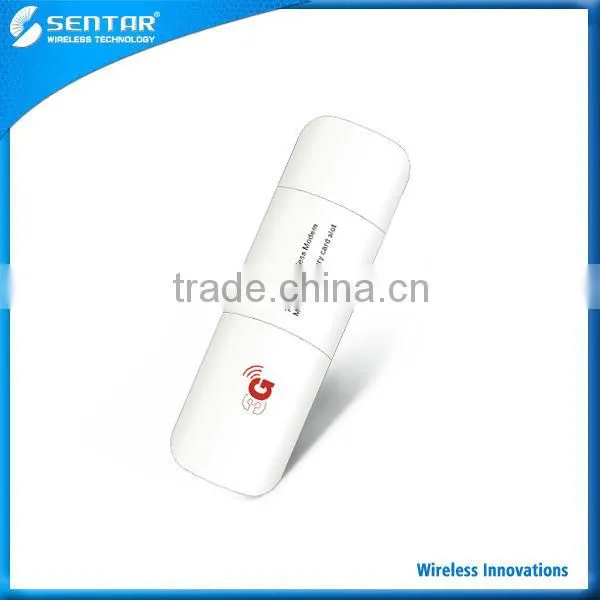

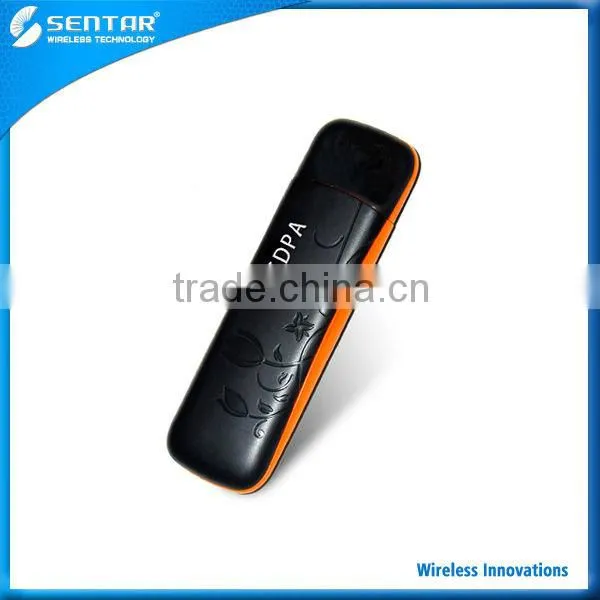

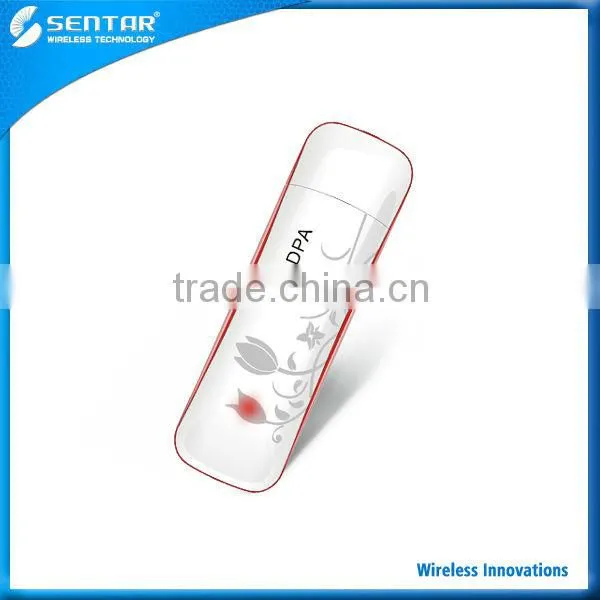

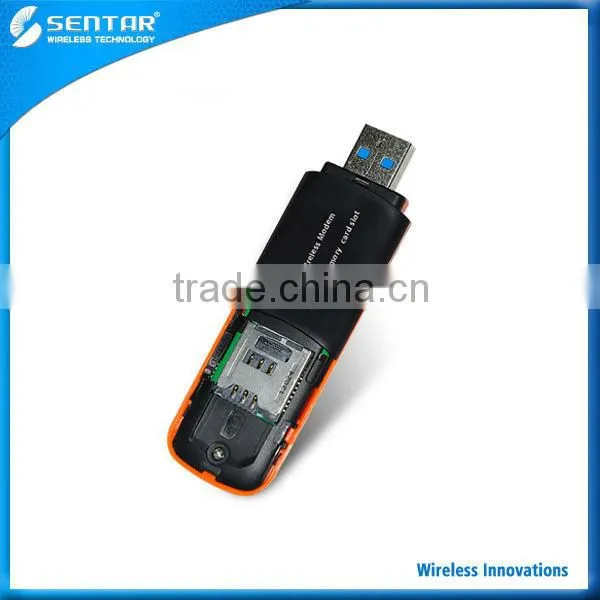

Product pictures:

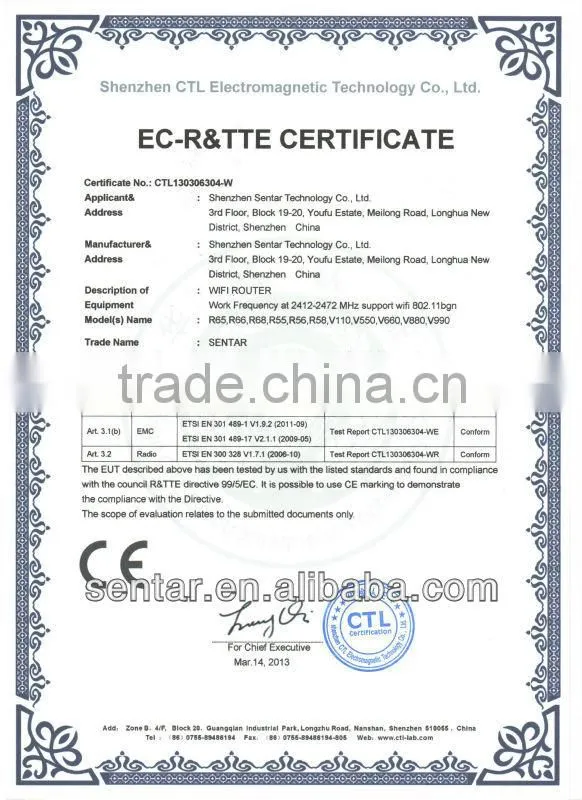

Certificates:
Notice:
We are the professional OEM/ODM manufactory in this line and customized OEM packing,logo printing as well different language web interface baced on your order. We can guarantee to give you best professional free support services with the help of our techology support engineers.
