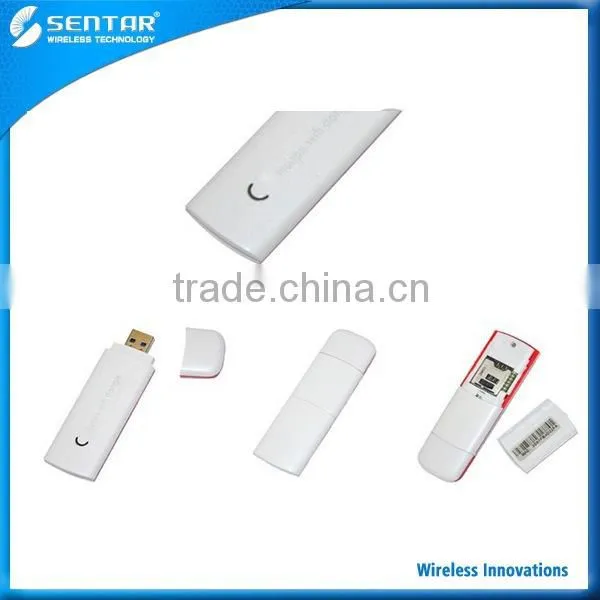

3G Sim Card USB WiFi Modem WiFi Dongle 14.4Mbps/7.2Mbps Support HSUPA /GSM/GPRS/EDGE Network
US$ 15 - 28
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wireless
Application:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3G Mini USB Modem 3G USB HSUPA WCDMA GSM Dongle ST912VUS$ 8 - 10MOQ: 50 Pieces -
2015 Hot Selling Top Quality Unlock 3G WCDMA USB Modem DongleUS$ 8 - 10MOQ: 100 Pieces
-
3g Evdo Wireless Data CardUS$ 8 - 10MOQ: 1 Piece
-
USB EVDO Modem DL 3.1Mbps , Zero-cd Required , Support Windows7/8 XP VistaUS$ 8 - 10MOQ: 50 Pieces
-
Hot Wireless Router Portable 3G Wifi Router R68W With SIM Card Slot RJ45 LAN PortUS$ 22 - 27MOQ: 10 Pieces
Products Status
Stock
Type
Wireless
Application
Other
LAN Ports
Other
WAN Ports
Other
Certification
CE & RTTE & LVD & RF& FCC
Brand Name
Sentar
Model Number
F17
Place of Origin
Guangdong, China
Specifications
wifi modem with sim card slot-support WCDMA HSUPA 2100mHZ
- Support EDGE GPRS GSM
- DL 14.4M UL 5.76M
wifi modem with sim card slot up to 14Mbps/wifi dongle support HSUPA /GSM/GPRS/EDGE network
Specs:
| Item | Description | |
| Model | HSUPA WIFI Dongle F17 | Sentar F17 is Based on qualcomm platform, supports UMTS Band class I/ II /V triband and supports GSM/EDGE,GSM850/900/1800/1900Mhz,DCS,PCS four frequency band.The UMT supports HSPA Realease6,the maximum rate of HSUPA downlink is 7.2Mbps( opiton 14.4M) and the maximum rate of HSUPA uplink is 5.76Mbps. |
| Technical Standard | HSUPA | 3GPP R6 DL 7.2Mbps(option 14.4M) UL 5.76Mbps |
| HSDPA | 3GPP R5 DL 3.6Mbps UL 384kbps | |
| UMTS | 3GPP R5 DL 384kbps DL 384kbps | |
| EDGE | EGPRS Class12 DL 237kbps UL 118Kbps | |
| GPRS | GPRS Class12 DL 85.6kbps UL 42.8kbps | |
| Frequency Band | GSM/GPRS/EDGE | 850Mhz/900Mhz/1800Mhz/1900MHz(optional) |
| UMTS | 2100Mhz | |
| Power Class |
WCDMA | Power Class 3(+24dBm) |
| GPRS/GSM 900 | Power Class 4(+33dBm) | |
| GPRS/GSM 1800 | Power Class 1(+30dBm) | |
| EDGE 900 | Power Class E2(+27dBm) | |
| EDGE 1800 | Power Class E2(+26dBm) | |
| Conduction Rx sensitivity | EGSM/DCS/PCS | < -106dBm |
| UMTS | < -106dBm | |
| External Interface | UMTS/GSM Antenna | Internal Antenna |
| USB Type | USB2.0 connection and charger | |
| Power Mode | Powered via the USB interface | |
| SIM/USIM Card | standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102 | |
| AT Interface | 3GPP TS 27.005/3GPP TS27.007 supported | |
| Support Standard | IEEE802.11b/g(2.4Ghz) | |
| Wifi Routing | Support Band | 2.412Ghz~2.484Ghz |
| User capacity | Support up to eight users |
|
| Router setting | Support SSID,Gateway,DHCP,MAC,APN setting | |
| Router security | Support WIFI Security: OPEN-WEP, SHARE-WEP,WPA-TKIP,WPA2-AES |
|
| Available Colors | Black, other colors upon customer requirements | |
| Main Features | Dimension (mm) | 88mm×28mm×10mm |
| Weight (g) | 10g | |
| Visual Indicator(LED) | 3G,WIFI | |
| PIN1 | Supported,enable/disable/modify | |
| Main Software Functions | Languages Supported | English, more languages could be supported upon customer requirements |
| SMS | Supported | |
| PhoneBook | Supported | |
| Operate System Supported | Win2000/Win2003/ XP/VISTA/Win7/Win8 32bit/64bit , MAC OS, Android | |
| new contacts | Supported | |
| PhoneBook | edit contacts | Supported |
| delete contacts | Supported | |
| Group messages | Supported | |
| SMS | new SMS | Supported |
| send SMS | Supported | |
| save SMS to drafts | Supported | |
| delete SMS | Supported | |
| Windows | Win8/Win7/WinXP/Vista/Win2000 | |
| Support OS | MAC OS | Supported |
| ANDROID | Supported | |
| ROHS | compliant with ROHS | |
| Certification | CE | compliant with CE |
| Microsoft WHQL | Supported | |
| Other | Could be supported upon customer requirements | |
| Quick guide | 1 | |
Pics:
Click next pic to get more info of our products :

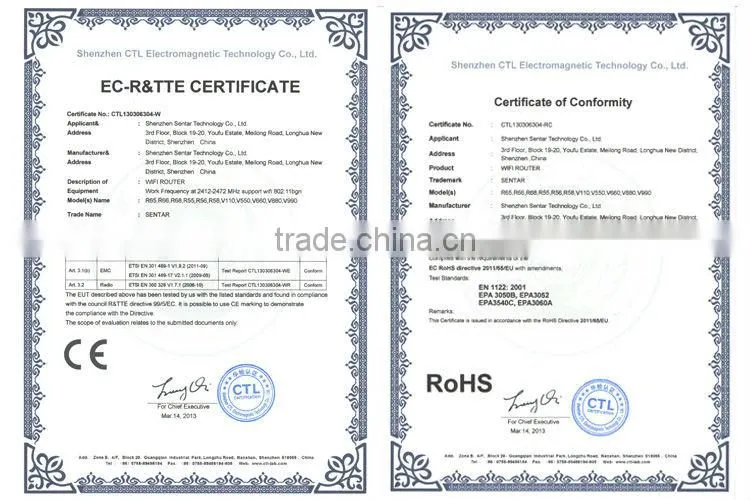

Certification:
Choose sentarwireless, choose win-win business!!!
We are the most professional OEM/ODM manufacture in 3G products field who has powerful
R&D group. we sentarwireless can customize OEM packing,logo printing as well as different
languages web interface baced on your requirements. What's important, we will
guarantee you the most reasonable price with best professional free support
services. In a word, choose sentar, choose win-win business!!!
